Place of Origin: | China |
Brand Name: | TOPER |
Certification: | CE |
Model Number: | GF105 |
Minimum Order Quantity: | Negotiable |
---|---|
Price: | Negotiable |
Packaging Details: | Export standard wooden package. |
Delivery Time: | 10-15 working days after receive your payment |
Payment Terms: | L/C, T/T, D/A, D/P, Western Union |
Supply Ability: | 60 sets per month for this tubular centrifuge |
Drum Diameter: | 105mm | Drum Volume: | 6L |
---|---|---|---|
Drum Rotate Speed: | 16300r/min | Separation Factor: | 15620G |
Water Flow Capacity: | 1200kg/h | Power: | 2.2kw |
Inner Dia.: | 105mm | Motor: | 380V,50hz Or As Require |
Material: | 304 Or 316L Stainless Steel | Warranty: | 1 Year |
Operation: | Semi-automatic | Application: | Liquid Liquid Solid Separation |

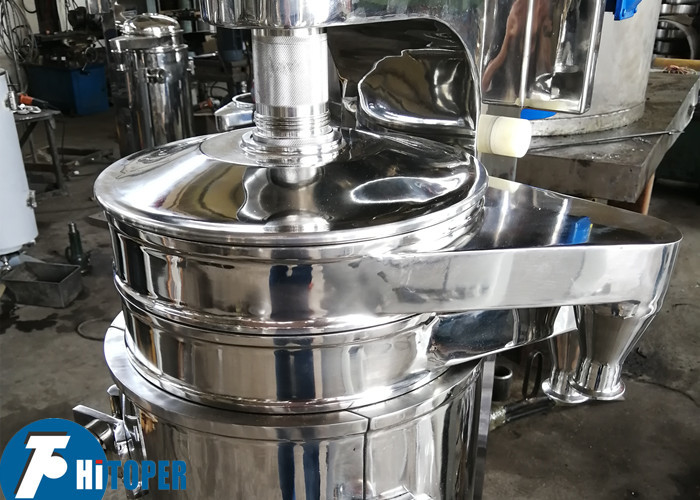

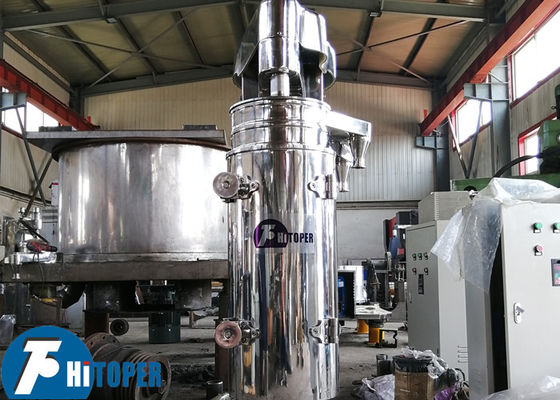

Liquid-liquid Separation Used Tubular Centrifuge with Drum Volume 6L
Tubular Centrifuges are designed to separate low percentages (<2%) of suspended solids which are between 1 and 0.001 microns in size, and to separate two immiscible liquids of differing densities. Tubular Centrifuges operate at high speed, generating up to 15620 gravities of centrifugal force, causing solids to collect inside the smooth bore of the stainless steel tube where they are easily recovered. Tubular Centrifuges are an excellent replacement for many traditional filter and membrane applications due to their high efficiency (virtually no product loss) and small footprint. Additionally, unlike traditional filters, they never require pre-coating or back-flushing and can never clog.
Typical Applications Of The Tubualr Centrifuge :
agglomerated proteins aluminum silicate animal cell fraction antibiotics bacteria beta naphtholate bio-fuel processing biomass harvesting bioremediation blood fractionation brewer’s yeasts brine sludge calcium carbonate calcium sulphate chromium hydroxide cocoa butter clarification cryoglobulin cutting oil dicalcium phosphate dye stuffs escherichia coli electroplating solutions enzyme harvesting ethanol stillage fat clarification fermentation fish oils flavorings food processing effluents fruit juice clarification fungus gamma globulin |
graphite guanidine nitrate gum arabic herbal extracts hydraulic oil ink insulin tissue iron oxide lactose nano particles paper mill effluent pathogens pharmaceuticals pigments polymers precious metals protein precipitate prothrombin refinery effluent salicylic acid sodium nitrite sodium sulphate spirillum spore collection tallow titanium dioxide varnish clarification vegetable oil refining virus recovery wine clarification yeast |
Working Principle Of The Tubualr Centrifuge :

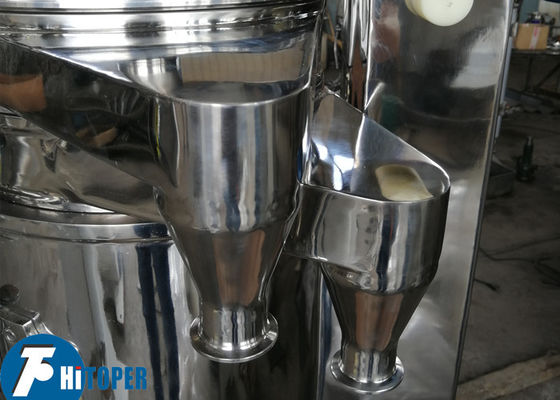

The suspension is fed through the bottom of the machine and introduced into the bowl which has one outlet at the top. The clarified liquid comes out from the top outlet and leaving the solids deposit on the bowl's wall. When the bowl full accumulated with solids, there will be no liquid comes out, the machine shall be power off. Solid particles with larger density deposit on the inner wall of drum, gradually forming a sediment layer, which needs artificial discharge after downtime, the clarified fluid to the upper part of the drum is dischrged from the drainage mounth.
Technical parameters Of The Tubualr Centrifuge:
Model |
Drum |
Nozzle diameter |
Productivity (water flow) (kg/h) |
Power |
Weight (kg) |
||||
Inner diameter |
Height |
Volume |
Rotary speed |
Separation factor |
|||||
GQ45 | 45 | 280 | 0.4 | 28000 | 90 | 2,3 | 100 | 0.55 | 90 |
GQ75 | 75 | 450 | 2.2 | 19000 | 300 | 4,6 | 600 | 1.5 | 300 |
GQ105 | 105 | 730 | 6 | 16300 | 480 | 6,8 | 1200 | 2.2 | 570 |
GQ125 | 125 | 730 | 7.4 | 15000 | 520 | 5,8,9 | 1500 | 3.0 | 610 |
GQ150 | 142 | 730 | 10 | 14000 | 550 | 8,10,12 | 2500 | 3.0 | 665 |
