| Place of Origin: | China |
| Brand Name: | TOPER |
| Certification: | CE |
| Model Number: | BY50/800-25U |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD14500/SET |
| Packaging Details: | Export standard wooden package. |
| Delivery Time: | 30 working days after receive your payment |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union |
| Supply Ability: | 50 sets per month for this cast iron filter press |
| Filter Area: | 50m2 | Filter Plate Size: | 800*800mm |
|---|---|---|---|
| Filter Chamber Volume: | 624L | Filter Plate And Number Number: | 38pcs |
| Frame Number: | 39pcs | Filtrating Pressure: | 0.6Mpa |
| Motor Power: | 2.2kw | Main Feature: | To Bear High Temperature To Be 350C. |
| Construction: | Cast Iron. | Weight: | 7650kg |
| Conditon: | New | Function: | Solid-liquid Separation |
| Structure: | Plate-frame Type | Voltage: | 380V/220V /400-450V/Customized |

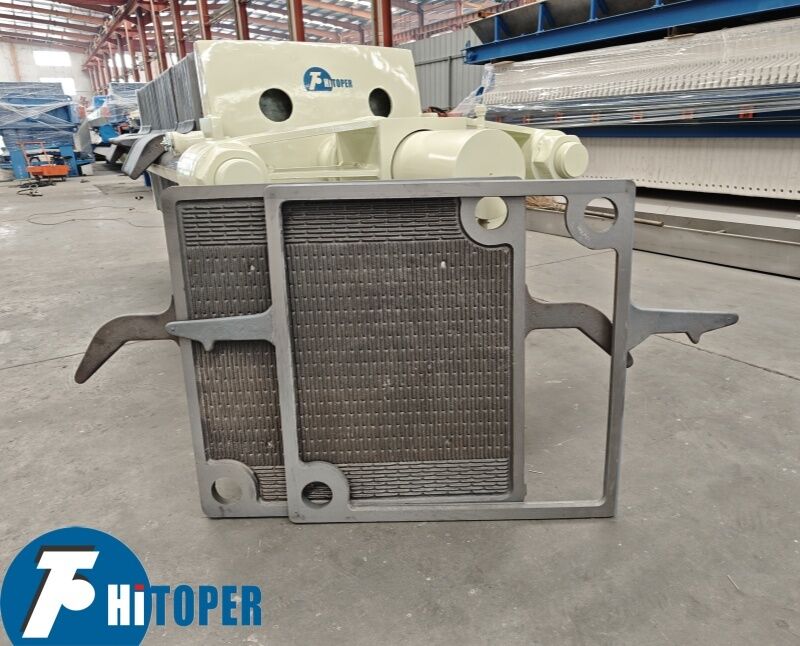

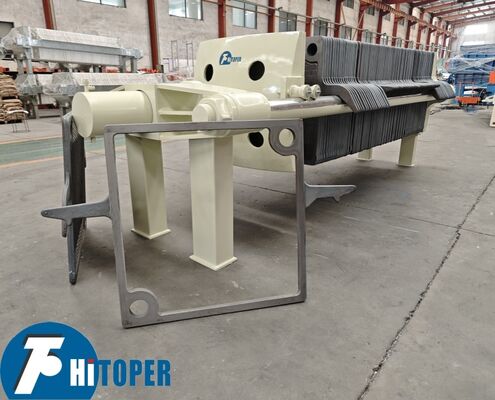

Cast iron plate filter press used for metallurgy,ceramics,petrochemical industries
Introduction of filter:
Frame part:
The frame part is the main body of the machine to support the filter mechanism and connect other parts. It is mainly composed of thrust plate, compression plate, cylinder block and main beam.
Filtering part:
It is composed of filter plates arranged in a certain order on the main beam and filter cloth sandwiched between the filter plates. The filter plates and filter cloth are arranged alternately to form several independent filter units.
Pull board part:
1 Automatic pull plate, the automatic pull plate part is composed of hydraulic motor, manipulator, transmission mechanism and suspension device.
2 Manually pull the board, and manually pull the board in turn for unloading.
Hydraulic part:
The hydraulic part is a power device that drives the compression plate to compress or loosen the filter plate, and is equipped with a plunger pump and various control valves.
Motor part:
The motor part is the control center of the entire system.
Brief introduction of Cast Iron Filter Press:
Cast iron plate and frame type filter press is made up og high quality cast iron or ductile iron.
It is used for high temperature filtraton materials,and high stength of filter plate can bear filtration pressure and long service life.
Widely used for liquid-solid separation in petrochemical,metallurgy,oil,ceramics industry etc.
1. Plate classify: cast iron plate
2. Working temperature:<350C
3. Filtration pressure:0.6Mpa-0.8Mpa
4 Squeezing pressure:1.0-1.3Mpa
Features:
1, The filter plate is made of cast iron, it can resist high temperature and high pressure, long service life.
2, Cast iron construction ensures its ultra strong resistance to high temperature, suitable for filtrating high temperature material with high strength cast iron filter plate, such as gelatin, edible oil.
3, Main beam is made of high quality carbon steel with sand blasting processing, not easy to out of shape, high intensity and corrosion resisting.
4, It compressing way is by manual Jack operation or by gear, simple and easy to use. 5, Compact structure, small volume, covering less space, saving cost.
Technical data of this cast iron filter press:
|
Type |
Filter area (m2) |
Filter plate size (mm) |
Cake thickness (mm) |
Chamber volume (L) |
Plate number (pcs) |
Frame number (pcs) |
Filtrating pressure (Mpa) |
Weight (kg) |
Dimensions (mm) L×W×H |
|
BQ1/320-25 |
1 |
320 x 320 |
25 |
13 |
4 |
5 |
1.0 |
380 |
1150×760×650 |
|
BQ2/320-25 |
2 |
25 |
9 |
10 |
500 |
1390×760×650 |
|||
|
BQ3/320-25 |
3 |
38 |
14 |
15 |
620 |
1750×760×650 |
|||
|
BQ4/450-25 |
4 |
450 x 450 |
25 |
51 |
9 |
10 |
0.8 |
1060 |
1780×760×650 |
|
BQ6/450-25 |
6 |
76 |
14 |
15 |
1160 |
2055×870×880 |
|||
|
BQ8/450-25 |
8 |
102 |
19 |
20 |
1360 |
235×870×880 |
|||
|
BQ12/450-25 |
12 |
152 |
29 |
30 |
1530 |
2785×870×880 |
|||
|
BQ16/450-25 |
16 |
203 |
39 |
40 |
1760 |
3305×870×880 |
|||
|
XQ4/450-25 |
4 |
450 x 450 |
25 |
51 |
9 |
|
1.0 |
960 |
1900×870×880 |
|
XQ6/450-25 |
6 |
76 |
14 |
1140 |
2030×870×880 |
||||
|
XQ8/450-25 |
8 |
102 |
19 |
1460 |
2280×870×880 |
||||
|
XQ12/450-25 |
12 |
152 |
29 |
1960 |
2780×870×880 |
||||
|
XQ16/450-25 |
16 |
203 |
39 |
2460 |
3280×870×880 |
||||
|
BQ20/630-25 |
20 |
630 x630 |
25 |
298 |
24 |
25 |
0.6 |
3300 |
2750×1150×1100 |
|
BQ30/630-25 |
30 |
452 |
37 |
38 |
4500 |
3220×1150×1100 |
|||
|
BQ40/630-25 |
40 |
295 |
49 |
50 |
5600 |
3870×1150×1100 |
|||
|
BY20/630-25 |
20 |
298 |
24 |
25 |
3700 |
2960×1150×1100 |
|||
|
BY30/630-25 |
30 |
452 |
37 |
38 |
5000 |
3610×1150×1100 |
|||
|
BY40/630-25 |
40 |
595 |
49 |
50 |
6100 |
4210×1150×1100 |
|||
|
XQ20/630-25 |
20 |
25 |
248 |
24 |
|
0.8 |
3400 |
2600×1100×1100 |
|
|
XQ30/630-25 |
30 |
377 |
37 |
4700 |
3250×1100×1100 |
||||
|
XQ40/630-25 |
40 |
496 |
49 |
5900 |
3900×1100×1100 |
||||
|
XY20/630-25 |
20 |
248 |
24 |
|
3800 |
2950×1100×1100 |
|||
|
XY30/630-25 |
30 |
377 |
37 |
5200 |
3580×1100×1100 |
||||
|
XY40/630-25 |
40 |
496 |
49 |
6400 |
4180×1100×1100 |
FILTER PRESS SERIES:
Filter presses can be divided into plate and frame type and are used for solidliquid separation of various suspending liquid in intermittent pressure filtration. Filter plates are pressed by pressing devices and suspending liquid is pumped into the filter chamber. Solid particles and separated through filter cloth. The products are simple in structure but good in separating effects, convenient in use, and widely applicable to mining, metallurgy, petroleum, chemical, medicine, textile, printing and dyeing, paper making, foodstuff, alcohol, inorganic salt, coal washing, dyestuff and sewage treatment industries.
Toper main filter and centrifuge separator machine :
1. Program-controlled automatic filter press
2. Membrane filter press
3. Hydraulic compress filter press
4. Mechanical compress filter press
5. Jack filter press
6. Cast iron plate and frame/chamber filter press
7. Stainless steel plate and frame filter press
8. Round plate filter press
9. Cotton cake filter press
10. Cardboard filter press
11. DY belt filter press
12. DYX high pressure belt filter press
13. DNY rotary drum thickning/dehydrating belt filter press
14. Triple-belt thickning and dehydrating filter press
15. SS type three-foot upper discharge centrifuge
16. SD type three-foot and filter bag hoist discharge centrifuge
17. PD type filter bag hoist discharge centrifuge
18. Centrifuge of up discharge, three foot, clean series SSB, SB
19. SX type manual top discharge centrifuge
20. PS type manual top discharge centrifuge
21. SGZ type automatic scraper bottom discharge centrifuge
22. PGZ type scarper bottom discharge centrifuge
23. LW series decanter centrifuge
24. Tubular centrifuge
25. Multi-layer stainless steel frame filter
26. Bag filter
27. Diatomite filter
28. Filter plate
29. Filter cloth
30. Vacuum disc filter
How to order filter press:
1. Select the model,plate and fram material,pressing mode and filtering form by considering the filter press introduction and parameters.
2. According to your products,select open flow and close flow ,washable or non-washable,and specify the conditions in the contract.
3. The unit is provided without pump.To order the unit complete pumps,state it in the contract.
4. Our company can supply non-standard model to meet your special demands.
