1.Brief introduction:

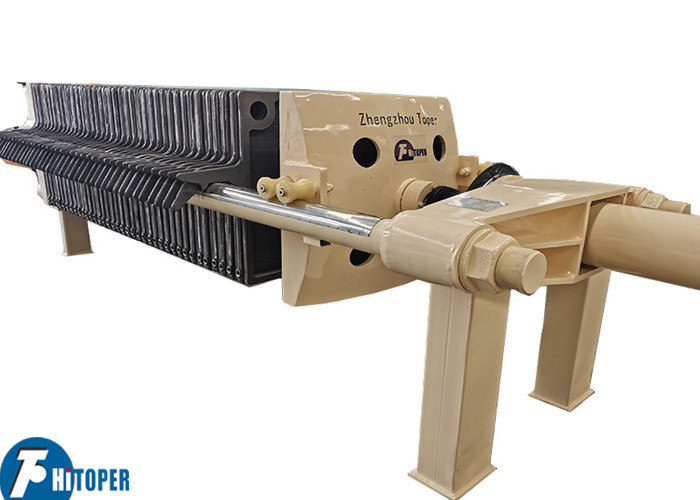

As the name implies, the filter press is made of high-quality cast iron and is suitable for filtering high-temperature materials. It consists of a series of horizontally designed chambers arranged in parallel. The chambers consist of stacked filter plates, each with filter cloth or other suitable filter media. The plate stack is usually compressed by a hand wheel or electric hydraulics, and the filter cloth is used as a gasket between the individual chambers.

Cast iron filter presses are available in both manual and automatic types. Since cast iron filter plates are very heavy, we would recommend an automatic cast iron filter press if the size of the filter plate exceeds 630mm. It is recognized in various fields for its high strength, reliability and long service life.

2.Working principle:

Using filter cloth on both sides of the pressure difference, force the product through the filter cloth in the vast majority of the water, flowing outside the body, and the material is blocked in the filter cake is formed interior to filtration is achieved. Since the filter cloth on both sides of the process there is a relatively large pressure difference and improve the filtration rate reduces the moisture content of the filter cake, and using a special filter cloth, such pure clear filtrate, filtering effect is much better than vacuum filtration confidential.

3.Features of Cast Iron Filter Press

1, The filter plate of plate and frame filter press machine is made of cast iron, plate and frame filter press/oil filter machine can resist high temperature and high pressure,long service life.

2, Main beam of plate and frame filter press machine is made of high quality carbon steel with sand blasting processing, not easy to out of shape, high intensity and corrosion resisting.

3, plate and frame filter press machine compressing way is by hydraulic compression, simple and easy to operate, saving labor.

4, Simple in structure, good filtering effect,easy to change filter cloth,easy operation.

5, Service and maintenance requirements are low.

4. Application of the cast iron filter press :

Concentrate processing, industrial minerals, metallurgical processing, chemical processing, food and pharmaceutical industries, waste oil recovery, etc.

5.Technical data of this cast iron filter press,

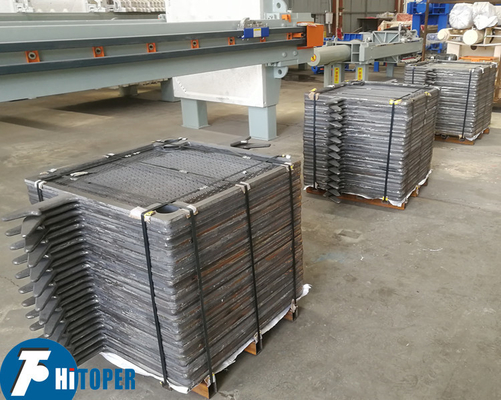

Packaging & Shipping

Reliable and fast package and variety kinds of transportation way to insure you get the goods in time and safely.

FILTER PRESS SERIES:

Filter presses can be divided into plate and frame type and are used for solidliquid separation of various suspending liquid in intermittent pressure filtration. Filter plates are pressed by pressing devices and suspending liquid is pumped into the filter chamber. Solid particles and separated through filter cloth. The products are simple in structure but good in separating effects, convenient in use, and widely applicable to mining, metallurgy, petroleum, chemical, medicine, textile, printing and dyeing, paper making, foodstuff, alcohol, inorganic salt, coal washing, dyestuff and sewage treatment industries.

How to order filter press:

1. Select the model,plate and fram material,pressing mode and filtering form by considering the filter press introduction and parameters.
2. According to your products,select open flow and close flow ,washable or non-washable,and specify the conditions in the contract.
3. The unit is provided without pump.To order the unit complete pumps,state it in the contract.
4. Our company can supply non-standard model to meet your special demands.
