High Tmperature Material Cast Iron Plate And Frame Filter Press Low Cake Moisture

High Tmperature Material Cast Iron Plate And Frame Filter Press Low Cake Moisture

    • High Tmperature Material Cast Iron Plate And Frame Filter Press Low Cake Moisture
    • High Tmperature Material Cast Iron Plate And Frame Filter Press Low Cake Moisture
  • High Tmperature Material Cast Iron Plate And Frame Filter Press Low Cake Moisture

    Product Details:

    Place of Origin: China
    Brand Name: TOPER
    Certification: CE
    Model Number: BY50/800-25U

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: USD14500/SET
    Packaging Details: Export standard wooden package.
    Delivery Time: 30 working days after receive your payment
    Payment Terms: L/C, T/T, D/A, D/P, Western Union
    Supply Ability: 50 sets per month for this cast iron filter press
    Contact Now
    Detailed Product Description
    Filter Area: 50m2 Filter Plate Size: 800*800mm
    Filter Chamber Volume: 624L Filter Plate And Number Number: 38pcs
    Frame Number: 39pcs Filtrating Pressure: 0.6Mpa
    Motor Power: 2.2kw Main Feature: To Bear High Temperature To Be 350C.
    Construction: Cast Iron. Weight: 7650kg
    Function: Solid-liquid Separation Application: Petrochemical,metallurgy,oil,ceramics Industry
    Conditon: New Voltage: 380V/220V /400-450V/Customized

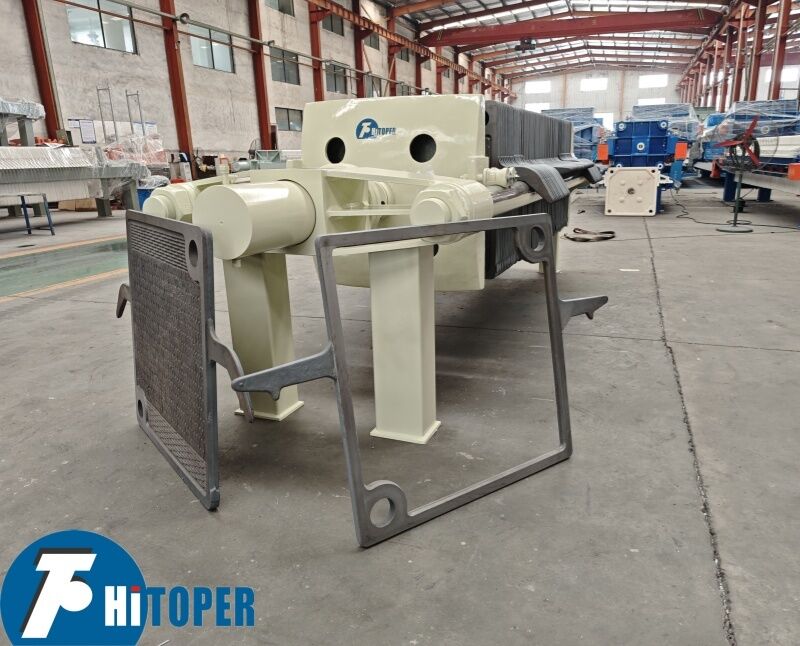

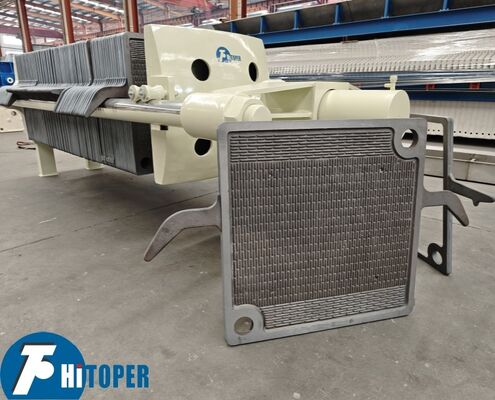

    High Tmperature Material Cast Iron Plate And Frame Filter Press Low Cake Moisture



    1.Brief introduction:

    Cast iron filter with high-quality cast iron or ductile iron precision casting, filter plates having a high strength to withstand filtration pressure, high temperature, filtering speed, low cake moisture, discharge, long life and other characteristics. Suitable viscosity, high temperature, low moisture requirements of the ceramic industry, petrochemical, oil, machine oil and other products decolorization filter.


    2.Working principle:

    Using filter cloth on both sides of the pressure difference, force the product through the filter cloth in the vast majority of the water, flowing outside the body, and the material is blocked in the filter cake is formed interior to filtration is achieved. Since the filter cloth on both sides of the process there is a relatively large pressure difference and improve the filtration rate reduces the moisture content of the filter cake, and using a special filter cloth, such pure clear filtrate, filtering effect is much better than vacuum filtration confidential.


    3.Application industry:

    Cast iron plate oil filter press, cooking oil filter machine is made of high quality steel and cast iron, which can bear high pressure, high temperature, filtration speed, low cake moisture, unloading fast and so on. Best suitable for Sunflower oil,olive oil,palm oil,cosmetic oil industry.


    4.Technical data of this cast iron filter press,


    Type Filter area (m2) Filter plate size (mm) Cake thickness (mm) Chamber volume (L) Plate number (pcs) Frame number (pcs) Filtrating pressure (Mpa) Weight (kg)



    BQ1/320-25 1 320 x 320 25 13 4 5 1.0 380 1150×760×650
    BQ2/320-25 2 25 9 10 500 1390×760×650
    BQ3/320-25 3 38 14 15 620 1750×760×650
    BQ4/450-25 4 450 x 450 25 51 9 10 0.8 1060 1780×760×650
    BQ6/450-25 6 76 14 15 1160 2055×870×880
    BQ8/450-25 8 102 19 20 1360 235×870×880
    BQ12/450-25 12 152 29 30 1530 2785×870×880
    BQ16/450-25 16 203 39 40 1760 3305×870×880
    XQ4/450-25 4 450 x 450 25 51 9   1.0 960 1900×870×880
    XQ6/450-25 6 76 14 1140 2030×870×880
    XQ8/450-25 8 102 19 1460 2280×870×880
    XQ12/450-25 12 152 29 1960 2780×870×880
    XQ16/450-25 16 203 39 2460 3280×870×880
    BQ20/630-25 20 630 x630 25 298 24 25 0.6 3300 2750×1150×1100
    BQ30/630-25 30 452 37 38 4500 3220×1150×1100
    BQ40/630-25 40 295 49 50 5600 3870×1150×1100
    BY20/630-25 20 298 24 25 3700 2960×1150×1100
    BY30/630-25 30 452 37 38 5000 3610×1150×1100
    BY40/630-25 40 595 49 50 6100 4210×1150×1100
    XQ20/630-25 20 25 248 24   0.8 3400 2600×1100×1100
    XQ30/630-25 30 377 37 4700 3250×1100×1100
    XQ40/630-25 40 496 49 5900 3900×1100×1100
    XY20/630-25 20 248 24   3800 2950×1100×1100
    XY30/630-25 30 377 37 5200 3580×1100×1100
    XY40/630-25 40 496 49 6400 4180×1100×1100



    Packaging & Shipping

    Reliable and fast package and variety kinds of transportation way to insure you get the goods in time and safely.




    Filter presses can be divided into plate and frame type and are used for solidliquid separation of various suspending liquid in intermittent pressure filtration. Filter plates are pressed by pressing devices and suspending liquid is pumped into the filter chamber. Solid particles and separated through filter cloth. The products are simple in structure but good in separating effects, convenient in use, and widely applicable to mining, metallurgy, petroleum, chemical, medicine, textile, printing and dyeing, paper making, foodstuff, alcohol, inorganic salt, coal washing, dyestuff and sewage treatment industries.



    All products of Toper:

    1. Program-controlled automatic filter press

    2. Membrane filter press

    3. Hydraulic compress filter press

    4. Mechanical compress filter press

    5. Jack filter press

    6. Cast iron plate and frame/chamber filter press

    7. Stainless steel plate and frame filter press

    8. Round plate filter press

    9. Cotton cake filter press

    10. Cardboard filter press

    11. DY belt filter press

    12. DYX high pressure belt filter press

    13. DNY rotary drum thickning/dehydrating belt filter press

    14. Triple-belt thickning and dehydrating filter press

    15. SS type three-foot upper discharge centrifuge

    16. SD type three-foot and filter bag hoist discharge centrifuge

    17. PD type filter bag hoist discharge centrifuge

    18. Centrifuge of up discharge, three foot, clean series SSB, SB

    19. SX type manual top discharge centrifuge

    20. PS type manual top discharge centrifuge

    21. SGZ type automatic scraper bottom discharge centrifuge

    22. PGZ type scarper bottom discharge centrifuge

    23. LW series decanter centrifuge

    24. Tubular centrifuge

    25. Multi-layer stainless steel frame filter

    26. Bag filter

    27. Diatomite filter

    28. Filter plate

    29. Filter cloth

    30. Vacuum disc filter


    How to order filter press:

    1. Select the model,plate and fram material,pressing mode and filtering form by considering the filter press introduction and parameters.
    2. According to your products,select open flow and close flow ,washable or non-washable,and specify the conditions in the contract.
    3. The unit is provided without pump.To order the unit complete pumps,state it in the contract.
    4. Our company can supply non-standard model to meet your special demands.
