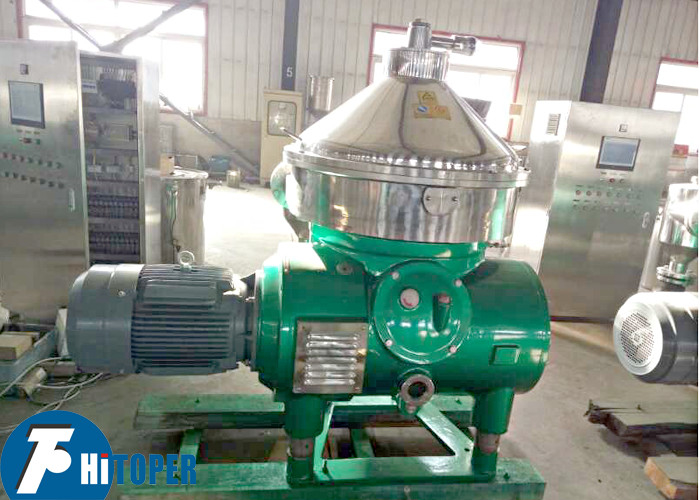

High Speed Industrial Disc Bowl Centrifuge for Avocado Oil Purification

High Speed Industrial Disc Bowl Centrifuge for Avocado Oil Purification

    • High Speed Industrial Disc Bowl Centrifuge for Avocado Oil Purification
    • High Speed Industrial Disc Bowl Centrifuge for Avocado Oil Purification
    • High Speed Industrial Disc Bowl Centrifuge for Avocado Oil Purification
    • High Speed Industrial Disc Bowl Centrifuge for Avocado Oil Purification
  • High Speed Industrial Disc Bowl Centrifuge for Avocado Oil Purification

    Product Details:

    Place of Origin: China
    Brand Name: TOPER
    Certification: CE
    Model Number: DHC500

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: Negotiable
    Packaging Details: Export standard wooden package.
    Delivery Time: 40 working days after receive your payment
    Payment Terms: L/C, T/T, D/A, D/P, Western Union
    Supply Ability: 30 sets per month for this disc centrifuge
    Contact Now
    Detailed Product Description
    Feeding Way: By Pump Automatically Discharge Way: Discharege Solid Residues Automatically
    Rotating Speed: 6600rpm Centrifuge Dimension: 1780x1500x1900mm
    Centrifuge Weight: 1720kg Centrifuge Function: Purification, Separation,sedimentation
    Processing Capacity: 0-8000L/h Motor Power: 15Kw
    Control Way: Frequency Conversion Control Cabinet



    About industrial automatic settling centrifuge used in solid liquid separation



    Industrial automatic settling centrifuge Disc separator is a kind of advanced equipment with high efficiency, large output and high degree of automation.It is suitable for the separation of suspension with low solid content and immiscible liquid with small specific gravity difference. It is a necessary equipment for many industries such as pharmaceutical, food, chemical, biological products and beverage products.Its principle is according to the centrifugal force to make the material of different gravity, the force is different, so as to achieve the purpose of separation

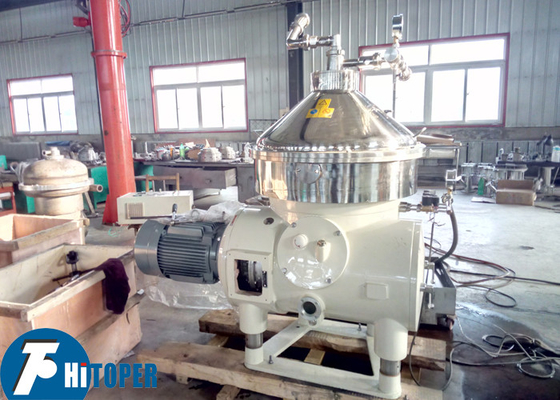

    High Speed Industrial Disc Bowl Centrifuge for Avocado Oil Purification





    The features of automatic settling centrifuge Disc separator



    1.The bowl of the centrifuge can be made of stainless steel 304 or 316

    2.The centrifuge is suitable for the fluid with solid content less than 3%,the solid size smaller than 0.5mm.one kind fine separation equipment.

    3.The feeding and discharge of centrifuge is automatic

    4.The centrifuge can be operated by Frequency conversion control cabinet.

    5.The rotating speed can be 4500-8212rpm ,the settlement area can be 17.2×107-90×107cm2,the processing capacity can be 1250L/h-20000L/h





    The working principle of high speed stainless steel bowl disc centrifuge used for avocado oil purification



    Separation takes place inside a rotating bowl. The feed is introduced to the rotating centrifuge bowl from the top via a
    stationary inlet pipe (1),and is accelerated in the distributor(2),which was specially designed to ensure smooth acceleration of the feed liquid(4). Leaving the distributor, the feed enters the disc stack(3). The separation into liquid-liquid-solid takes place between the discs, with the oil phase moving through the disc stack to the centre. When it reaches the centre, it is discharged through hole (5) and ejected into the collecting frame. The water and heavy solid separated from the oil move to the
    periphery, and the water flows via channels in the top disc(6) to the paring chamber, where it is pumped out of the rotor by means of a built-in paring disc(7).During purification, hot water is fed into the inlet of the bowl before the process liquid is
    introduced. The water forms a seal around the outer edge of the top disc. The solid collect in the periphery where they are
    discharged intermittently via the centrifuge cyclone. The solid are discharged by means of a hydraulic system, which forces the sliding bowl bottom(8)to drop down at preset suitable intervals, thus opening the solid ports at the bowl periphery

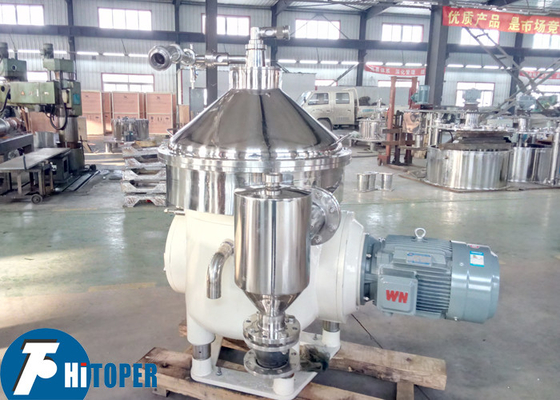

    High Speed Industrial Disc Bowl Centrifuge for Avocado Oil Purification

    Application of disc centrifuge

    Disc centrifuge is the core equipment is purification and extraction.Water and solid will be removed by disc centrifuge , get the pure oil and ingredients .The disc centrifuge are widely used in food ,oil,mineral,medicine,milk etc purification and extraction.

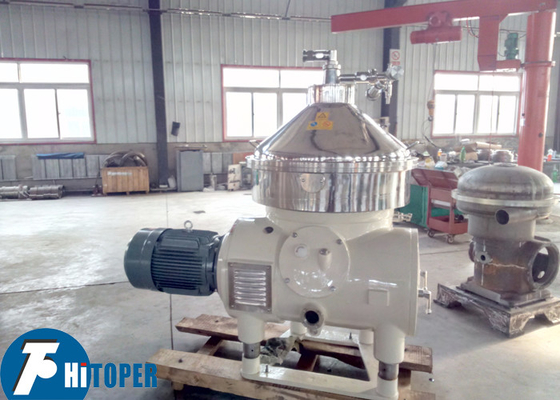

    High Speed Industrial Disc Bowl Centrifuge for Avocado Oil Purification





    This disc centrifuge technical parameters.



    Item DHC300 DHC400 DHC500 DHC550 DHC730

    Drum inner diameter
    (mm)

    300 400 500 550 730
    Drum speed (r/min) 7300 7056 6600 6200 4500
    Settlement area (cm²) 17.2×10^7 28.5×10^7 35×10^7 67×10^7 90×10^7

    Input capacity for water(t/h)

    2 5 10 15 35
    Motor power (kw) 4.0 7.5 11 18.5

    55
