| Place of Origin: | China |
| Brand Name: | TOPER |
| Certification: | CE |
| Model Number: | DHC500 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export standard wooden package. |
| Delivery Time: | 40 working days after receive your payment |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union |
| Supply Ability: | 30 sets per month for this disc centrifuge |
| Speed: | 6600r/min | Dram Diameter: | 500mm |
|---|---|---|---|
| Settlement Area: | 35×10^7cm2 | Input Capacity For Water: | 10t/h |
| Motor Power: | 11kw | Control Method: | PLC+Frequency Converter |
| Funtion: | Solid-liquid;liquid-liquid-solid Separation | Discharge Method: | Automatic Slagging |
| Feeding Method: | Pump Feeding Or Manual Or Other | Automatic Level: | First Level |
| Voltage: | 380V/220V /400-450V/Customized | Application: | Food,beverage,chemcial,mineral,pharmacy,biological Etc. |
| Operation Type: | Continuous Automatic Working | Certificate: | CE |
| Condition: | New | ||
| Highlight: | disk stack centrifuge,industrial centrifuge machine |
||

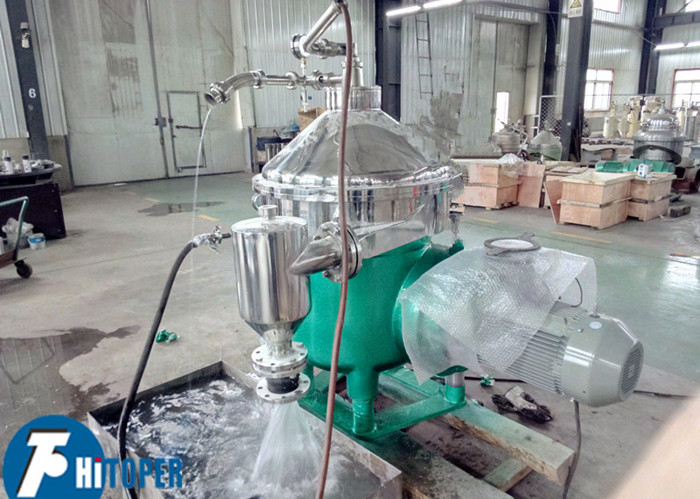

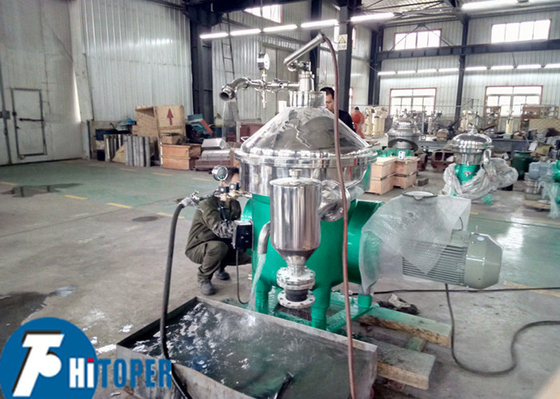

Chemical Industry Wastewater Treatment Stainless Steel Bowl Disc Centrifuge Automatic Operation
The disc centrifuge is a high efficiency, large output, advanced automation equipment.suitable for low solid content slurry, a smaller proportion of poor separation of immiscible liquids, pharmaceutical, food, chemical, biological products, beverage products and other necessary equipment industries.
According to the separation mode can be divided into three-phase separator (liquid - liquid - solid) disc separatoand two-phase separation (liquid - solid) disc separa.
While the disc type automatic slag separator in different ways based on, can be divided into manual type automatic slagging disc separator and fully PLC controlled automatic slagging disc separator
According to the disc separation inside the slag film in different ways, disc separator can be divided into piston slag disc separator with nozzle slag separator, and can be selected according to the characteristics of slag material way.
Features of the disc centrifuge separator :
This disc centrifuge separation factor is high, strong separation ability, the model can realize manual slagging or PLC program control time automatic slag, reducing labor intensity, improve work efficiency, hydraulic coupling to replace the traditional friction plate clutch , On-site non-dust clean white health.
Depending on the need to use automatic or manual operation. Can also achieve long-range self-control operation. Machine structure is simple, easy maintenance.
Working principle of the disc centrifuge :
Thermal coupling through the drum motor drive to do high-speed rotation around the main axis, the liquid feed pipe from the top center of flow to the bottom of the drum, the disc surface diversion hole trend to drum wall, the centrifugal force field, compared with liquid weight of solid phase formation of sediment sink to the drum wall, light liquid pumps to the heart by the light liquid exit discharge.Heavy liquid within the cone along the disc tend to drum wall, then up to the heavy liquid flows through the heart pump discharges them from the heavy liquid, thus completing the heavy liquid and light liquid separation.
This disc centrifuge technical parameters.
| Item | DHC300 | DHC400 | DHC500 | DHC550 | DHC730 |
|
Drum inner diameter |
300 | 400 | 500 | 550 | 730 |
| Drum speed (r/min) | 7300 | 7056 | 6600 | 6200 | 4500 |
| Settlement area (cm²) | 17.2×10^7 | 28.5×10^7 | 35×10^7 | 67×10^7 | 90×10^7 |
|
Input capacity for water |
2 | 5 | 10 | 15 | 35 |
| Motor power (kw) | 4.0 | 7.5 | 11 | 18.5 |
55 |
Packing and delivery :
We provide you reliable and fast package and variety kinds of transportation way to insure you get the goods in time and safely.
