| Place of Origin: | China |
| Brand Name: | TOPER |
| Certification: | CE |
| Model Number: | XY30/630-30U |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Best factory price |
| Packaging Details: | Export standard wooden package. |
| Delivery Time: | 10-15 working days after receive your payment |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union |
| Supply Ability: | 200 sets per month for this industrial filter press |
| Filtration Area: | 30 Square Meter | Plate Size: | 630*630mm |
|---|---|---|---|
| Filter Chamber Volume: | 452L | Filter Plate Number: | 37pcs |
| Filtrating Pressure: | 0.6Mpa | Cake Discharge: | Two Workers By Hand Operation |
| Motor Power: | 2200w | Compress Type: | Hydraulic System |
| Voltage: | 380V/220V /400-450V/Customized | Automatic Grade: | Semi-Automatic |
| Application: | Food,beverage,chemcial,mineral,pharmacy,biological Etc. | Type: | Chamber Filter |
| Function: | Dehydration,separaiton And Concentration | Conditon: | New |

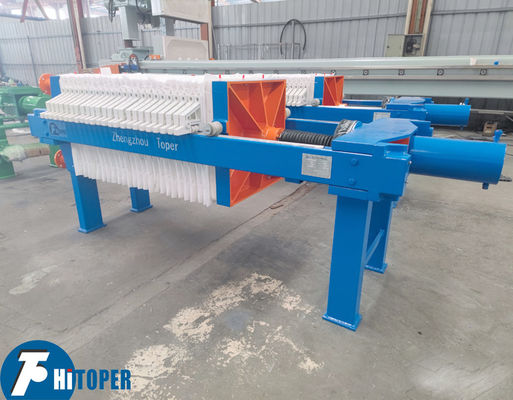

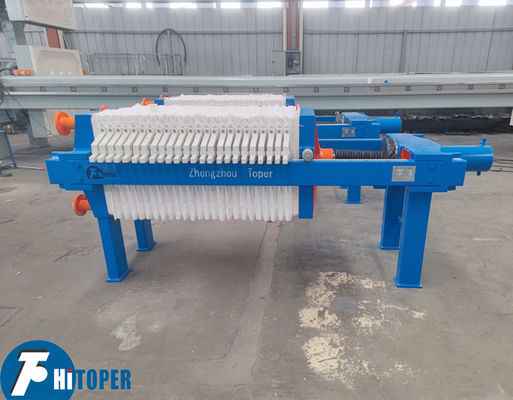

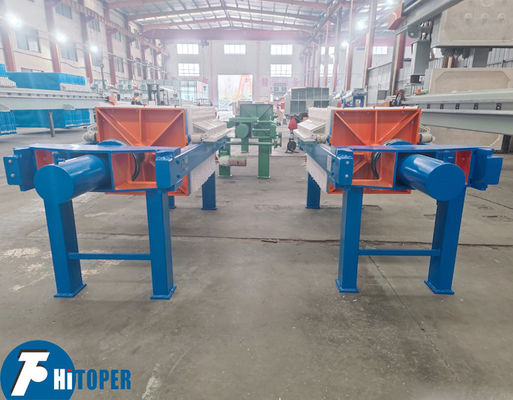

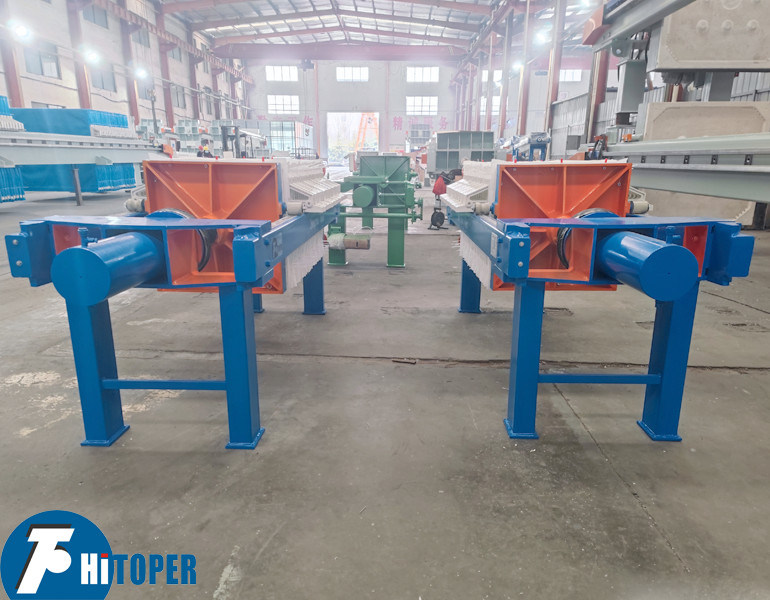

630mm Plate CE Certificate Industrial Fitler Press Filter Area Of 30m2, 0.6Mpa High Pressure Filter Machine
This filter press is widely used in,
This filter press equipment is widely used in anchor drilling and cutting slurry, coal washing, mining, alcohol, petroleum, chemical, dyestuff, metallurgy, medicing, foodstuff, textile, printing and dyeing, paper makin and seweage treatment industries. And this mud filter press with widey capacity ranges, high automatic degree and lower coal cake moisture has received good reputation from our customers.
Hydraulic station of this filter press equipment: 1. Hydraulic unit, carbon steel bending welding and sealing. A.Air filters external oil pumps of Shanghai Dazhong brand, with a better cooling effect and easy maintenance B.Hydraulic valves of Shanghai Huadao brand. C.High pressure oil pipe (36Mpa, 1.5m) and low pressure oil pipe (22.4Mpa, 2m), China standard soft connection.
2. Hydraulic cylinder, welded using material 27SiMn seamless steel pipe, Inner diameter and stroke is Φ120X400, pressing pressure is 18-20MPa.
3. Piston rod, Medium-frequency hardening with 45# steel, the surface hardness can be HRC48-50, and there is a protect cover outside.
Main Beam of this industrial filter press: Material of high quality carbon steel Q345 ( Length & width & thickness, 120×60×6mm rectangular tube), box welded structural design, automatic submerged arc welding process with weld smooth and beautiful. Still processed with sand blasting to remove rust and oxide skin, then painted by epoxy primer to get higher intensity and corrosion resistance, together with last protection of acrylic polyester anti-corrosion paint spraying.
Basic technical parameter of this filter press equipment:
| Type |
Filter area (m2) |
Filter plate size (mm) |
Filter cake thickness (mm) |
Filter chamber volume (L) |
Filter plate number (PCS) |
Filtrating pressure (MPa) |
Motor power (KW) |
Weight (Kg) |
Dimension (mm) (L×W×H) |
| XY4/450-30U | 4 | 450×450 | 30 | 60 | 9 | 0.6 | 2.2 | 860 | 1950×700×900 |
| XY6/450-30U | 6 | 91 | 14 | 910 | 2200×700×900 | ||||
| XY8/450-30U | 8 | 121 | 19 | 960 | 2450×700×900 | ||||
| XY10/450-30U | 10 | 151 | 24 | 1010 | 2700×700×900 | ||||
| XY12/450-30U | 12 | 182 | 29 | 1060 | 2950×700×900 | ||||
| XY15/450-30U | 15 | 225 | 36 | 1130 | 3300×700×900 | ||||
| XY16/450-30U | 16 | 243 | 39 | 1160 | 3450×700×900 | ||||
| XY15/630-30U | 15 | 630×630 | 226 | 18 | 1725 | 2640×900×1100 | |||
| XY20/630-30U | 20 | 297 | 24 | 1993 | 3940×900×1100 | ||||
| XY30/630-30U | 30 | 452 | 37 | 2360 | 3590×900×1100 | ||||
| XY40/630-30U | 40 | 595 | 49 | 2788 | 4300×900×1100 | ||||
| XY30/800-30U | 30 | 800×800 | 460 | 23 | 2170 | 3700×1400×1300 | |||
| XY40/800-30U | 40 | 595 | 30 | 2450 | 4300×1400×1300 | ||||
| XY50/800-30U | 50 | 748 | 38 | 2700 | 4840×1400×1300 | ||||
| XY60/800-30U | 60 | 902 | 46 | 2980 | 5440×1400×1300 | ||||
| XY70/800-30U | 70 | 1056 | 54 | 3250 | 6040×1400×1300 | ||||
| XY30/870-30U | 30 | 870×870 | 460 | 23 | 2580 | 3180×1200×1300 | |||
| XY40/870-30U | 40 | 595 | 30 | 2925 | 3570×1200×1300 | ||||
| XY50/870-30U | 50 | 748 | 38 | 3318 | 4110×1200×1300 | ||||
| XY60/870-30U | 60 | 902 | 46 | 3712 | 4550×1200×1300 | ||||
| XY70/870-30U | 70 | 1056 | 54 | 4106 | 4990×1200×1300 | ||||
| XY80/870-30U | 80 | 1210 | 62 | 4561 | 5430×1200×1300 |
Different type of Toper's filter press machine as below:
1. Program-controlled automatic filter press
2. Membrane filter press
3. Hydraulic compress filter press
4. Mechanical compress filter press
5. Jack filter press
6. Cast iron plate and frame/chamber filter press
7. Stainless steel plate and frame filter press
8. Round plate filter press
9. Cotton cake filter press
10. Cardboard filter press
11. DY belt filter press
12. DYX high pressure belt filter press
13. DNY rotary drum thickning/dehydrating belt filter press
14. Triple-belt thickning and dehydrating filter press
