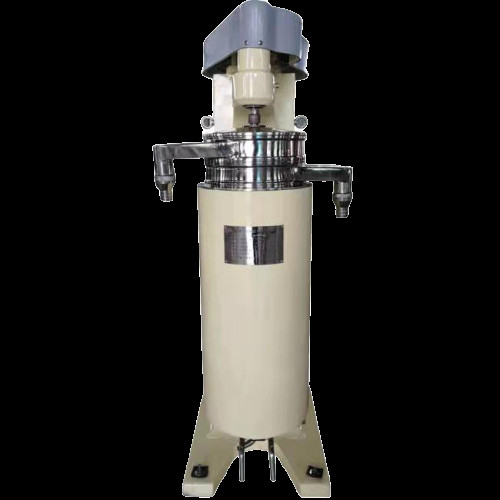

16000r/Min Industrial Tubular Centrifuge,Stainless steel Separator For Solid Liquid Separation

16000r/Min Industrial Tubular Centrifuge,Stainless steel Separator For Solid Liquid Separation

    • 16000r/Min Industrial Tubular Centrifuge,Stainless steel Separator For Solid Liquid Separation
    • 16000r/Min Industrial Tubular Centrifuge,Stainless steel Separator For Solid Liquid Separation
  • 16000r/Min Industrial Tubular Centrifuge,Stainless steel Separator For Solid Liquid Separation

    Product Details:

    Place of Origin: China
    Brand Name: TOPER
    Certification: CE
    Model Number: GF125

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: Negotiable
    Packaging Details: Export standard wooden package.
    Delivery Time: 10-15 working days after receive your payment
    Payment Terms: L/C, T/T, D/A, D/P, Western Union
    Supply Ability: 60 sets per month for this tubular centrifuge
    Contact Now
    Detailed Product Description
    Drum Diameter: 125mm Drum Volume: 7.4L
    Drum Rotate Speed: 16000r/min Separation Factor: 18000
    Water Flow Capacity: 2000kg/h Power: 3.0kw
    Inner Dia.: 125mm Motor: 380V,50hz Or As Require
    Material: Stainless Steel Warranty: 12 Months
    Highlight:

    liquid solid separation centrifuge

    ,

    tubular bowl centrifuge

    16000r/Min Industrial Tubular Centrifuge,Stainless steel Separator For Solid Liquid Separation



    Tubular Centrifuges are designed to separate low percentages (<2%) of suspended solids which are between 1 and 0.001 microns in size, and to separate two immiscible liquids of differing densities. Tubular Centrifuges operate at high speed, generating up to 20,000 gravities of centrifugal force, causing solids to collect inside the smooth bore of the stainless steel tube where they are easily recovered.



    Tubular Centrifuges are an excellent replacement for many traditional filter and membrane applications due to their high efficiency (virtually no product loss) and small footprint. Additionally, unlike traditional filters, they never require pre-coating or back-flushing and can never clog.





    Features of tubular centrifuge

    • The enclosure shape is of square shape and round shape.
    • Stainless steel 304 is used for the surface wrapping of the enclosure.
    • Stainless steel SS304 for the parts in contact with the suspension.Also can provide 316L material as demand .
    • The enclosure body with door-opening design is convenient for disassembly and assembly of the bowl, reduces labor intensity and the separation effect is not affected.
    • Optional control cabinet, start by inverter, adjustable speed, reduce the starting current and the degree of damage to the transmission components and wear parts, and improve the service life of the equipment and the motor.
    • The control cabinet is optionally equipped with PLC and touch screen to display the speed and temperature.

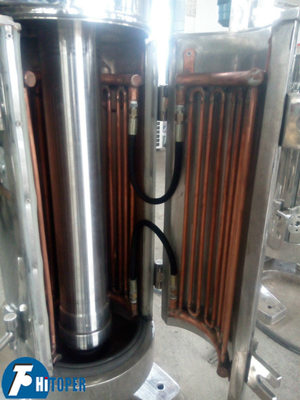

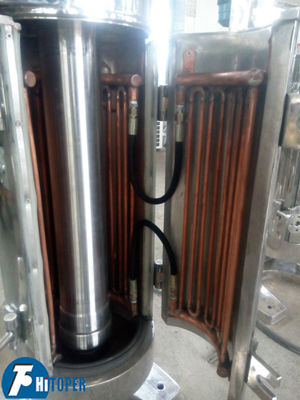

    • According to the field of use, explosion-proof type and cooling type with cooling coil are available.
    • Mobile integrated base is available.


    Application



    Tubular Separator is mainly used for separating all kinds of suspension which is difficult to be separated, especially suitable for separation of solid-liquid suspension with light concentration, heavy viscosity, fine particles and very small differential gravity of the two phases.

    • Pharmacy
    • Chemical
    • Food Industries
    • Edible Oil Industries
    • Printing Ink
    • Bacteria Cell Separation
    • Paint Industries
    • Gum Clarification
    • Biodiesel Plants
    • Beverage Industry
    • Biomass Separation





    Technical parameters:



    Model Drum Nozzle diameter
    (mm)

    Productivity

    (water flow)

    (kg/h)

    Power
    (KW)
    Weight
    (kg)
    Inner diameter
    (mm)
    Height
    (mm)
    Volume
    (L)
    Rotary speed
    (r/min)

    Separation

    factor

    GF45 45 280 0.4 28000 19800 2,3 100 0.55 90
    GF75 75 450 2.2 19000 15700 4,6 600 1.5 300
    GF105 105 730 6 16300 15620 6,8 1200 2.2 570
    GF125 125 730 7.4 15000 18000 5,8,9 1500 3.0 610
    GF150 142 730 10 14000 15700 8,10,12 2500 3.0 665






    Characteristics



    The clarification effect is achieved by separating the solid phase impurities in the liquid by the machine. It is used to separate various suspensions that are difficult to separate. It is especially suitable for solid-liquid separation with large concentration and small viscosity, fine solid phase particles and small solid-liquid gravity. The solid phase should be taken out after shutdown.

    The main disadvantage of tubular centrifuges is intermittent operation. The drum volume is small. It is necessary to shut down frequently to remove sediment. Therefore, it is necessary to strengthen the separation performance of the tubular centrifuge by strengthening separation theory research and centrifugal separation process research.





    Working principle:



    The principle of the tubular centrifuge is to effectively separate the materials of different specific gravity by the centrifugal force generated by the centrifugal force. According to different separation principles, tubular centrifuges can be divided into two types: clarified type (GQ) and separated type (GF). The main function of clarified tube centrifuge is to treat two separations of liquid and solid; The main function of the centrifuge is to treat liquids in liquid or liquid, liquid and solid phases. The tubular separator consists of a fuselage, a transmission, a drum, and a collecting tray. The inlet bearing housing is composed of a flexible main shaft on the upper part of the drum and a damper bearing on the lower part. The motor passes through the transmission, so that the axis of the drum itself rotates at a high speed, forming a strong centrifugal force field inside the drum, and the material has a bottom inlet inlet. The centrifugal force of the drum causes the liquid to flow upward along the inner wall of the drum, so that the material liquid is separated according to the density difference of the different components, and the layer is discharged from the outlet of the liquid pan.



    The tubular centrifuge is characterized by the separation of solid phase impurities in the liquid by the machine to achieve a clarifying effect. It is used to separate various suspensions that are difficult to separate. It is especially suitable for solid-liquid separation with large concentration and small viscosity, fine solid phase particles and small solid-liquid gravity. The solid phase should be taken out after shutdown.








    16000r/Min Industrial Tubular Centrifuge,Stainless steel Separator For Solid Liquid Separation




    Our services



    Since 2006,Our equipment has been exported to many countries all over the world such as India, Pakistan, Sri Lanka, Bangladesh, Indonesia, Philippines, Malaysia, Vietnam, Singapore, Turkey, Israel, Burma, Jordan, Yemen, Iran, Iraq, Afghanistan, Syria, Kuwait, Kazakhstan, Qatar, Korea, Azerbaijan, The UAE, Bhutan, Thailand, Lebanon, Bahrain, Egypt, Libya, Ethiopia, Kenya, Somalia, Tanzania, Liberia, Ivory Coast, Ghana, Nigeria, Cameroon, Chad, Guinea, Zambia, Zimbabwe, Malawi, Congo, Gabon, Angola, Mozambique, Botswana, Namibia, South Africa, Argentina, Bahamas, Bolivia, Brazil, Canada, Columbia, Chile, Cuba, Venezuela, Ecuador, Guatemala, Guyana, Honduras, Haiti, Mexico, Peru, Uruguay, Paraguay, Surinam, Australia, Russia etc.





    Why choose us:

    1. Manufacture experience,
    Since 1997, we have done a lot of innovation and improvement in the field of filter and separation equipment. We are specialized in design of the filter press according to clients’ requirments, the delivery time of a filter press can be 7 days(if no stock).
    2. Technology capacity,
    We join and make the standard of filter press industry in China, All of our products have CE certificate, also they will be tested before delivery.
    3. Our superiority,
    We are in the first class in the field of filter press of China, more than 250,000 m2 land area and continue developing. Filter areas of filter press widely ranges from 1 m2 to 500 m2, you can always choose a right type.
    4. Best after-sales,
    Supply professional operation training, Timely trouble shooting in 24 hours, we will try our best to solve your problems on the basis of no influence of your equipment working.
