| Place of Origin: | China |
| Brand Name: | TOPER |
| Certification: | CE |
| Model Number: | XY30/630-30U |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export standard wooden package, without solid wooden. |
| Delivery Time: | 10-15 working days after receive your money |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union |
| Supply Ability: | 500 sets per month for this chamber filter press |
| Filtration Area: | 30m2 | Filter Plate Dimension: | 630*630mm |
|---|---|---|---|
| Filtration Chamber Volume: | 452L | Filter Plate No.: | 37pcs |
| Filter Pressure: | 0.6Mpa | Cake Discharge: | Manually |
| Motor: | 2200w | Compression: | Hydraulic Cylinder System |
| Filter Plate Material: | Reinforced Polypropylene | Filter Plate Type: | Chamber Type |
| Filter Medium: | Filter Cloth | Color: | White + Blue Or Customized |
| Conditon: | New | ||
| Highlight: | dewatering filter press,wastewater filter press |
||

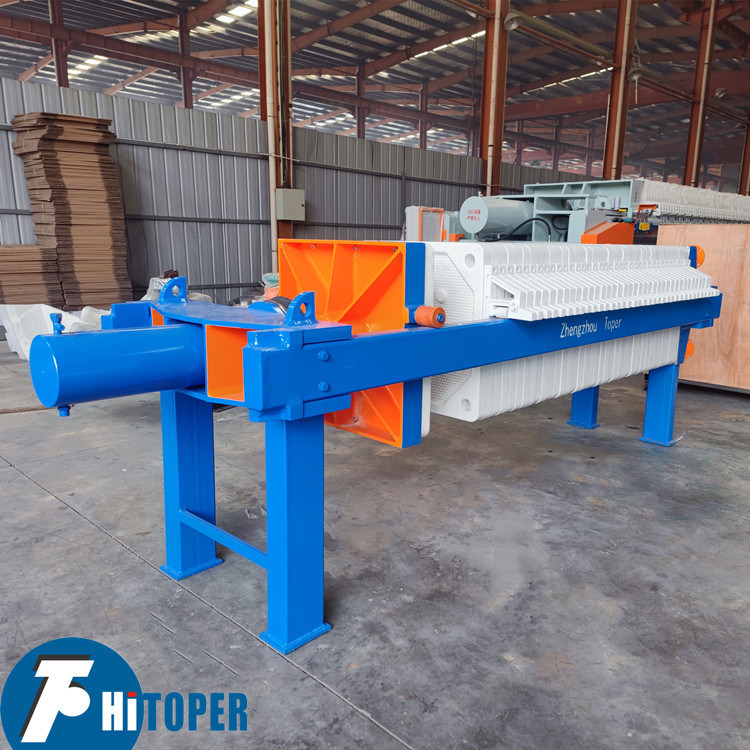

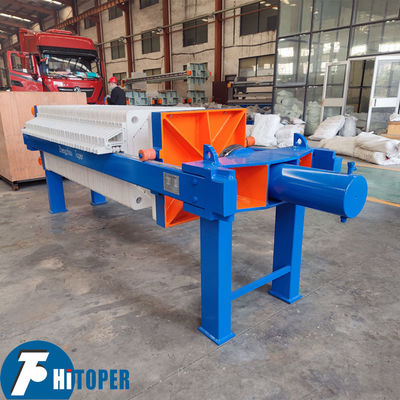

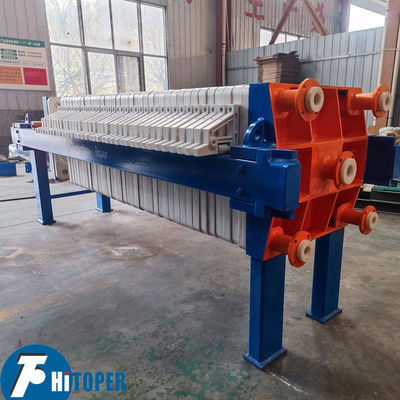

PLC Control 452L Filtration Chamber Volume Chamber Filter Press for Sludge Dewatering
This filter press in process filtration is widely used in effluent treatment industry as following,
Papermaking sewage, printing/dyeing sewage, leather/tannery sewage, electric-plating sewage, metal-processing sewage, stone/mine sewagr, food/beverage sewage, livestock sewage, butchery sewage, city mixed raw sewage, excretion sewage, water purifying sewage and so on.
Chamber filter press consists.
1. Beam, High quality carbon steel Q345B and processed with sand blasting to remove rust and oxide skin, then painted by epoxy primer to get higher intensity and corrosion resistance.
2. Filter plate, Polypropylene(PP) with acid & alkali resistance, anticorrosion, innocuity, tasteless, light weight and high strength.
3. Filter cloths, High quality polypropylene acid and alkali proof or high quality polyester acid.
4. Hydraulic unit, China brand famous pumps and hydraulic valve; Carbon steel bending welding, sealing, air filtration external oil pump, cooling effect is good, maintenance is convenient; High and low pressure oil pipe for gb soft connection
5. Electric control cabinet, PLC control cabinet with Siemens brand or schneider brand Electrical components, Split type or can be fixed on the beam.
Chamber filter press working principle.
In operation, the pressing device drives the push plate to press the filter plate and filter cloth between push plate and tail plate. Filter chamber are formed between pressed filter plates and materials get into the filter chambers through the feeding inlet of tail plate. Solid particles are remained in filter chambers forming into cakes, while liquid is discharged our of the machine throufh press cake and filter cloth. To wash the press cakes, washing water can be introduced through the washing inlet of the tail plate. In similar manner, drying the fitler cakes with compressed air going into the washing inlet.
Chamber filter press technical parameter:
| Type |
Filter area (m2) |
Filter plate size (mm) |
Filter cake thickness (mm) |
Filter chamber volume (L) |
Filter plate number (PCS) |
Filtrating pressure (MPa) |
Motor power (KW) |
Weight (Kg) |
Dimension (mm) (L×W×H) |
| XY4/450-30U | 4 | 450×450 | 30 | 60 | 9 | 0.6 | 2.2 | 860 | 1950×700×900 |
| XY6/450-30U | 6 | 91 | 14 | 910 | 2200×700×900 | ||||
| XY8/450-30U | 8 | 121 | 19 | 960 | 2450×700×900 | ||||
| XY10/450-30U | 10 | 151 | 24 | 1010 | 2700×700×900 | ||||
| XY12/450-30U | 12 | 182 | 29 | 1060 | 2950×700×900 | ||||
| XY15/450-30U | 15 | 225 | 36 | 1130 | 3300×700×900 | ||||
| XY16/450-30U | 16 | 243 | 39 | 1160 | 3450×700×900 | ||||
| XY15/630-30U | 15 | 630×630 | 226 | 18 | 1725 | 2640×900×1100 | |||
| XY20/630-30U | 20 | 297 | 24 | 1993 | 3940×900×1100 | ||||
| XY30/630-30U | 30 | 452 | 37 | 2360 | 3590×900×1100 | ||||
| XY40/630-30U | 40 | 595 | 49 | 2788 | 4300×900×1100 | ||||
| XY30/800-30U | 30 | 800×800 | 460 | 23 | 2170 | 3700×1400×1300 | |||
| XY40/800-30U | 40 | 595 | 30 | 2450 | 4300×1400×1300 | ||||
| XY50/800-30U | 50 | 748 | 38 | 2700 | 4840×1400×1300 | ||||
| XY60/800-30U | 60 | 902 | 46 | 2980 | 5440×1400×1300 | ||||
| XY70/800-30U | 70 | 1056 | 54 | 3250 | 6040×1400×1300 | ||||
| XY30/870-30U | 30 | 870×870 | 460 | 23 | 2580 | 3180×1200×1300 | |||
| XY40/870-30U | 40 | 595 | 30 | 2925 | 3570×1200×1300 | ||||
| XY50/870-30U | 50 | 748 | 38 | 3318 | 4110×1200×1300 | ||||
| XY60/870-30U | 60 | 902 | 46 | 3712 | 4550×1200×1300 | ||||
| XY70/870-30U | 70 | 1056 | 54 | 4106 | 4990×1200×1300 | ||||
| XY80/870-30U | 80 | 1210 | 62 | 4561 | 5430×1200×1300 |
All of our products as below:
1. Common chamber filter press
2. Membrane filter press, have the function of second-squeeze, to give you a lower cake moisture.
3. Stainless steel filter press, hot sale food, medicine, and chemistry industry.
4. Cast iron filter press, which can bear high temperature slurry like 300 ℃ or higher.
5. Round plate filter press, the filtration pressure can be 1.5Mpa, hot sale in kaolin, clay, ceramic and so on slurry.
6. Belt filter press, continuous working and better used for human waste and so on.
7. Bag filter and other smaller filters.
8. Filter plate, filter cloths and other accessories.
9. Common manual feed & discharge centrifuge
10. Automatic feed & discharge centrifuge
11. Decanter centrifuge, continuous working with a big capacity.
12. Tubular centrifuge and disc centrifuge with a higher separation factor to separate the slurry has lower particle content, and small specific gravity difference between solid phase and liquid phase.
