| Place of Origin: | China |
| Brand Name: | TOPER |
| Certification: | CE |
| Model Number: | XY30/630-30U |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export standard wooden package. |
| Delivery Time: | 10-15 working days after receive your payment |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union |
| Supply Ability: | 500 sets per month for this chamber filter press |
| Filter Area: | 30m2 | Plate Size: | 630*630mm |
|---|---|---|---|
| Chamber Volume: | 452L | Plate Number: | 37pcs |
| Filter Pressure: | 0.6Mpa | Cake Discharge: | Manual By Person One By One |
| Motor Power: | 2.2kw | Compression: | Hydraulic Unit |
| Automatic Grade: | Semi-Automatic | Condition: | New |
| Certification: | CE | Voltage: | 380V,Customer Requirement |
| Function: | Solid-liquid Separation |

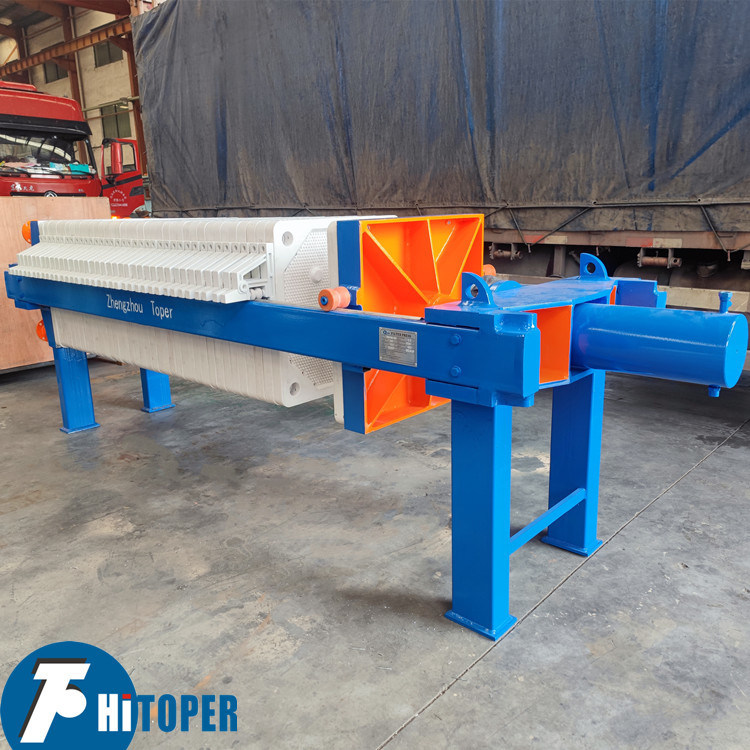

Tailings filtration Ore Sludge Wastewater Separation 30m2 Chamber Filter Press
Our company is an integrated corporation which has specialised in the development, manufacture and worldwide sale of mechanical filtration plants and dewatering systems for industrial separation processes. Our products include two series: filter press and stainless steel filter. The filter press includes: plate and frame filter press, program controlled automatic chamber filter press, automatic membrane filter press,belt filter press and so on. Stainless steel filter includes high efficiency sealed plate filter,candle style filter,PA/PE micro hole filter,automatic washing filter,multiple media filter,bag filter and cartridge filter and so on. Meanwhile,we supply the quality filter plates,filter cloths,filter paper and filter membrane,filter bag,cartridge and so on.
Filter plate are made of strengthened polypropylene through mold pressing, high in strength, light in weight, corrosion resisted, non-poisonous and odorless;
Simple in operation, safe and labor saving, the whole filter press system are auto controlled by the electrical panel. All devices including feed pump, hydraulic power pack, plate shifting device, valves and conveyors are guided by the logic in PLC, and make them work more efficiently.
Other special filter press automatic functions also can be added such as filter cloth washing system, filtrate collecting system, filter cloth shaking system, drip tray system etc.
Application:
Solid-liquid separation of suspensions of all kinds, prevent fruitful in a wide spectrum of industries such as coal, petrochemical, metallurgy,light industry, food processing and textile, as well as environmental protection
Technical parameter:
| Type |
Filter area (m2) |
Filter plate size (mm) |
Filter cake thickness (mm) |
Filter chamber volume (L) |
Filter plate number (PCS) |
Filtrating pressure (MPa) |
Motor power (KW) |
Weight (Kg) |
Dimension (mm) (L×W×H) |
| XY4/450-30U | 4 | 450×450 | 30 | 60 | 9 | 0.6 | 2.2 | 860 | 1950×700×900 |
| XY6/450-30U | 6 | 91 | 14 | 910 | 2200×700×900 | ||||
| XY8/450-30U | 8 | 121 | 19 | 960 | 2450×700×900 | ||||
| XY10/450-30U | 10 | 151 | 24 | 1010 | 2700×700×900 | ||||
| XY12/450-30U | 12 | 182 | 29 | 1060 | 2950×700×900 | ||||
| XY15/450-30U | 15 | 225 | 36 | 1130 | 3300×700×900 | ||||
| XY16/450-30U | 16 | 243 | 39 | 1160 | 3450×700×900 | ||||
| XY15/630-30U | 15 | 630×630 | 226 | 18 | 1725 | 2640×900×1100 | |||
| XY20/630-30U | 20 | 297 | 24 | 1993 | 3940×900×1100 | ||||
| XY30/630-30U | 30 | 452 | 37 | 2360 | 3590×900×1100 | ||||
| XY40/630-30U | 40 | 595 | 49 | 2788 | 4300×900×1100 | ||||
| XY30/800-30U | 30 | 800×800 | 460 | 23 | 2170 | 3700×1400×1300 | |||
| XY40/800-30U | 40 | 595 | 30 | 2450 | 4300×1400×1300 | ||||
| XY50/800-30U | 50 | 748 | 38 | 2700 | 4840×1400×1300 | ||||
| XY60/800-30U | 60 | 902 | 46 | 2980 | 5440×1400×1300 | ||||
| XY70/800-30U | 70 | 1056 | 54 | 3250 | 6040×1400×1300 | ||||
| XY30/870-30U | 30 | 870×870 | 460 | 23 | 2580 | 3180×1200×1300 | |||
| XY40/870-30U | 40 | 595 | 30 | 2925 | 3570×1200×1300 | ||||
| XY50/870-30U | 50 | 748 | 38 | 3318 | 4110×1200×1300 | ||||
| XY60/870-30U | 60 | 902 | 46 | 3712 | 4550×1200×1300 | ||||
| XY70/870-30U | 70 | 1056 | 54 | 4106 | 4990×1200×1300 | ||||
| XY80/870-30U | 80 | 1210 | 62 | 4561 | 5430×1200×1300 |
All of our products as below:
1. Program-controlled automatic filter press
2. Membrane filter press
3. Hydraulic compress filter press
4. Mechanical compress filter press
5. Jack filter press
6. Cast iron plate and frame/chamber filter press
7. Stainless steel plate and frame filter press
8. Round plate filter press
9. Cotton cake filter press
10. Cardboard filter press
11. DY belt filter press
12. DYX high pressure belt filter press
13. DNY rotary drum thickning/dehydrating belt filter press
14. Triple-belt thickning and dehydrating filter press
15. SS type three-foot upper discharge centrifuge
16. SD type three-foot and filter bag hoist discharge centrifuge
17. PD type filter bag hoist discharge centrifuge
18. Centrifuge of up discharge, three foot, clean series SSB, SB
19. SX type manual top discharge centrifuge
20. PS type manual top discharge centrifuge
21. SGZ type automatic scraper bottom discharge centrifuge
22. PGZ type scarper bottom discharge centrifuge
23. LW series decanter centrifuge
24. Tubular centrifuge
25. Multi-layer stainless steel frame filter
26. Bag filter
27. Diatomite filter
28. Filter plate
29. Filter cloth
30. Vacuum disc filter
