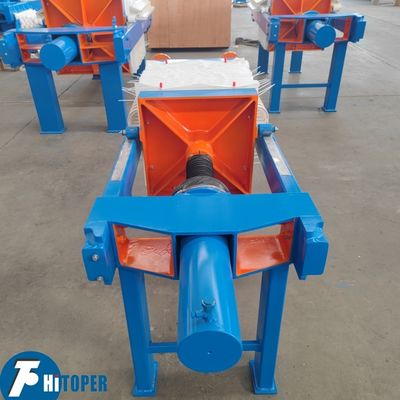

4m2 Semi Automatic Chamber Filter Press With Reinforced Polypropylene Plates

4m2 Semi Automatic Chamber Filter Press With Reinforced Polypropylene Plates

    • 4m2 Semi Automatic Chamber Filter Press With Reinforced Polypropylene Plates
    • 4m2 Semi Automatic Chamber Filter Press With Reinforced Polypropylene Plates
  • 4m2 Semi Automatic Chamber Filter Press With Reinforced Polypropylene Plates

    Product Details:

    Place of Origin: China
    Brand Name: TOPER
    Certification: CE
    Model Number: XY4/450-30U

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: Negotiable
    Packaging Details: Export standard wooden package, without solid wooden.
    Delivery Time: 10-15 working days after receive your money
    Payment Terms: L/C, T/T, D/A, D/P, Western Union
    Supply Ability: 500 sets per month for this chamber filter press
    Contact Now
    Detailed Product Description
    Filter Area: 4m2 Plate Size: 450*450mm
    Chamber Volume: 60L Plate Number: 9pcs
    Filter Pressure: 0.6Mpa Cake Discharge: Manually
    Motor: 2.2kw Compression: Hydraulic Unit
    Filter Plate Material: Reinforced Polypropylene Filter Plate Type: Chamber Type
    Filter Plate Color: White Function: Solid-liquid Separation
    Application: Food,beverage,chemcial,mineral,pharmacy,biological Etc. Voltage: 380V/220V /400-450V/Customized
    Conditon: New
    Highlight:

    dewatering filter press

    ,

    wastewater filter press

    4m2 Semi Automatic Chamber Filter Press With Reinforced Polypropylene Plates



    This filter press is hot usage in widely applied in petroleum, chemical, metallurgy, environmental protection, food, beverage, pharmaceutical, sugar, starch, paper, coal washing, ceramics, mineral processing and various sewage treatment industries’ separation the solid-liquid.



    Filter press consists of frame, filter plate, pressing system. and electric control cabinet.



    Frame consistes of base, push plate, tail plate and beam and frame supports the pressing device and filter plates.



    Filter plate are installed on the beam between tail plate and push plate, with filter cloth sandwiched in them.



    In operation, the pressing device drives the push plate to press the filter plate and filter cloth between push plate and tail plate. Filter chamber are formed between pressed filter plates and materials get into the filter chambers through the feeding inlet of tail plate. Solid particles are remained in filter chambers forming into cakes, while liquid is discharged our of the machine throufh press cake and filter cloth. To wash the press cakes, washing water can be introduced through the washing inlet of the tail plate. In similar manner, drying the fitler cakes with compressed air going into the washing inlet.



    Structure of plate-frame type and chamber filter press is the same. Except the filtering part that consiste of one plate, one frame and fitler cloth, with filter chamber between plate and frame.



    Liquid flow of filter press can be divided into open flow and close stream. Open flow refers to that the filtrate is discharge directly from the outlet of filter plate, close flow refers to that the filtrate is collected from various filter plate before being discharged out of the filtrate port.





    Basic technical parameter:



    Type

    Filter area

    (m2)

    Filter plate size

    (mm)

    Filter cake thickness

    (mm)

    Filter chamber volume

    (L)

    Filter plate number

    (PCS)

    Filtrating pressure

    (MPa)

    Motor power

    (KW)

    Weight

    (Kg)

    Dimension

    (mm)

    (L×W×H)

    XY4/450-30U 4 450×450 30 60 9 0.6 2.2 860 1950×700×900
    XY6/450-30U 6 91 14 910 2200×700×900
    XY8/450-30U 8 121 19 960 2450×700×900
    XY10/450-30U 10 151 24 1010 2700×700×900
    XY12/450-30U 12 182 29 1060 2950×700×900
    XY15/450-30U 15 225 36 1130 3300×700×900
    XY16/450-30U 16 243 39 1160 3450×700×900
    XY15/630-30U 15 630×630 226 18 1725 2640×900×1100
    XY20/630-30U 20 297 24 1993 3940×900×1100
    XY30/630-30U 30 452 37 2360 3590×900×1100
    XY40/630-30U 40 595 49 2788 4300×900×1100
    XY30/800-30U 30 800×800 460 23 2170 3700×1400×1300
    XY40/800-30U 40 595 30 2450 4300×1400×1300
    XY50/800-30U 50 748 38 2700 4840×1400×1300
    XY60/800-30U 60 902 46 2980 5440×1400×1300
    XY70/800-30U 70 1056 54 3250 6040×1400×1300
    XY30/870-30U 30 870×870 460 23 2580 3180×1200×1300
    XY40/870-30U 40 595 30 2925 3570×1200×1300
    XY50/870-30U 50 748 38 3318 4110×1200×1300
    XY60/870-30U 60 902 46 3712 4550×1200×1300
    XY70/870-30U 70 1056 54 4106 4990×1200×1300
    XY80/870-30U 80 1210 62 4561 5430×1200×1300





    Different series of our products as below:



    1. Program-controlled automatic filter press

    2. Membrane filter press

    3. Hydraulic compress filter press

    4. Mechanical compress filter press

    5. Jack filter press

    6. Cast iron plate and frame/chamber filter press

    7. Stainless steel plate and frame filter press

    8. Round plate filter press

    9. Cotton cake filter press

    10. Cardboard filter press

    11. DY belt filter press

    12. DYX high pressure belt filter press

    13. DNY rotary drum thickning/dehydrating belt filter press

    14. Triple-belt thickning and dehydrating filter press

    15. SS type three-foot upper discharge centrifuge

    16. SD type three-foot and filter bag hoist discharge centrifuge

    17. PD type filter bag hoist discharge centrifuge

    18. Centrifuge of up discharge, three foot, clean series SSB, SB

    19. SX type manual top discharge centrifuge

    20. PS type manual top discharge centrifuge

    21. SGZ type automatic scraper bottom discharge centrifuge

    22. PGZ type scarper bottom discharge centrifuge

    23. LW series decanter centrifuge

    24. Tubular centrifuge

    25. Multi-layer stainless steel frame filter

    26. Bag filter

    27. Diatomite filter

    28. Filter plate

    29. Filter cloth

    30. Vacuum disc filter



    4m2 Semi Automatic Chamber Filter Press With Reinforced Polypropylene Plates
