|Place of Origin:||China|
|Minimum Order Quantity:||Negotiable|
|Packaging Details:||Export standard wooden package.|
|Delivery Time:||10 working days after receive your payment|
|Payment Terms:||L/C, T/T, D/A, D/P, Western Union|
|Supply Ability:||100 sets per month for this cartridge filter housing|
|Cartridge Filter Number:||2pc||Cartridge Length:||40''|
|Inlet & Outlet Diameter:||DN50||Sealing Type:||Level 2 O-seal|
|Surface Treatment:||Mirror Polishing Or Sand Blasting||Function:||Filtration,purification ,clarification Etc .|
|Feeding Method:||Pump Feeding Or Manual Feeding||Filter Element Material:||PP,Stainless Steel,Titanium Etc.|
|Discharge Method:||Side Dscharge||Filter Medium:||Filter Element|
|Shell Material:||Stainless Steel|
stainless steel cartridge filter housing,
ss cartridge filter housing

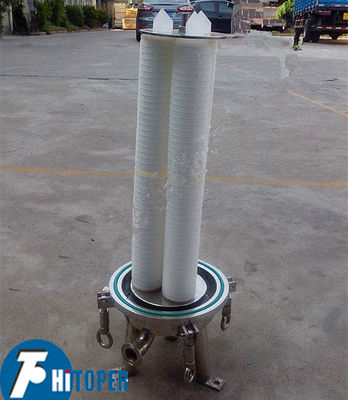

Solid Liquid Suspension Separation Use High Efficiency Cartridge Filter Housing
Cartridge filter is a new kind of liquid filtrate multi-purpose filter, which consists of two parts: the filter body and the filter cartridge.
It has been widely used in water, oil, paint and other liquid purification and machinery, metallurgy, chemical, textile, printing and dyeing, electroplating, pharmaceutical, food and other industries in the solid-liquid separation.
Features of the cartridge filter :
Filters are made of stainless steel, reasonable structure, not only the small size, low cost, large
flow rate, but also easy in overhauling,filter element exchange and assembly.
Filtering accuracy 0.5-100um, flow 0.5-200m3 / h.
According to user needs can also be produced with different sizes of products.
Internal quantity of the filter element can be:single-core, 3-core, 5-core, 7-core, 9-core, 11-core, 13-core, 15-core, etc.Folded type filter element lengths :10,20,30,40 inch
1. Filtration precision: 0.1-100um
2. Capacity: 0.5-200m2 / h
3. Maximum operating pressure: 0.4-10MPa
4. Maximum operating temperature: 80-120 °C
Working principle of the cartridge filter :
The prepared filtering liquid pressed into the filter by the imports, through the filter element from
outside to the inside seeped the filter layer is filtered into the clear liquid, and then is discharged
through the outlet. Impurities are trapped in the deep and surface of the filter element , so achieve
the solid-liquid separation purpose.
Drainage (sewage) port filter size, structure and size of the filter element depends on the design
flow rate, filter media characteristics of the liquid.
Cartridge filter housing technical parameters:
|Cartridge filter||Cartridge length||Flow rate||Diameter||Inlet & outlet diameter|
More information about Toper :
1. About Toper
Zhengzhou Toper is the leading supplier of industrial equipment in China, and also the professional exporter and service provider of filter and separation equipment.
Since 2006, Zhengzhou Toper has supplied products and service to over 200 enterprises of 30 more
countries and areas excluding China mainland.
Southeast Asia: Indonesia, Malaysia, the Philippines, and Thailand; West Asia: Turkey, Uzbekistan and
Tajikistan; Northeast Asia: South Korea, Mongolia; Middle East: Israeli, Palestinian, Oman, Bahrain, Iran;
Europe: Russia, Italy, Spain, Ukraine, Finland, Poland, Romania; North America: Canada, America; South
America: Mexico, Guatemala, Argentina, Brazil, Chile, Peru, Bolivia; Africa: South Africa, Algeria and so on.
Our products are well-known at home and abroad. We have thousands of users throughout China and clients in the world markets.
"Establish TOPER brand for the satisfaction of users" is our persistent pursuit.
Full automatic filter press, membrane filter press, mechanical compress filter press, jack compress filter press,cast iron plate and frame filter press, stainless steel filter press, round plate filter press, belt squeezing filter press, belt thickening and dewatering filter press, three-foot centrifuge, flat panel filter press, horizontal screw sedimentation centrifuge, tubular centrifuge, vacuum
disc type filter, various filter equipment, filter plate and filter cloth and so on.
Our filter and separation equipments are widely used in mining, metallurgy, petroleum, chemical,
environmental protection, electroplating, food, pharmacy, oil, biological, beverage, brewing, textiles,
printing and dyeing, papermaking, inorganic salt, coal washing, sewage treatment, ceramics, leather such
4. The service
We provide our customer with a suitable filter machine in accordance with all kinds of essential information such as the material name, handling capacity, solids content, filtering temperature, and the PH value, etc.
Based on customer requirements, we can offer a planar graph to help our clientele have a further understanding of equipment construction.In addition, we can provide customers with sewage treatment solutions, and also undertake turn-key projects.
During the make-to-order manufacturing process, we can timely inform customers of the equipment production schedule. Also, we can send the related photos to our clients..Once the equipment is completed, we will send the photos of final products to our customers. Then, we inform customers that their cargos are ready to be delivered.
After receiving an order, we will deliver an equipment installation drawing to our customer in advance. Then, our customer can timely arrange space required by the equipment.In accordance with customer requirements, we can dispatch engineers to assist customers in installing and testing the equipment. Also, our engineers offer training courses for operators.We pay a visit to our customers at regular intervals, so as to know the equipment operation. Based on different situations, we offer a suggestion to guarantee smooth operation of the equipment.
