High Efficiency 0.1-100um Cartridge Filter Housing for Solid Liquid Suspension Separation

Solid Liquid Suspension Separation Use High Efficiency Cartridge Filter Housing

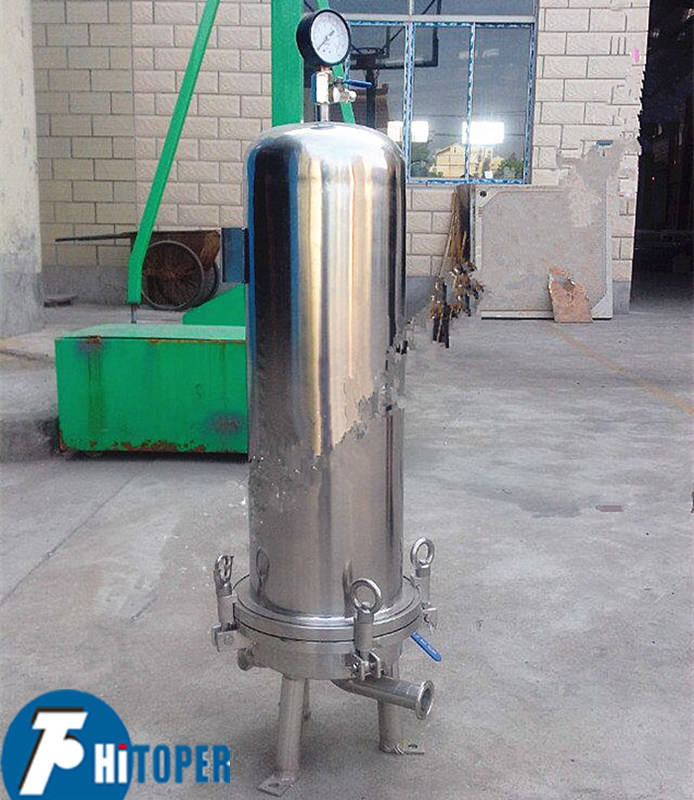

Cartridge filter is a new kind of liquid filtrate multi-purpose filter, which consists of two parts: the filter body and the filter cartridge.



It has been widely used in water, oil, paint and other liquid purification and machinery, metallurgy, chemical, textile, printing and dyeing, electroplating, pharmaceutical, food and other industries in the solid-liquid separation.



Features of the cartridge filter :



Filters are made of stainless steel, reasonable structure, not only the small size, low cost, large

flow rate, but also easy in overhauling,filter element exchange and assembly.

Filtering accuracy 0.5-100um, flow 0.5-200m3 / h.

According to user needs can also be produced with different sizes of products.

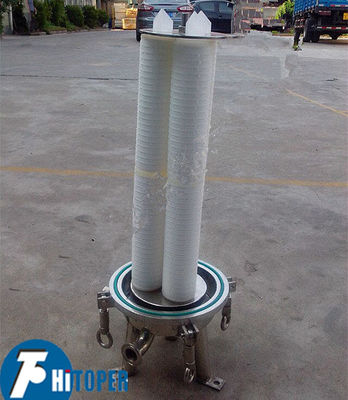

Internal quantity of the filter element can be:single-core, 3-core, 5-core, 7-core, 9-core, 11-core, 13-core, 15-core, etc.Folded type filter element lengths :10,20,30,40 inch



1. Filtration precision: 0.1-100um

2. Capacity: 0.5-200m2 / h

3. Maximum operating pressure: 0.4-10MPa

4. Maximum operating temperature: 80-120 °C





Working principle of the cartridge filter :



The prepared filtering liquid pressed into the filter by the imports, through the filter element from

outside to the inside seeped the filter layer is filtered into the clear liquid, and then is discharged

through the outlet. Impurities are trapped in the deep and surface of the filter element , so achieve

the solid-liquid separation purpose.

Drainage (sewage) port filter size, structure and size of the filter element depends on the design

flow rate, filter media characteristics of the liquid.





Cartridge filter housing technical parameters:





Cartridge filter	Cartridge length	Flow rate	Diameter	Inlet & outlet diameter
Single/1pc	10’’	0.3-0.5m3/h	102mm	DN20
	20’’	0.5-1m3/h
	30’’	1-1.5m3/h
3pcs	10’’	1-1.5m3/h	180mm	DN25
	20’’	1.5-3m3/h
	30’’	2.5-4.5m3/h
5pcs	10’’	1.5-2.5m3/h	219mm	DN32
	20’’	3-5m3/h
	30’’	4.5-7.5m3/h
7pcs	20’’	4-7m3/h	254mm	DN40
	30’’	6-10m3/h
	40’’	8-14m3/h
9pcs	20’’	6-8m3/h	304mm	DN50
	30’’	8-12m3/h
	40’’	16-24m3/h
12pcs	30’’	12-18m3/h	375mm	DN50
	40’’	16-24m3/h
