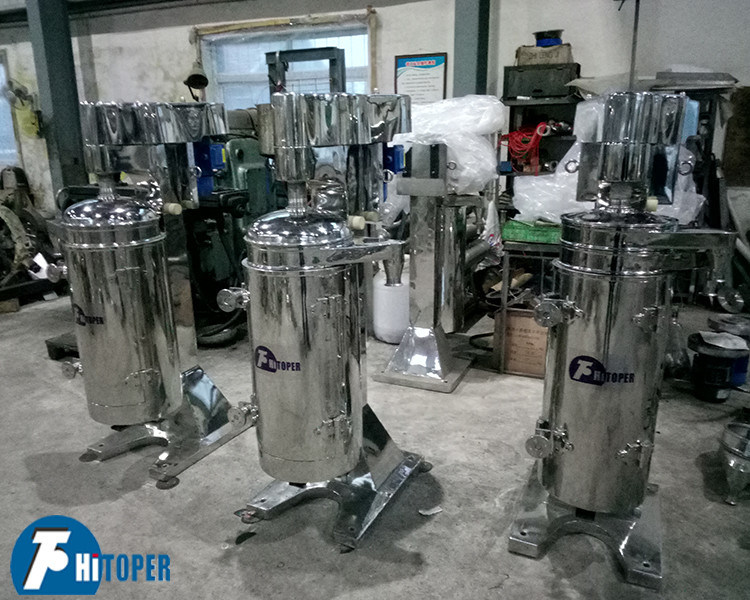

Durable Industrial Tubular Centrifuge , Chemical Separation Oil Centrifuge Machine

Durable Industrial Tubular Centrifuge , Chemical Separation Oil Centrifuge Machine

Durable Industrial Tubular Centrifuge , Chemical Separation Oil Centrifuge Machine

Product Details:

Place of Origin: China
Brand Name: TOPER
Certification: CE
Model Number: GF75

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Export standard wooden package.
Delivery Time: 10-15 working days after receive your payment
Payment Terms: L/C, T/T, D/A, D/P, Western Union
Supply Ability: 60 sets per month for this tubular centrifuge
Contact Now
Detailed Product Description
Drum Diameter: 45mm Drum Volume: 0.4L
Drum Rotate Speed: 0-30000r/min Separation Factor: 21168
Water Flow Capacity: 100L/h Inner Dia.: 45mm
Motor: Single Phase Series Motor Material: Stainless Steel
Weight: 90Kg Dimension: 480×480×800mm
High Light:

liquid solid separation centrifuge

,

tubular bowl centrifuge

Durable Industrial Tubular Centrifuge , Chemical Separation Oil Centrifuge Machine





Our company



Since 2006,Our equipment has been exported to many countries all over the world such as India, Pakistan, Sri Lanka, Bangladesh, Indonesia, Philippines, Malaysia, Vietnam, Singapore, Turkey, Israel, Burma, Jordan, Yemen, Iran, Iraq, Afghanistan, Syria, Kuwait, Kazakhstan, Qatar, Korea, Azerbaijan, The UAE, Bhutan, Thailand, Lebanon, Bahrain, Egypt, Libya, Ethiopia, Kenya, Somalia, Tanzania, Liberia, Ivory Coast, Ghana, Nigeria, Cameroon, Chad, Guinea, Zambia, Zimbabwe, Malawi, Congo, Gabon, Angola, Mozambique, Botswana, Namibia, South Africa, Argentina, Bahamas, Bolivia, Brazil, Canada, Columbia, Chile, Cuba, Venezuela, Ecuador, Guatemala, Guyana, Honduras, Haiti, Mexico, Peru, Uruguay, Paraguay, Surinam, Australia, Russia etc.





Our services



1. Long-term warranty of 1 years.
2. Provide best necessary spare parts at low price.
3. Provide best service and technical support within 24 hours.
4. Solve all kinds of specilized confuse.



Durable Industrial Tubular Centrifuge , Chemical Separation Oil Centrifuge Machine





GF series tubular centrifuge: it is mainly used for various industrial suspension very difficulty to separate, especially suitable for liquid-liquid suspension with small specific gravity difference between solid phase and liquid phase, and liquid-liquid-solid separation with few impurities. liquid with larger Density deposit on the outer wall of the drum. liquid with smaller Density deposit on the inner wall of the drum. Both of them get to the upper part of the drum to discharge. solid particles deposit on the drum wall to be artificially discharged after downtime.





Working principle:


They flow to the top of the bowl and discharge from their respective outlet. And the little particle is settled on the wall of the bowl and discharged manually after the machine stops. GF model is a separating equipment where there the liquid phase of large density is formed into outer ring and the liquid phase of small density is shaped into inner ring, to flow to the top of bowl, to be discharged out from their respective liquid outlets. The micro solids settle on the wall of the bowl and are to be manually discharged after the machine is shut down.





Application Scope

This Tubular Centrifuge Separator is used for separating various liquids that are difficult for separation, especially adapt for liquid-liquid separation, liquid-liquid-solid separation, liquid-solid separation.

It’s widely used in pharmacy, healthy food, drinks and chemical industries, etc. Such as transformer oil, edible oil, turbine oil, lubricating oil, vegetable oil ,fuel, grease, saponification, all kinds of powder, and sugar paste.



It also can be used in separating blood plasma of biological leechdom, extracting blood plasma from animal’s blood; refining soaking placenta, multi-phenol tea, and concentrated phosphatide from soybeans; purifying ejiao; separating oil and handling sewage, various kinds of medicine, etc





Technical parameters:



Model

Drum Nozzle diameter
(mm)

Productivity(water flow) (kg/h)

Power
(KW)

Weight
(kg)

Inner diameter
(mm)

Height
(mm)

Volume
(L)

Rotary speed
(r/min)

Separation factor
GF45 45 280 0.4 28000 19800 2,3 100 0.55 90
GF75 75 450 2.2 19000 15700 4,6 600 1.5 300
GF105 105 730 6 16300 15620 6,8 1200 2.2 570
GF125 125 730 7.4 15000 18000 5,8,9 1500 3.0 610
GF150 142 730 10 14000 15700 8,10,12 2500 3.0 665
