Place of Origin: | China |
Brand Name: | TOPER |
Certification: | CE |
Model Number: | XY60/800-25 |
Minimum Order Quantity: | Negotiable |
---|---|
Price: | Negotiable |
Packaging Details: | Export standard wooden package. |
Delivery Time: | 30-40 working days after receive your payment |
Payment Terms: | L/C, T/T, D/A, D/P, Western Union |
Supply Ability: | 20 sets per month for this cast iron filter press |
Filter Area: | 60m2 | Filter Plate Size: | 800*800mm |
---|---|---|---|
Filter Chamber Volume: | 902L | Filter Plate And Number Number: | 46pcs |
Filtrating Pressure: | 0.8Mpa | Motor Power: | 2.2kw |
Main Feature: | To Bear High Temperature To Be 300C. | Construction: | Cast Iron. |
Weight: | About 9400kg | Dimension: | 3950*1380*1300mm |
Highlight: | filter press for sewage treatment plant,filter press unit |
Cast Iron Chamber Plate Frame Filter Press Machine For Ceramic Slurry Dewatering
Our Zhengzhou Toper company produces various models of recessed filter press and plate-frame mechanical filter press, hydraulic filter press, membrane filter press and full-automatic filter press and filter press spare parts. With high quality and best sale-service, having received a good reputation.

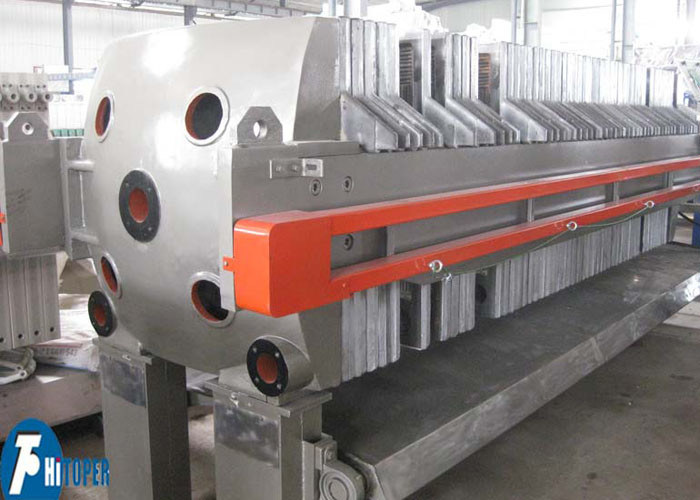

Cast iron filter press is made by high quality cast iron or ductile iron precision casting, with characteristics of high strength to withstand large filtration pressure, high temperature, filtration speed, low cake moisture, unloading, and long service life.
Applied to chemical industry, like gypsum, thiamine, Glauber's salt, ferric sulfate, copper sulfate, nickel sulfate, potassium sulfide, acetic acid, borax, rubber additives, oils, various resins, etc..
Features of this cast iron filter press,
1. Widely be used for dewatering high temperature materials.
2. Plate and frame of filter press, the heart of filter press
3. Material of plate and frame: cast iron
4. Max temperature: up to 300 degree celsius
5. Resistance to high temperature and high pressure.
6. Long use life.
Technical data of this cast iron filter press,
Type |
Filter area (m2) |
Filter plate size (mm) | Cake thickness (mm) | Chamber volume (L) | Plate number (pcs) | Frame number (pcs) | Filtrating pressure (Mpa) | Weight (kg) |
Dimensions(mm) L×W×H |
BQ1/320-25 | 1 | 320 x 320 | 25 | 13 | 4 | 5 | 1.0 | 380 | 1150×760×650 |
BQ2/320-25 | 2 | 25 | 9 | 10 | 500 | 1390×760×650 | |||
BQ3/320-25 | 3 | 38 | 14 | 15 | 620 | 1750×760×650 | |||
BQ4/450-25 | 4 | 450 x 450 | 25 | 51 | 9 | 10 | 0.8 | 1060 | 1780×760×650 |
BQ6/450-25 | 6 | 76 | 14 | 15 | 1160 | 2055×870×880 | |||
BQ8/450-25 | 8 | 102 | 19 | 20 | 1360 | 235×870×880 | |||
BQ12/450-25 | 12 | 152 | 29 | 30 | 1530 | 2785×870×880 | |||
BQ16/450-25 | 16 | 203 | 39 | 40 | 1760 | 3305×870×880 | |||
XQ4/450-25 | 4 | 450 x 450 | 25 | 51 | 9 | 1.0 | 960 | 1900×870×880 | |
XQ6/450-25 | 6 | 76 | 14 | 1140 | 2030×870×880 | ||||
XQ8/450-25 | 8 | 102 | 19 | 1460 | 2280×870×880 | ||||
XQ12/450-25 | 12 | 152 | 29 | 1960 | 2780×870×880 | ||||
XQ16/450-25 | 16 | 203 | 39 | 2460 | 3280×870×880 | ||||
BQ20/630-25 | 20 | 630 x630 | 25 | 298 | 24 | 25 | 0.6 | 3300 | 2750×1150×1100 |
BQ30/630-25 | 30 | 452 | 37 | 38 | 4500 | 3220×1150×1100 | |||
BQ40/630-25 | 40 | 295 | 49 | 50 | 5600 | 3870×1150×1100 | |||
BY20/630-25 | 20 | 298 | 24 | 25 | 3700 | 2960×1150×1100 | |||
BY30/630-25 | 30 | 452 | 37 | 38 | 5000 | 3610×1150×1100 | |||
BY40/630-25 | 40 | 595 | 49 | 50 | 6100 | 4210×1150×1100 | |||
XQ20/630-25 | 20 | 25 | 248 | 24 | 0.8 | 3400 | 2600×1100×1100 | ||
XQ30/630-25 | 30 | 377 | 37 | 4700 | 3250×1100×1100 | ||||
XQ40/630-25 | 40 | 496 | 49 | 5900 | 3900×1100×1100 | ||||
XY20/630-25 | 20 | 248 | 24 | 3800 | 2950×1100×1100 | ||||
XY30/630-25 | 30 | 377 | 37 | 5200 | 3580×1100×1100 | ||||
XY40/630-25 | 40 | 496 | 49 | 6400 | 4180×1100×1100 |
Packaging & Shipping
Reliable and fast package and variety kinds of transportation way to insure you get the goods in time and safely.
Our Services
1). We have professional person on line to advise you the most suitable type of machie according to your requirement.
2). Provide you comprehensive.easy-understanding and detail information and technical data about the machie you interested;solve your confusions or questions about the machine
3). Arrange the schedule if you pay a visit to our factory
4). Send our technical engineer to your area guid the installation,debugging ,training workers and solve the problems if rquired.
Company Information
1. Manufacture experience,
Since 1997, we have done a lot of innovation and improvement in the field of filter and separation equipment. We are specialized in design of the filter press according to clients’ requirments, the delivery time of a filter press can be 10 days(if no stock).
2. Technology capacity,
We join and make the standard of filter press industry in China, All of our products have CE certificate, also they will be tested before delivery.
3. Our superiority,
We are in the first class in the field of filter press of China, more than 250,000 m2 land area and continue developing. Filter areas of filter press widely ranges from 1 m2 to 500 m2, you can always choose a right type.
4. Best after-sales,
Supply professional operation training, Timely trouble shooting in 24 hours, we will try our best to solve your problems on the basis of no influence of your equipment working.
Our manufacturing base of filter equipment mainly produce full automatic or semi-automatic membrane filter press, recessed filter press, belt filter press, centrifuge, etc. All these products are widely used in mining, metallurgy, petroleum, chemical, medicine, textile, printing and dyeing, paper making, food, alcohol, inorganic salt, coal washing, and waste water processing industry.
Our products has passed ISO9001 International Quality Management System Certification and is exported to America, Canada, Chile, Bolivia, Indonesia, Malaysia, Israel, Iran, Egypt, Turkey, Romania, Sweden, Finland, etc. about more than 50 countries and area. We have won good reputation depends on our best qualified products and after-sales service. Warmly welcome new and old friends all over the world to come our company for good cooperation with each other.
Zhengzhou Toper isspecialized in design,manufacture and sales of various filtration equipment,as well as comprehensive filtration solutions and projects. Zhengzhou Toper is the leading supplier of industrial eqipment in China,and also the professional export and service provider of fitler and separation equipment.Our manufacturing base of filter equipment mainly produce full automatic or semi-automatic membrane filter press, plate centrifuge,disc centrifuge,decanter centrifuge and tubular centrifuge etc.
Since 2006,Our equipment has been exported to many countries all over the world such as India, Pakistan, Sri Lanka, Bangladesh, Indonesia, Philippines, Malaysia, Vietnam, Singapore, Turkey, Israel, Burma, Jordan, Yemen, Iran, Iraq, Afghanistan, Syria, Kuwait, Kazakhstan, Qatar, Korea, Azerbaijan, The UAE, Bhutan, Thailand, Lebanon, Bahrain, Egypt, Libya, Ethiopia, Kenya, Somalia, Tanzania, Liberia, Ivory Coast, Ghana, Nigeria, Cameroon, Chad, Guinea, Zambia, Zimbabwe, Malawi, Congo, Gabon, Angola, Mozambique, Botswana, Namibia, South Africa, Argentina, Bahamas, Bolivia, Brazil, Canada, Columbia, Chile, Cuba, Venezuela, Ecuador, Guatemala, Guyana, Honduras, Haiti, Mexico, Peru, Uruguay, Paraguay, Surinam, Australia, Russia etc.. And I hope to establish a long-term relationship with you.
Customer satisfaction is our utmost priority thus, customer service team is always on the brink to help our customers with their queries at any time.
We believe in working as a unit with an attitude of complete trust and understanding and are determined to provide safe, reliable and competitively priced products to our customers.
FILTER PRESS SERIES:
Filter presses can be divided into plate and frame type and are used for solidliquid separation of various suspending liquid in intermittent pressure filtration. Filter plates are pressed by pressing devices and suspending liquid is pumped into the filter chamber. Solid particles and separated through filter cloth. The products are simple in structure but good in separating effects, convenient in use, and widely applicable to mining, metallurgy, petroleum, chemical, medicine, textile, printing and dyeing, paper making, foodstuff, alcohol, inorganic salt, coal washing, dyestuff and sewage treatment industries.
How to order filter press:
1. Select the model,plate and fram material,pressing mode and filtering form by considering the filter press introduction and parameters.
2. According to your products,select open flow and close flow ,washable or non-washable,and specify the conditions in the contract.
3. The unit is provided without pump.To order the unit complete pumps,state it in the contract.
4. Our company can supply non-standard model to meet your special demands.
