1.Brief introduction:

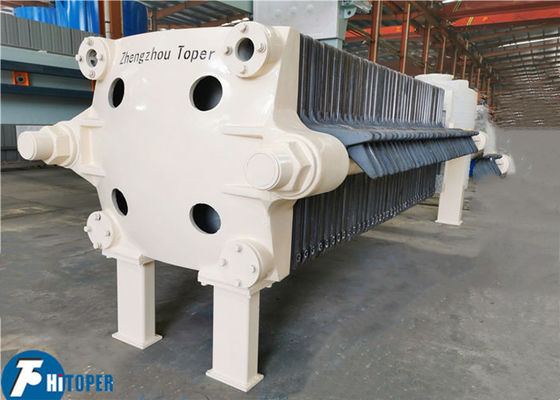

This plate and frame filter press machine is precisely made by high quality cast iron and nodular cast iron. plate and frame filter press machine is suitable for filtrating high temperature material with high strength filter plate, high pressure filtrating load, long service life.



Cast iron plate and frame filter press are made of high quality cast iron or nodular cast iron. It's used for high temperature material. The plate has features of high strength, high pressure, long life-span. It's widely used for solid liquid separation in petrochemical, metallurgy, oil, etc





2.Working principle:

Using filter cloth on both sides of the pressure difference, force the product through the filter cloth in the vast majority of the water, flowing outside the body, and the material is blocked in the filter cake is formed interior to filtration is achieved. Since the filter cloth on both sides of the process there is a relatively large pressure difference and improve the filtration rate reduces the moisture content of the filter cake, and using a special filter cloth, such pure clear filtrate, filtering effect is much better than vacuum filtration confidential.





3.Features of Cast Iron Filter Press

Features of Plate And Frame Filter Press Machine

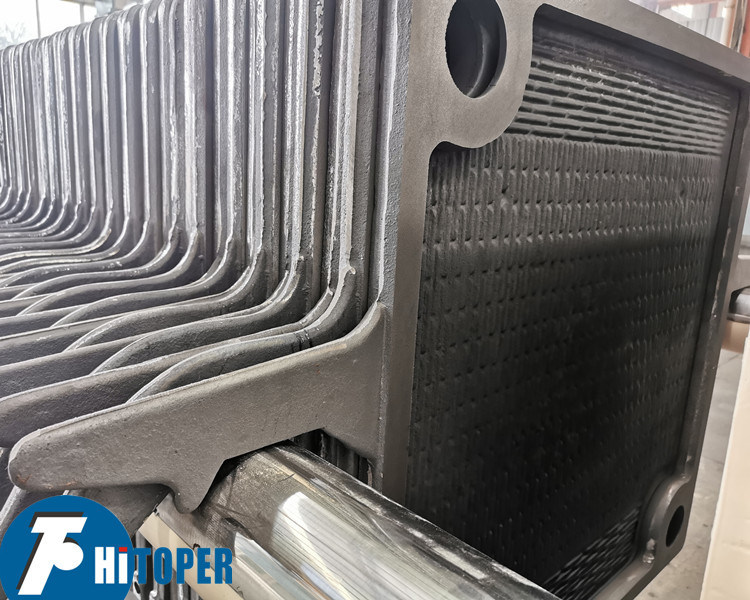

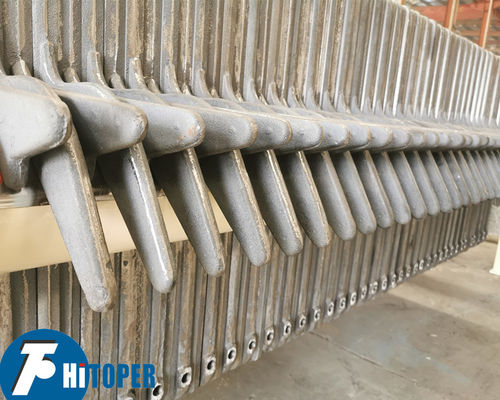

1	The filter plate of plate and frame filter press machine is made of cast iron, small filter press can resist high temperature and high pressure, long service life.
2	Cast iron construction ensures its ultra strong resistance to high temperature, suitable for filtrating high temperature material with high strength cast iron filter plate, such as gelatin, edible oil.
3	Main beam of plate and frame filter press machine is made of high quality carbon steel with sand blasting processing, not easy to out of shape, high intensity and corrosion resisting.
4	Hydraulic compression, simple and easy to use.
5	Safe and convenient in transportation, installation and use.







Technical data of this cast iron filter press,



Type	Filter area (m2)	Filter plate size (mm)	Cake thickness (mm)	Chamber volume (L)	Plate number (pcs)	Frame number (pcs)	Filtrating pressure (Mpa)	Weight (kg)	Dimensions(mm) L×W×H
BQ1/320-25	1	320 x 320	25	13	4	5	1.0	380	1150×760×650
BQ2/320-25	2			25	9	10		500	1390×760×650
BQ3/320-25	3			38	14	15		620	1750×760×650
BQ4/450-25	4	450 x 450	25	51	9	10	0.8	1060	1780×760×650
BQ6/450-25	6			76	14	15		1160	2055×870×880
BQ8/450-25	8			102	19	20		1360	235×870×880
BQ12/450-25	12			152	29	30		1530	2785×870×880
BQ16/450-25	16			203	39	40		1760	3305×870×880
XQ4/450-25	4	450 x 450	25	51	9		1.0	960	1900×870×880
XQ6/450-25	6			76	14			1140	2030×870×880
XQ8/450-25	8			102	19			1460	2280×870×880
XQ12/450-25	12			152	29			1960	2780×870×880
XQ16/450-25	16			203	39			2460	3280×870×880
BQ20/630-25	20	630 x630	25	298	24	25	0.6	3300	2750×1150×1100
BQ30/630-25	30			452	37	38		4500	3220×1150×1100
BQ40/630-25	40			295	49	50		5600	3870×1150×1100
BY20/630-25	20			298	24	25		3700	2960×1150×1100
BY30/630-25	30			452	37	38		5000	3610×1150×1100
BY40/630-25	40			595	49	50		6100	4210×1150×1100
XQ20/630-25	20		25	248	24		0.8	3400	2600×1100×1100
XQ30/630-25	30			377	37			4700	3250×1100×1100
XQ40/630-25	40			496	49			5900	3900×1100×1100
XY20/630-25	20			248	24			3800	2950×1100×1100
XY30/630-25	30			377	37			5200	3580×1100×1100
XY40/630-25	40			496	49			6400	4180×1100×1100







Packaging & Shipping

Reliable and fast package and variety kinds of transportation way to insure you get the goods in time and safely.



About Toper



Zhengzhou Toper is the leading suppiler of industrial equipment in China,and also the professional exporter and service provider of filter and separation equipment.

We focus on full service for filtering project from design to after-sales service and fast supply of spare parts.





All products of Toper:

1. Program-controlled automatic filter press

2. Membrane filter press

3. Hydraulic compress filter press

4. Mechanical compress filter press

5. Jack filter press

6. Cast iron plate and frame/chamber filter press

7. Stainless steel plate and frame filter press

8. Round plate filter press

9. Cotton cake filter press

10. Cardboard filter press

11. DY belt filter press

12. DYX high pressure belt filter press

13. DNY rotary drum thickning/dehydrating belt filter press

14. Triple-belt thickning and dehydrating filter press

15. SS type three-foot upper discharge centrifuge

16. SD type three-foot and filter bag hoist discharge centrifuge

17. PD type filter bag hoist discharge centrifuge

18. Centrifuge of up discharge, three foot, clean series SSB, SB

19. SX type manual top discharge centrifuge

20. PS type manual top discharge centrifuge

21. SGZ type automatic scraper bottom discharge centrifuge

22. PGZ type scarper bottom discharge centrifuge

23. LW series decanter centrifuge

24. Tubular centrifuge

25. Multi-layer stainless steel frame filter

26. Bag filter

27. Diatomite filter

28. Filter plate

29. Filter cloth

30. Vacuum disc filter





How to order filter press:

1. Select the model,plate and fram material,pressing mode and filtering form by considering the filter press introduction and parameters.
2. According to your products,select open flow and close flow ,washable or non-washable,and specify the conditions in the contract.
3. The unit is provided without pump.To order the unit complete pumps,state it in the contract.
4. Our company can supply non-standard model to meet your special demands.
