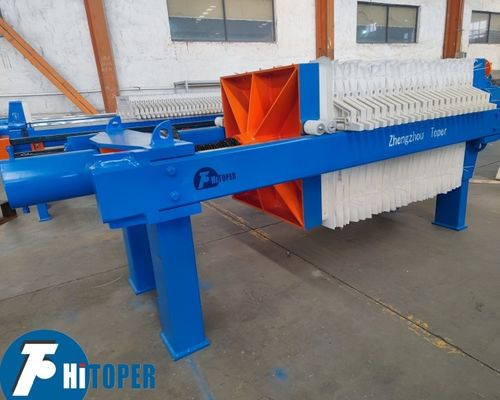

30m2 Chamber Filter Press with 870mm PP Plate for Electroplating Wastewater Plant

30m2 Chamber Filter Press with 870mm PP Plate for Electroplating Wastewater Plant

    • 30m2 Chamber Filter Press with 870mm PP Plate for Electroplating Wastewater Plant
    • 30m2 Chamber Filter Press with 870mm PP Plate for Electroplating Wastewater Plant
    • 30m2 Chamber Filter Press with 870mm PP Plate for Electroplating Wastewater Plant
  • 30m2 Chamber Filter Press with 870mm PP Plate for Electroplating Wastewater Plant

    Product Details:

    Place of Origin: China
    Brand Name: TOPER
    Certification: CE
    Model Number: XY30/870-30U

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: Negotiable
    Packaging Details: Export standard wooden package.
    Delivery Time: 10-15 working days after receive your payment
    Payment Terms: L/C, T/T, D/A, D/P, Western Union
    Supply Ability: 500 sets per month for this chamber filter press
    Contact Now
    Detailed Product Description
    Filter Area: 30m2 Plate Size: 870*870mm
    Chamber Volume: 460L Plate Number: 23pcs
    Filter Pressure: 0.6Mpa Cake Discharge: Manual By Person One By One
    Motor: 2200w Compression: Hydraulic System
    Feeding Method: Central Feeding Filter Cake Discharge Type: Manual Discharge
    Liquid Discharge Type: Open Flow Or Close Flow Application: Food,beverage,chemcial,mineral,pharmacy,biological Etc.
    Conditon: New Filter Medium: Filter Cloth
    Voltage: 380V/220V /400-450V/Customized Function: Separation,concentration,extract,refine,clarify Etc.
    High Light:

    dewatering filter press

    ,

    industrial filter press

    30m2 Industrial Filter Press 870mm PP Plate Type For Electroplating Wastewater Plant





    The main source of zinc in electroplating and metalworking wastewater is electroplated or pickled tow. The contaminants are transferred to the rinse water by a metal rinse process. The pickling process involves first immersing the metal (zinc or copper) in a strong acid to remove oxides from the surface, followed by immersion in a brightener containing strong chromic acid for brightness enhancement. The wastewater contains a large amount of heavy metal ions such as hydrochloric acid and zinc, copper and organic brighteners, etc., which are highly toxic, and some contain highly toxic substances that are carcinogenic, teratogenic and mutagenic, which are extremely harmful to humans. Therefore, the electroplating wastewater must be carefully recycled to eliminate or reduce its environmental pollution.


    Electroplating wastewater treatment equipment consists of adjustment tank, dosing tank, reduction tank, neutralization reaction tank, pH adjustment tank, flocculation tank, inclined tube sedimentation tank, chamber filter press, clear water tank, air flotation reaction, activated carbon filter, etc. .



    Filter press can be divided into plate and frame type and chamber type.

    It is an intermittent filtration equipment,used for solid-liquid separation of various suspensions.

    Filter plates are compressed by pressing device,suspension is pumped into the filter chamber.

    Solid and liquid are separated through filter cloth.Liquid flows out while solid remains in the chamber and then gets discharged thus completes one cycle.



    Simple in structure, great in separating effect, convenient in use and easy for maintenance.

    1. Beam, High quality carbon steel Q345B and processed with sand blasting to remove rust and oxide skin, then painted by epoxy primer to get higher intensity and corrosion resistance.

    2. Filter plate, Polypropylene(PP) with acid & alkali resistance, anticorrosion and high strength.

    3. Filter cloths, High quality polypropylene or polyester.

    4. Hydraulic unit, Chinese famous brand pumps and hydraulic valve; Carbon steel bending, welding, sealing, air filtration external oil pump, great cooling effect, easy for maintenance.High and low pressure oil pipe for gb soft connection.

    5. Electric control cabinet, PLC control cabinet with Siemens brand or schneider brand Electrical components, Split or fixed on the beam.





    Basic technical parameter:



    Type

    Filter area

    (m2)

    Filter plate size

    (mm)

    Filter cake thickness

    (mm)

    Filter chamber volume

    (L)

    Filter plate number

    (PCS)

    Filtrating pressure

    (MPa)

    Motor power

    (KW)

    Weight

    (Kg)

    Dimension

    (mm)

    (L×W×H)

    XY4/450-30U 4 450×450 30 60 9 0.6 2.2 860 1950×700×900
    XY6/450-30U 6 91 14 910 2200×700×900
    XY8/450-30U 8 121 19 960 2450×700×900
    XY10/450-30U 10 151 24 1010 2700×700×900
    XY12/450-30U 12 182 29 1060 2950×700×900
    XY15/450-30U 15 225 36 1130 3300×700×900
    XY16/450-30U 16 243 39 1160 3450×700×900
    XY15/630-30U 15 630×630 226 18 1725 2640×900×1100
    XY20/630-30U 20 297 24 1993 3940×900×1100
    XY30/630-30U 30 452 37 2360 3590×900×1100
    XY40/630-30U 40 595 49 2788 4300×900×1100
    XY30/800-30U 30 800×800 460 23 2170 3700×1400×1300
    XY40/800-30U 40 595 30 2450 4300×1400×1300
    XY50/800-30U 50 748 38 2700 4840×1400×1300
    XY60/800-30U 60 902 46 2980 5440×1400×1300
    XY70/800-30U 70 1056 54 3250 6040×1400×1300
    XY30/870-30U 30 870×870 460 23 2580 3180×1200×1300
    XY40/870-30U 40 595 30 2925 3570×1200×1300
    XY50/870-30U 50 748 38 3318 4110×1200×1300
    XY60/870-30U 60 902 46 3712 4550×1200×1300
    XY70/870-30U 70 1056 54 4106 4990×1200×1300
    XY80/870-30U 80 1210 62 4561 5430×1200×1300





    About our company:



    Our Zhengzhou Toper company is the leading supplier of industrial equipment in China, and also the professional exporter and service provider of filter and separation equipment. from the year 2006, we have exported to more than 100 countries, and accuralated lots of practice experience. so we can give you our best products advise and after-sales service.

    Our products has passed ISO9001 International Quality Management System Certification and is exported to America, Canada, Chile, Bolivia, Indonesia, Malaysia, Israel, Iran, Egypt, Turkey, Romania, Sweden, Finland, etc. about more than 50 countries and area. We have won good reputation depends on our best qualified products and after-sales service. Warmly welcome new and old friends all over the world to come our company for good cooperation with each other!





    Different series of our products as below:



    1. Program-controlled automatic filter press

    2. Membrane filter press

    3. Hydraulic compress filter press

    4. Mechanical compress filter press

    5. Jack filter press

    6. Cast iron plate and frame/chamber filter press

    7. Stainless steel plate and frame filter press

    8. Round plate filter press

    9. Cotton cake filter press

    10. Cardboard filter press

    11. DY belt filter press

    12. DYX high pressure belt filter press

    13. DNY rotary drum thickning/dehydrating belt filter press

    14. Triple-belt thickning and dehydrating filter press

    15. SS type three-foot upper discharge centrifuge

    16. SD type three-foot and filter bag hoist discharge centrifuge

    17. PD type filter bag hoist discharge centrifuge

    18. Centrifuge of up discharge, three foot, clean series SSB, SB

    19. SX type manual top discharge centrifuge

    20. PS type manual top discharge centrifuge

    21. SGZ type automatic scraper bottom discharge centrifuge

    22. PGZ type scarper bottom discharge centrifuge

    23. LW series decanter centrifuge

    24. Tubular centrifuge

    25. Multi-layer stainless steel frame filter

    26. Bag filter

    27. Diatomite filter

    28. Filter plate

    29. Filter cloth

    30. Vacuum disc filter
