Place of Origin: | China |
Brand Name: | TOPER |
Certification: | CE |
Model Number: | XY30/870-30U |
Minimum Order Quantity: | Negotiable |
---|---|
Price: | Negotiable |
Packaging Details: | Export standard wooden package. |
Delivery Time: | 10-15 working days after receive your payment |
Payment Terms: | L/C, T/T, D/A, D/P, Western Union |
Supply Ability: | 500 sets per month for this chamber filter press |
Filter Area: | 30m2 | Plate Size: | 870*870mm |
---|---|---|---|
Chamber Volume: | 460L | Plate Number: | 23pcs |
Filter Pressure: | 0.6Mpa | Cake Discharge: | Manual By Person One By One |
Motor: | 2200w | Compression: | Hydraulic System |
Feeding Method: | Central Feeding | Filter Cake Discharge Type: | Manual Discharge |
Liquid Discharge Type: | Open Flow Or Close Flow | Application: | Food,beverage,chemcial,mineral,pharmacy,biological Etc. |
Conditon: | New | Filter Medium: | Filter Cloth |
Voltage: | 380V/220V /400-450V/Customized | Function: | Separation,concentration,extract,refine,clarify Etc. |
Highlight: | dewatering filter press,industrial filter press |

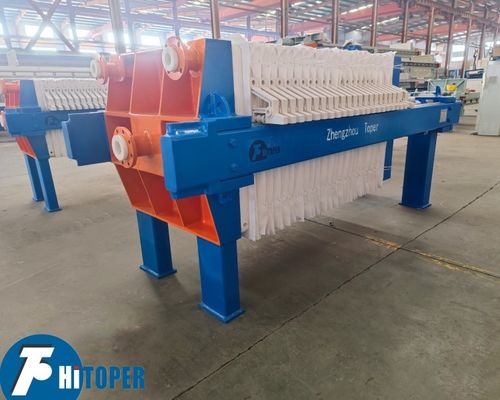

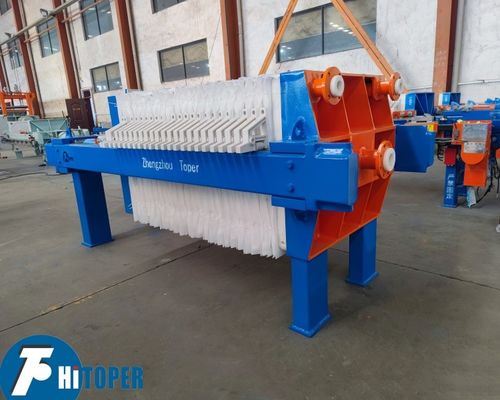

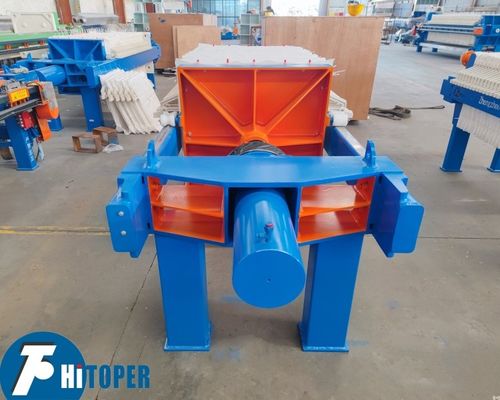

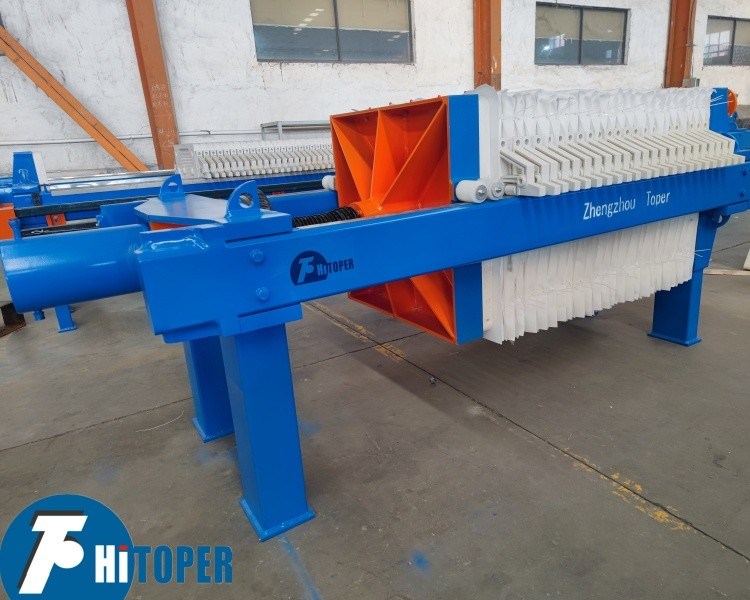

30m2 Chamber Filter Press with 870mm PP Plate for Electroplating Wastewater Plant
The main source of zinc in electroplating and metalworking wastewater is electroplated or pickled tow. The contaminants are transferred to the rinse water by a metal rinse process. The pickling process involves first immersing the metal (zinc or copper) in a strong acid to remove oxides from the surface, followed by immersion in a brightener containing strong chromic acid for brightness enhancement. The wastewater contains a large amount of heavy metal ions such as hydrochloric acid and zinc, copper and organic brighteners, etc., which are highly toxic, and some contain highly toxic substances that are carcinogenic, teratogenic and mutagenic, which are extremely harmful to humans. Therefore, the electroplating wastewater must be carefully recycled to eliminate or reduce its environmental pollution.
Electroplating wastewater treatment equipment consists of adjustment tank, dosing tank, reduction tank, neutralization reaction tank, pH adjustment tank, flocculation tank, inclined tube sedimentation tank, chamber filter press, clear water tank, air flotation reaction, activated carbon filter, etc. .
Filter press can be divided into plate and frame type and chamber type.
It is an intermittent filtration equipment,used for solid-liquid separation of various suspensions.
Filter plates are compressed by pressing device,suspension is pumped into the filter chamber.
Solid and liquid are separated through filter cloth.Liquid flows out while solid remains in the chamber and then gets discharged thus completes one cycle.
Simple in structure, great in separating effect, convenient in use and easy for maintenance.
1. Beam, High quality carbon steel Q345B and processed with sand blasting to remove rust and oxide skin, then painted by epoxy primer to get higher intensity and corrosion resistance.
2. Filter plate, Polypropylene(PP) with acid & alkali resistance, anticorrosion and high strength.
3. Filter cloths, High quality polypropylene or polyester.
4. Hydraulic unit, Chinese famous brand pumps and hydraulic valve; Carbon steel bending, welding, sealing, air filtration external oil pump, great cooling effect, easy for maintenance.High and low pressure oil pipe for gb soft connection.
5. Electric control cabinet, PLC control cabinet with Siemens brand or schneider brand Electrical components, Split or fixed on the beam.
Basic technical parameter:
Type |
Filter area (m2) |
Filter plate size (mm) |
Filter cake thickness (mm) |
Filter chamber volume (L) |
Filter plate number (PCS) |
Filtrating pressure (MPa) |
Motor power (KW) |
Weight (Kg) |
Dimension (mm) (L×W×H) |
XY4/450-30U | 4 | 450×450 | 30 | 60 | 9 | 0.6 | 2.2 | 860 | 1950×700×900 |
XY6/450-30U | 6 | 91 | 14 | 910 | 2200×700×900 | ||||
XY8/450-30U | 8 | 121 | 19 | 960 | 2450×700×900 | ||||
XY10/450-30U | 10 | 151 | 24 | 1010 | 2700×700×900 | ||||
XY12/450-30U | 12 | 182 | 29 | 1060 | 2950×700×900 | ||||
XY15/450-30U | 15 | 225 | 36 | 1130 | 3300×700×900 | ||||
XY16/450-30U | 16 | 243 | 39 | 1160 | 3450×700×900 | ||||
XY15/630-30U | 15 | 630×630 | 226 | 18 | 1725 | 2640×900×1100 | |||
XY20/630-30U | 20 | 297 | 24 | 1993 | 3940×900×1100 | ||||
XY30/630-30U | 30 | 452 | 37 | 2360 | 3590×900×1100 | ||||
XY40/630-30U | 40 | 595 | 49 | 2788 | 4300×900×1100 | ||||
XY30/800-30U | 30 | 800×800 | 460 | 23 | 2170 | 3700×1400×1300 | |||
XY40/800-30U | 40 | 595 | 30 | 2450 | 4300×1400×1300 | ||||
XY50/800-30U | 50 | 748 | 38 | 2700 | 4840×1400×1300 | ||||
XY60/800-30U | 60 | 902 | 46 | 2980 | 5440×1400×1300 | ||||
XY70/800-30U | 70 | 1056 | 54 | 3250 | 6040×1400×1300 | ||||
XY30/870-30U | 30 | 870×870 | 460 | 23 | 2580 | 3180×1200×1300 | |||
XY40/870-30U | 40 | 595 | 30 | 2925 | 3570×1200×1300 | ||||
XY50/870-30U | 50 | 748 | 38 | 3318 | 4110×1200×1300 | ||||
XY60/870-30U | 60 | 902 | 46 | 3712 | 4550×1200×1300 | ||||
XY70/870-30U | 70 | 1056 | 54 | 4106 | 4990×1200×1300 | ||||
XY80/870-30U | 80 | 1210 | 62 | 4561 | 5430×1200×1300 |
