3m2 Small Mobile Manual Hydraulic Compress Chamber Filter Press

3m2 Small Mobile Manual Hydraulic Compress Chamber Filter Press

    • 3m2 Small Mobile Manual Hydraulic Compress Chamber Filter Press
    • 3m2 Small Mobile Manual Hydraulic Compress Chamber Filter Press
  • 3m2 Small Mobile Manual Hydraulic Compress Chamber Filter Press

    Product Details:

    Place of Origin: China
    Brand Name: TOPER
    Certification: CE
    Model Number: XQ3/320-30U

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: Negotiable
    Packaging Details: Export standard wooden package.
    Delivery Time: 7-10 working days after receive your payment
    Payment Terms: L/C, T/T, D/A, D/P, Western Union
    Supply Ability: 500 sets per month for this chamber filter press
    Contact Now
    Detailed Product Description
    Filter Area: 3m2 Plate Size: 320*320mm
    Chamber Volume: 46L Plate Pieces: 14pcs
    Filtrating Pressure: 0.6Mpa Compression: Manual Hydraulic
    Filter Plate Material: Reinforced Polypropylene Function: Solid-liquid Separation
    Plate Type: Chamber Plate Condition: New
    Highlight:

    dewatering filter press

    ,

    wastewater filter press

    3m2 Small Mobile Manual Hydraulic Compress Chamber Filter Press

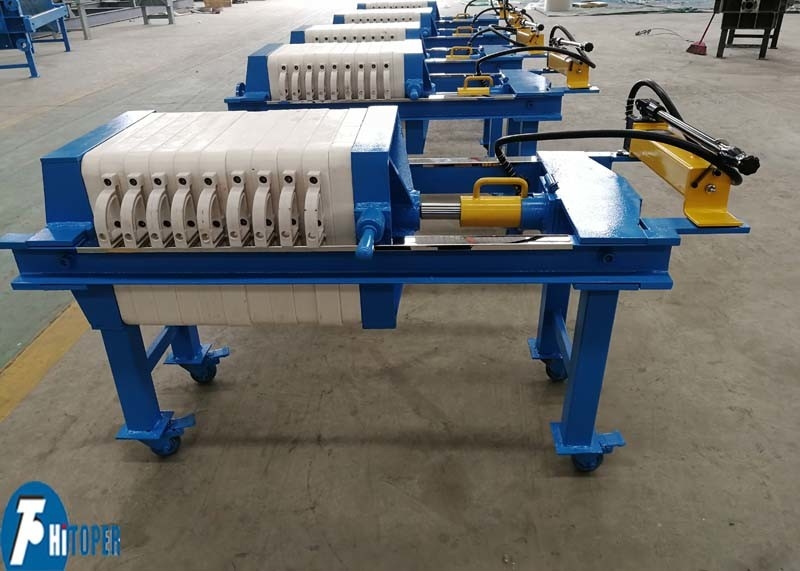

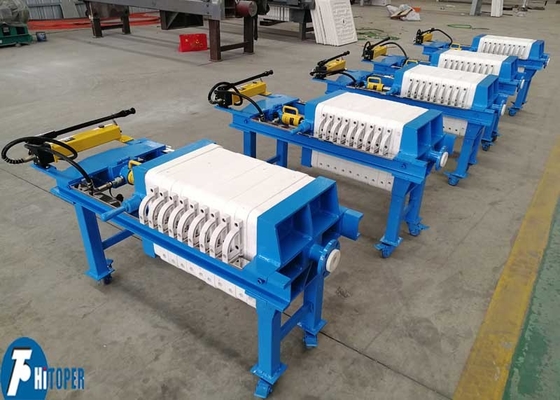

    This mobile chamber filter press is an intermittent working separation equipment, and it is used for solid-liquid separation of various slurry, when works, filter plates are pressed together by pressing system/manual to form filter chambers, then slurry to be pumped into the filter chambers, with the holding pressure, solid particle and liquid are separated through filter cloths. liquid flow out and solid retain in the chambers.





    Advantages:



    1. There is wheel on the four legs, and it can be move easily.

    2. It’s more easy for a worker to compress all plates together.

    3. This design is only for smaller filter plate size filter press, like 320*320mm, 450mm*450mm. Plz be noted.



    Hot usage in lab test in coal washing, inorganic, mining, alcohol, petroleum, metallurgy, chemicals, fuel, medicine, food, textile, printing, dyeing, paper making, sewage treatment and other fields.





    Basic technical data:



    Type

    Filter area

    (m2)

    Filter plate size (mm) Cake thickness (mm) Chamber volume (L) Plate number (PCS)

    Filtrating pressure

    (MPa)

    Weight (kg)

    Dimensions (mm)

    (L×W×H)

    XQ1/320-30U 1 320 x 320 30 15 4 0.6 490 1070×570×660
    XQ2/320-30U 2 31 9 528 1295×570×660
    XQ3/320-30U 3 46 14 550 1520×570×660
    XQ4/450-30U 4 450 x 450 60 9 0.6 780 1630×800×900
    XQ6/450-30U 6 91 14 830 1880×800×900
    XQ8/450-30U 8 121 19 880 2130×800×900
    XQ10/450-30U 10 151 24 930 2380×800×900
    XQ12/450-30U 12 182 29 980 2630×800×900
    XQ15/450-30U 15 225 36 1030 2980×800×900
    XQ16/450-30U 16 243 39 1050 3130×800×900
    XQ15/630-30U 15 630 x 630 226 18 0.6 1257 2370×1080×1060
    XQ20/630-30U 20 297 24 1347 2670×1080×1060
    XQ30/630-30U 30 452 37 1693 3320×1080×1060
    XQ40/630-30U 40 595 49 2193 4020×1080×1060





    About our company:



    Our Zhengzhou Toper company is the leading supplier of industrial equipment in China, and also the professional exporter and service provider of filter and separation equipment. from the year 2006, we have exported to more than 100 countries, and accuralated lots of practice experience. so we can give you our best products advise and after-sales service.

    Our products has passed ISO9001 International Quality Management System Certification and is exported to America, Canada, Chile, Bolivia, Indonesia, Malaysia, Israel, Iran, Egypt, Turkey, Romania, Sweden, Finland, etc. about more than 50 countries and area. We have won good reputation depends on our best qualified products and after-sales service. Warmly welcome new and old friends all over the world to come our company for good cooperation with each other!





    Different series of our products as below:



    1. Program-controlled automatic filter press

    2. Membrane filter press

    3. Hydraulic compress filter press

    4. Mechanical compress filter press

    5. Jack filter press

    6. Cast iron plate and frame/chamber filter press

    7. Stainless steel plate and frame filter press

    8. Round plate filter press

    9. Cotton cake filter press

    10. Cardboard filter press

    11. DY belt filter press

    12. DYX high pressure belt filter press

    13. DNY rotary drum thickning/dehydrating belt filter press

    14. Triple-belt thickning and dehydrating filter press

    15. SS type three-foot upper discharge centrifuge

    16. SD type three-foot and filter bag hoist discharge centrifuge

    17. PD type filter bag hoist discharge centrifuge

    18. Centrifuge of up discharge, three foot, clean series SSB, SB

    19. SX type manual top discharge centrifuge

    20. PS type manual top discharge centrifuge

    21. SGZ type automatic scraper bottom discharge centrifuge

    22. PGZ type scarper bottom discharge centrifuge

    23. LW series decanter centrifuge

    24. Tubular centrifuge

    25. Multi-layer stainless steel frame filter

    26. Bag filter

    27. Diatomite filter

    28. Filter plate

    29. Filter cloth

    30. Vacuum disc filter
