Place of Origin: | China |
Brand Name: | TOPER |
Certification: | CE |
Model Number: | 8m2 |
Minimum Order Quantity: | Negotiable |
---|---|
Price: | Negotiable |
Packaging Details: | Export standard wooden package. |
Delivery Time: | about 45 working days after receive your payment |
Payment Terms: | L/C, T/T, D/A, D/P, Western Union |
Supply Ability: | 60 sets per month for this cotton cake filtre press |
Features: | Bottom Mobile Bracket | Filter Plate Size: | Diamter Of 500mm |
---|---|---|---|
Filter Chamber Volume: | 216L | Filter Plate Number: | 22pcs |
Filtrating Pressure: | Less Than 2Mpa | Motor Power: | 1.1kw |
Max. Pressure Inner Frame: | 3kg/cm2 | Flow Rate: | 87L/min |
Oil Steady Pressure: | 12Mpa | Condition: | New |
Voltage: | 220V/380V/Customized | Automatic Grade: | Semi-Automatic |
Function: | Solid-liquid Seperation | Application: | Fermentation,enzymes,RNA Gelatin,food And Beverage |
Filter Medium: | Renewable Fiber Material | ||
Highlight: | plate and frame filter press,filter press machine |

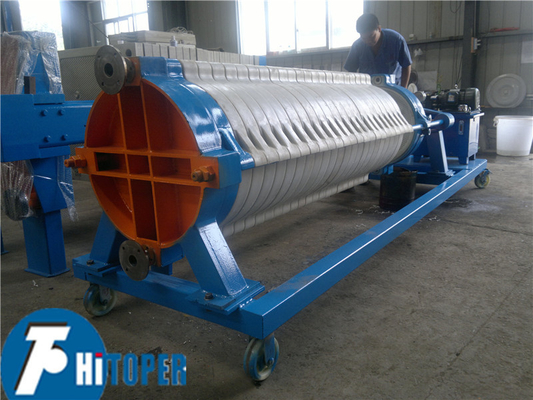

Food And Beverage Industry Filter Press Machine For Liquid Solid Separation
Cotton filter press can be repeated using recycled fiber material as filter media to remove traces of oil in the liquid material, mechanical impurities, suspended complexes and other impurities, so that filtered liquid clear and transparent.
1. Round plate, 500mm, or 400mm
2. Feeding type, corner one.
3. Liquid flow type, close one.
4. Material type, aluminum alloy or reinforced polypropylene.
5. WIth wheels, canbe movable.
Cotton cake filter press our company manufactured belongs to plate and frame type filter press.It is suitable for filtering and purifying liquid .It is widely used in chemical industry,metallurgy,pharmaceutical ,food and other industries.This filter press has such features of large filter area ,convenient operation and maintenance.Filter plate and frame adopts round structure.It is better than square structure.The material is of aluminum alloy and reinforced polypropylene.And the quantity of frame can be increased or reduced ,the machine can be applied to different liquid filtration.
It is used in fermentation ,enzymes,RNA gelatin,food and beverage ,and other high precision requirement industries.
Technical data,
Filter area (m2) |
Plate size (mm) |
Frame thickness (mm) |
Filter pressure (Mpa) |
Plate quantity (pcs) |
Max. pressure Inner frame (kg/cm2) |
Volume inside frame (L) |
Dimension L×W×H |
Flow( L/min) |
Motor power (kw) |
Motor speed (r/min) |
Steady pressure (Mpa) |
Max. displacement (mm) |
8 | Ф500 | 50 | ≤2 | 22 | 3 | 216 |
2630×1150 ×770 |
87 | 1.1 | 1460 | 12 |
350
|
5 | Ф400 | 50 | ≤2 | 22 | 3 | 138 |
2630×1050 ×670 |
55 | 1.1 | 1460 | 12 | 350 |
Why choose us:
1. Manufacture experience,
Since 1997, we have done a lot of innovation and improvement in the field of filter and separation equipment. We are specialized in design of the filter press according to clients’ requirments, the delivery time of a filter press can be 7 days(if no stock).
2. Technology capacity,
We join and make the standard of filter press industry in China, All of our products have CE certificate, also they will be tested before delivery.
3. Our superiority,
We are in the first class in the field of filter press of China, more than 250,000 m2 land area and continue developing. Filter areas of filter press widely ranges from 1 m2 to 500 m2, you can always choose a right type.
4. Best after-sales,
Supply professional operation training, Timely trouble shooting in 24 hours, we will try our best to solve your problems on the basis of no influence of your equipment working.
