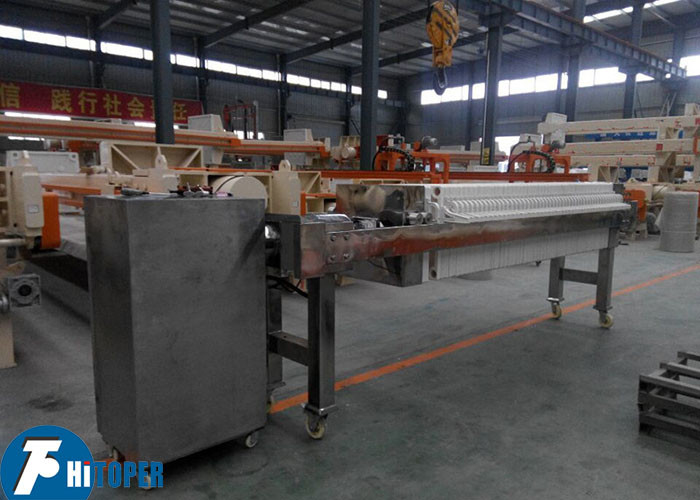

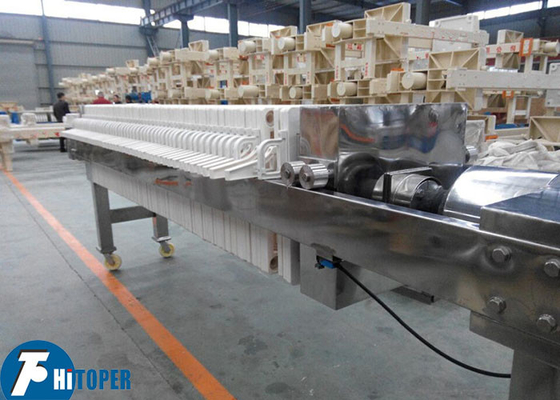

High Precision Cardboard Filter Press with Reinforced Polypropylene Filter Plate

High Precision Cardboard Filter Press , Pharmacy / Biology Industry Blood Separator





Cardboard filter press structure includes the beam, pipeline system, fine filter plate group and hydraulic clamping device. Filtration cardboard as the filter medium, is a high-precision filtration equipment. It can meet the requirements of the liquid for further purification to the liquid, which has primary filtration and reach the concentration values. The performance can be achieved in accordance with cardboard clear filtration and sterile filtration, diatomite can also be pre-coated on the cardboard, to achieve higher filtration requirements, clarification filtration of up to 99.9%, after filtration turbidity (EBC) can reach 0.3 or less. The machine is generally used in conjunction with the front channel filter. Product novel structure, easy to move, simple operation, filter plate of reinforced polypropylene, acid corrosion, non-toxic, long service life.





Filtration principle,



Under the influence of certain pressure, the filtrate goes into the machine, and flows into each filter unit, at adsorption, interception of cardboard, to remove the residue. After each filter unit to filter out the serum pooled together. Flow out the filter, to reach the filtrate further purification.





Application,



This machine is mainly applied to medicine, food, biological, beverages, brewing, chemical and other industries, when used for filtration of blood products, also known as plasma separation machine.





Technical data,



TYPE	Filter area (m2)	Filter chamber volume (L)	plate size (mm)	Cake thickness (mm)	Number plate (pcs)	Number frame (pcs)	Weight (kg)	Pressure (Mpa)	Dimensions L x W x H(mm)
BAY10/610-25u	10	128	550	25	16	17	690	0.4	2650x1020x1020
BAY15/610-25u	15	189	550	25	24	25	715	0.4	3050x1020x1020
BAY20/610-25u	20	257	550	25	33	34	727	0.4	3450x1020x1020
BAY25/610-25u	25	317	550	25	41	42	738	0.4	3820x1020x1020
BAY30/610-25u	30	378	550	25	49	50	750	0.4	4300x1020x1020





All of our products:



1. Program-controlled automatic filter press

2. Membrane filter press

3. Hydraulic compress filter press

4. Mechanical compress filter press

5. Jack filter press

6. Cast iron plate and frame/chamber filter press

7. Stainless steel plate and frame filter press

8. Round plate filter press

9. Cotton cake filter press

10. Cardboard filter press

11. DY belt filter press

12. DYX high pressure belt filter press

13. DNY rotary drum thickning/dehydrating belt filter press

14. Triple-belt thickning and dehydrating filter press

15. SS type three-foot upper discharge centrifuge

16. SD type three-foot and filter bag hoist discharge centrifuge

17. PD type filter bag hoist discharge centrifuge

18. Centrifuge of up discharge, three foot, clean series SSB, SB

19. SX type manual top discharge centrifuge

20. PS type manual top discharge centrifuge

21. SGZ type automatic scraper bottom discharge centrifuge

22. PGZ type scarper bottom discharge centrifuge

23. LW series decanter centrifuge

24. Tubular centrifuge

25. Multi-layer stainless steel frame filter

26. Bag filter

27. Diatomite filter

28. Filter plate

29. Filter cloth

30. Vacuum disc filter





Why choose us:



1. Manufacture experience,

Since 1997, we have done a lot of innovation and improvement in the field of filter and separation equipment. We are specialized in design of the filter press according to clients’ requirments, the delivery time of a filter press can be 7 days(if no stock).

2. Technology capacity,

We join and make the standard of filter press industry in China, All of our products have CE certificate, also they will be tested before delivery.

3. Our superiority,

We are in the first class in the field of filter press of China, more than 250,000 m2 land area and continue developing. Filter areas of filter press widely ranges from 1 m2 to 500 m2, you can always choose a right type.

4. Best after-sales,

Supply professional operation training, Timely trouble shooting in 24 hours, we will try our best to solve your problems on the basis of no influence of your equipment working.
