Place of Origin: | China |
Brand Name: | TOPER |
Certification: | CE |
Model Number: | BAY30/610-25U |
Minimum Order Quantity: | Negotiable |
---|---|
Price: | Negotiable |
Packaging Details: | Export standard wooden package. |
Delivery Time: | 30-40 working days after receive your payment |
Payment Terms: | L/C, T/T, D/A, D/P, Western Union |
Supply Ability: | 20 sets per month for this cardboard filter press |
Filter Area: | 30m2 | Filter Plate Size: | 550*550mm |
---|---|---|---|
Filter Plate And Number Number: | 49pcs | Filtrating Pressure: | 0.4Mpa |
Motor Power: | 2.2kw | Filter Chamber Volume: | 378L |
Filter Medium: | Filter Coardboard | Condition: | New |
Structure: | Plate-frame Type | Voltage: | 380V/220V /400-450V/Customized |
Function: | Solid-liquid Separation | ||
Highlight: | wastewater filter press,industrial filter press |
Beverage Industry Cardboard Filter Press Equipment For Fine Filtration

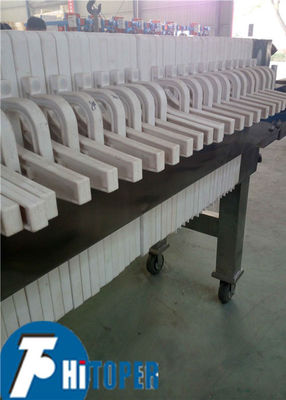

Cardboard filter press structure includes the beam, pipeline system, fine filter plate group and hydraulic clamping device. Filtration cardboard as the filter medium, is a high-precision filtration equipment. It can meet the requirements of the liquid for further purification to the liquid, which has primary filtration and reach the concentration values. The performance can be achieved in accordance with cardboard clear filtration and sterile filtration, diatomite can also be pre-coated on the cardboard, to achieve higher filtration requirements, clarification filtration of up to 99.9%, after filtration turbidity (EBC) can reach 0.3 or less. The machine is generally used in conjunction with the front channel filter. Product novel structure, easy to move, simple operation, filter plate of reinforced polypropylene, acid corrosion, non-toxic, long service life.
Filtration principle,
Under the influence of certain pressure, the filtrate goes into the machine, and flows into each filter unit, at adsorption, interception of cardboard, to remove the residue. After each filter unit to filter out the serum pooled together. Flow out the filter, to reach the filtrate further purification.
Application,
This machine is mainly applied to medicine, food, biological, beverages, brewing, chemical and other industries, when used for filtration of blood products, also known as plasma separation machine.
Technical data,
TYPE |
Filter area (m2) |
Filter chamber volume (L) |
plate size (mm) |
Cake thickness (mm) |
Number plate (pcs) |
Number frame (pcs) |
Weight (kg) |
Pressure (Mpa) |
Dimensions L x W x H(mm) |
BAY10/610-25u | 10 | 128 | 550 | 25 | 16 | 17 | 690 | 0.4 | 2650x1020x1020 |
BAY15/610-25u | 15 | 189 | 550 | 25 | 24 | 25 | 715 | 0.4 | 3050x1020x1020 |
BAY20/610-25u | 20 | 257 | 550 | 25 | 33 | 34 | 727 | 0.4 | 3450x1020x1020 |
BAY25/610-25u | 25 | 317 | 550 | 25 | 41 | 42 | 738 | 0.4 | 3820x1020x1020 |
BAY30/610-25u | 30 | 378 | 550 | 25 | 49 | 50 | 750 | 0.4 | 4300x1020x1020 |
FILTER PRESS SERIES:
Filter presses can be divided into plate and frame type and are used for solidliquid separation of various suspending liquid in intermittent pressure filtration. Filter plates are pressed by pressing devices and suspending liquid is pumped into the filter chamber. Solid particles and separated through filter cloth. The products are simple in structure but good in separating effects, convenient in use, and widely applicable to mining, metallurgy, petroleum, chemical, medicine, textile, printing and dyeing, paper making, foodstuff, alcohol, inorganic salt, coal washing, dyestuff and sewage treatment industries.
How to order filter press:
1. Select the model,plate and fram material,pressing mode and filtering form by considering the filter press introduction and parameters.
2. According to your products,select open flow and close flow ,washable or non-washable,and specify the conditions in the contract.
3. The unit is provided without pump.To order the unit complete pumps,state it in the contract.
4. Our company can supply non-standard model to meet your special demands.
Packaging & Shipping
Reliable and fast package and variety kinds of transportation way to insure you get the goods in time and safely.
Our Services
1). We have professional person on line to advise you the most suitable type of machie according to your requirement.
2). Provide you comprehensive.easy-understanding and detail information and technical data about the machie you interested;solve your confusions or questions about the machine

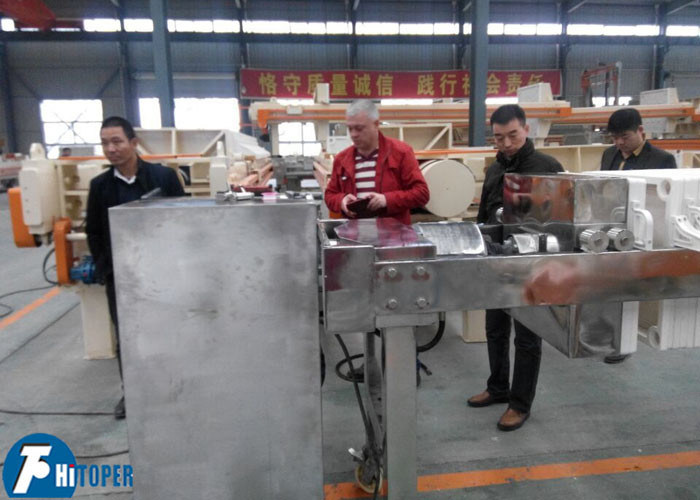

3). Arrange the schedule if you pay a visit to our factory
