| Place of Origin: | China |
| Brand Name: | TOPER |
| Certification: | CE |
| Model Number: | XY20/630-30U |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export standard wooden package. |
| Delivery Time: | 20-30 working days after receive your payment |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union |
| Supply Ability: | 50 sets per month for this chamber filter press |
| Filter Area: | 20m2 | Filter Plate Size: | 630X630mm |
|---|---|---|---|
| Filter Chamber Volume: | 297L | Filter Number: | 24pcs |
| Filtrating Pressure: | 0.6Mpa | Motor Power: | 2.2kw |
| Weight: | 1993kgs | Dimension: | 3940*900*1100mm |
| Filter Medium: | Filter Cloth | Feeding Method: | Pump Feeding |
| Cake Discharge Type: | Manual Discahrge | Liquid Discharge Type: | Open Flow Or Close Flow |
| Conditon: | New | Color: | Blue Or Customized |

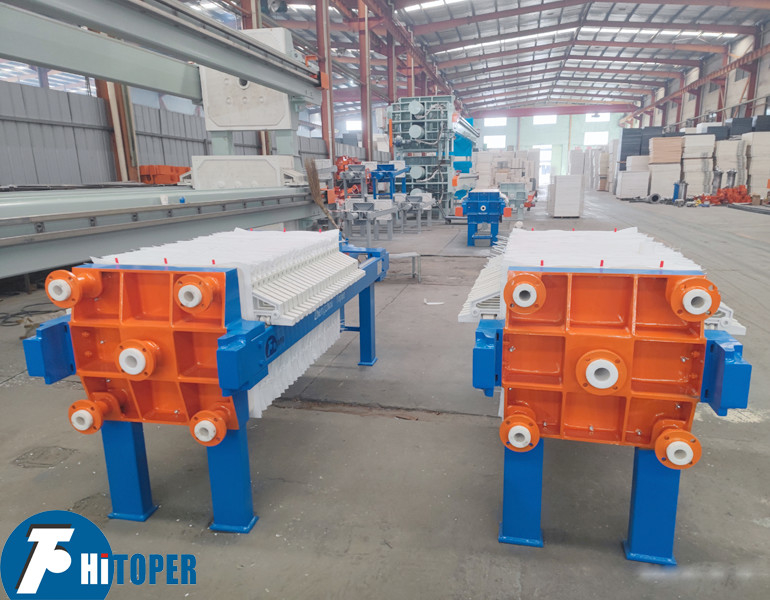

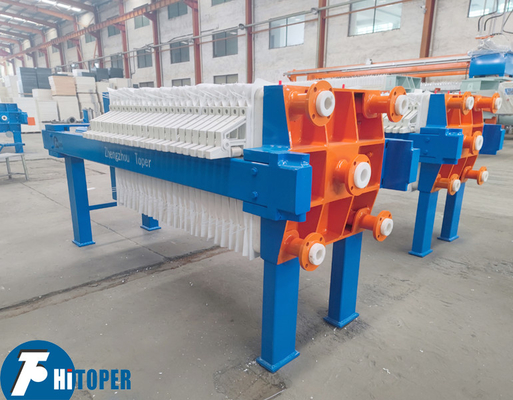

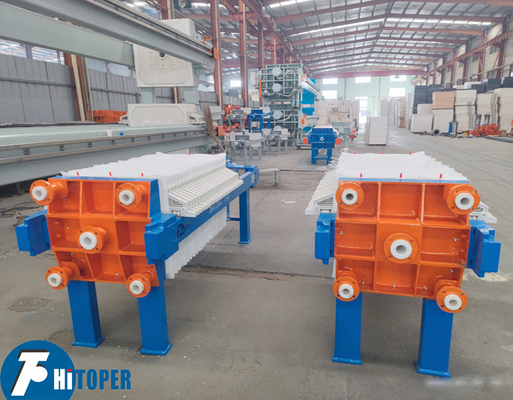

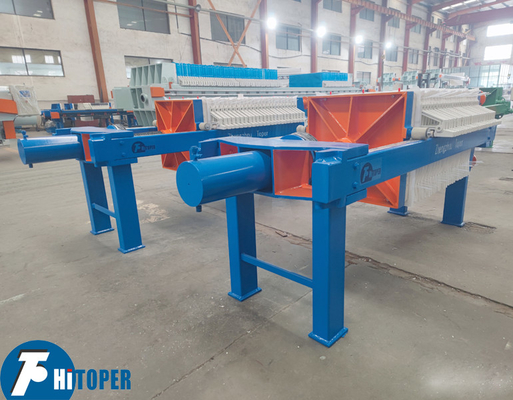

0.6Mpa Filtrating Pressure Chamber Filter Press Machine For Sludge Dewatering With 630mm PP Plate
With the common function of hydraulic closure & opening, add another new design---plate shifter device, when a cycle finish and cake formation. it will help to discharge the cake automatically.
Also this Automatic recessed chamber filter press for sludge dewatering, equipped with autoamtic washing system, after the cake forms, it will help to wash the cake.
The below automatic device is for your choosen:
1. Filter cloth auto varicose: with some slurry with high viscosity, and the cake is difficult to automatically fall off, cloth varicose system we design can change angle of the filter cloth into V shape, at the same time the spring connected with cloth vibrates and the cake fall off.
2. Auto bomb door: during the filtration of the filter press, there are maybe a drip between the filter plates, then the bomb door will collect the leakage, then avoid pollution in the work site, but also avoid the cake moisture increase under the filter press.
3. Auto cloth washing system: connected with high pressure water pump, when the filter press stops work, or when you need, it will help to wash the cloths and be smooth, so that to recover the filtering speed and extend the usage life.
4. Belt conveyor: It will placed under the filter press, delivery the filter cake together to one side of the filter press, better for further handle.
This chamber filter press is hot sale in the below scope:
Widely used in mining ,metallurgy,petroleum,chemical ,environmental protection,electroplating ,food,oil,biological,beverage,textiles,printing and dreing,papermaking,inorganic salt,coal washing ,sewage treatment,ceramics,leather such industries.
Our filter press basic technical parameters.
| Type |
Filter area (m2) |
Filter plate size (mm) |
Filter cake thickness (mm) |
Filter chamber volume (L) |
Filter plate number (PCS) |
Filtrating pressure (MPa) |
Motor power (KW) |
Weight (Kg) |
Dimension (mm) (L×W×H) |
| XY4/450-30U | 4 | 450×450 | 30 | 60 | 9 | 0.6 | 2.2 | 860 | 1950×700×900 |
| XY6/450-30U | 6 | 91 | 14 | 910 | 2200×700×900 | ||||
| XY8/450-30U | 8 | 121 | 19 | 960 | 2450×700×900 | ||||
| XY10/450-30U | 10 | 151 | 24 | 1010 | 2700×700×900 | ||||
| XY12/450-30U | 12 | 182 | 29 | 1060 | 2950×700×900 | ||||
| XY15/450-30U | 15 | 225 | 36 | 1130 | 3300×700×900 | ||||
| XY16/450-30U | 16 | 243 | 39 | 1160 | 3450×700×900 | ||||
| XY15/630-30U | 15 | 630×630 | 226 | 18 | 1725 | 2640×900×1100 | |||
| XY20/630-30U | 20 | 297 | 24 | 1993 | 3940×900×1100 | ||||
| XY30/630-30U | 30 | 452 | 37 | 2360 | 3590×900×1100 | ||||
| XY40/630-30U | 40 | 595 | 49 | 2788 | 4300×900×1100 | ||||
| XY30/800-30U | 30 | 800×800 | 460 | 23 | 2170 | 3700×1400×1300 | |||
| XY40/800-30U | 40 | 595 | 30 | 2450 | 4300×1400×1300 | ||||
| XY50/800-30U | 50 | 748 | 38 | 2700 | 4840×1400×1300 | ||||
| XY60/800-30U | 60 | 902 | 46 | 2980 | 5440×1400×1300 | ||||
| XY70/800-30U | 70 | 1056 | 54 | 3250 | 6040×1400×1300 | ||||
| XY30/870-30U | 30 | 870×870 | 460 | 23 | 2580 | 3180×1200×1300 | |||
| XY40/870-30U | 40 | 595 | 30 | 2925 | 3570×1200×1300 | ||||
| XY50/870-30U | 50 | 748 | 38 | 3318 | 4110×1200×1300 | ||||
| XY60/870-30U | 60 | 902 | 46 | 3712 | 4550×1200×1300 | ||||
| XY70/870-30U | 70 | 1056 | 54 | 4106 | 4990×1200×1300 | ||||
| XY80/870-30U | 80 | 1210 | 62 | 4561 | 5430×1200×1300 |
