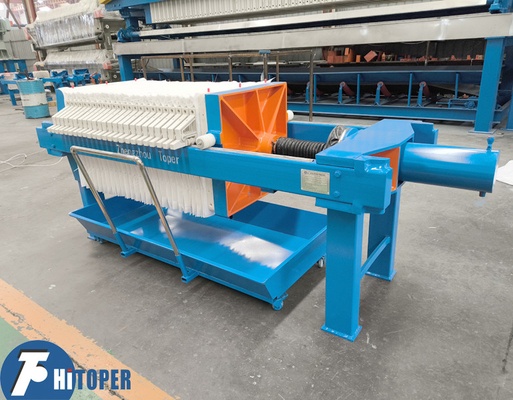

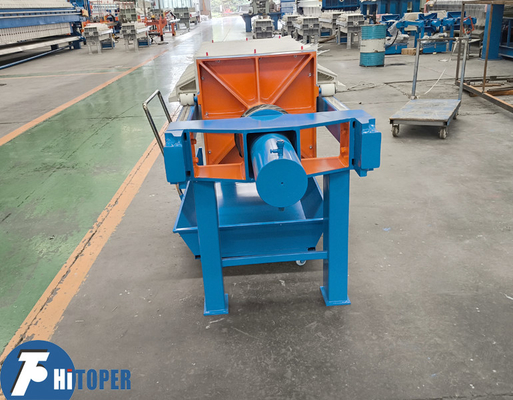

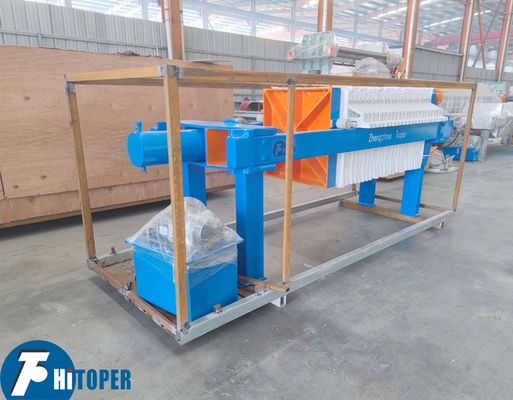

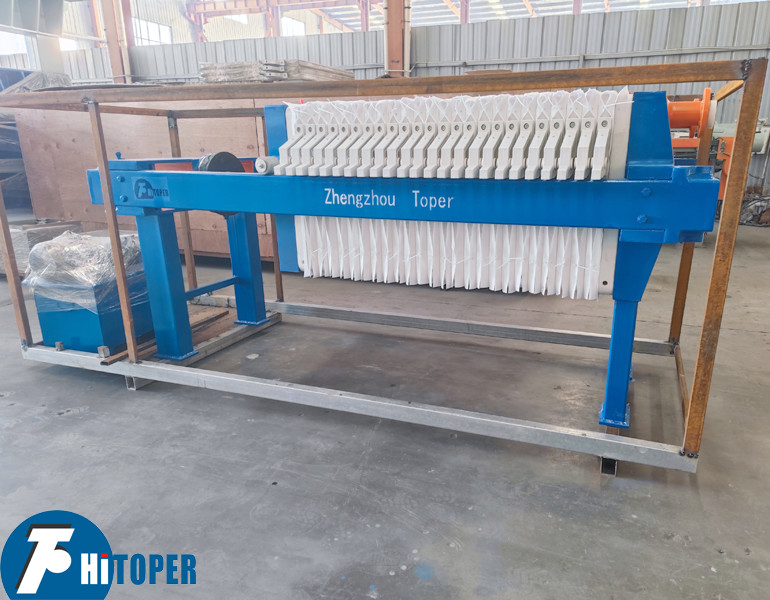

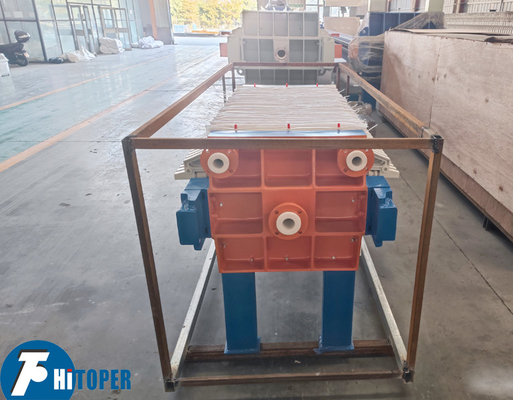

630X630mm Chamber Plate Hydraulic Pressing Solid-liquid Separation Filter Machine

630X630mm Chamber Plate Hydraulic Pressing Solid-liquid Separation Filter Machine ​

This filter press is hot usage in widely applied in petroleum, chemical, metallurgy, environmental protection, food, beverage, pharmaceutical, sugar, starch, paper, coal washing, ceramics, mineral processing and various sewage treatment industries’ separation the solid-liquid.

Chamber filter press description,

Filter press consists of frame, filter plate, pressing system. and electric control cabinet.

Frame consistes of base, push plate, tail plate and beam and frame supports the pressing device and filter plates.

Filter plate are installed on the beam between tail plate and push plate, with filter cloth sandwiched in them.

Structure of plate-frame type and chamber filter press is the same. Except the filtering part that consiste of one plate, one frame and fitler cloth, with filter chamber between plate and frame.

Liquid flow of filter press can be divided into open flow and close stream. Open flow refers to that the filtrate is discharge directly from the outlet of filter plate, close flow refers to that the filtrate is collected from various filter plate before being discharged out of the filtrate port.

Chamber filter press operation,

In operation, the pressing device drives the push plate to press the filter plate and filter cloth between push plate and tail plate. Filter chamber are formed between pressed filter plates and materials get into the filter chambers through the feeding inlet of tail plate. Solid particles are remained in filter chambers forming into cakes, while liquid is discharged our of the machine throufh press cake and filter cloth. To wash the press cakes, washing water can be introduced through the washing inlet of the tail plate. In similar manner, drying the fitler cakes with compressed air going into the washing inlet.

Chamber filter press basic technical parameter:

Different series of our products as below:

1. Common chamber filter press

2. Membrane filter press, have the function of second-squeeze, to give you a lower cake moisture.

3. Stainless steel filter press, hot sale food, medicine, and chemistry industry.

4. Cast iron filter press, which can bear high temperature slurry like 300 ℃ or higher.

5. Round plate filter press, the filtration pressure can be 1.5Mpa, hot sale in kaolin, clay, ceramic and so on slurry.

6. Belt filter press, continuous working and better used for human waste and so on.

7. Bag filter and other smaller filters.

8. Filter plate, filter cloths and other accessories.

9. Common manual feed & discharge centrifuge

10. Automatic feed & discharge centrifuge

11. Decanter centrifuge, continuous working with a big capacity.

12. Tubular centrifuge and disc centrifuge with a higher separation factor to separate the slurry has lower particle content, and small specific gravity difference between solid phase and liquid phase.
