| Place of Origin: | China |
| Brand Name: | TOPER |
| Certification: | CE |
| Model Number: | XY30/630-30U |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export standard wooden package. |
| Delivery Time: | 10-15 working days after receive your payment |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union |
| Supply Ability: | 500 sets per month for this chamber filter press |
| Filter Area: | 30m2 | Plate Size: | 630*630mm |
|---|---|---|---|
| Chamber Volume: | 452L | Plate Number: | 37pcs |
| Filter Pressure: | 0.6Mpa | Cake Discharge: | Manual By Person One By One |
| Motor: | 2.2kw | Compression: | Hydraulic Unit |
| Application: | Food,beverage,chemcial,mineral,pharmacy,biological Etc. | Condition: | New |
| Automatic Grade: | Semi-Automatic | Voltage: | 380V/220V /400-450V/Customized |
| Certification: | CE | Filter Medium: | Filter Cloth |
| Color: | Blue Or Customized | Conditon: | New |

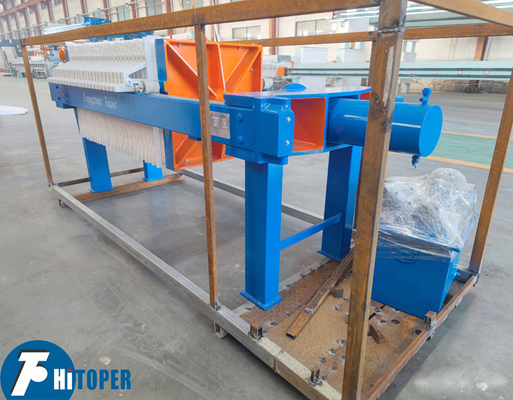

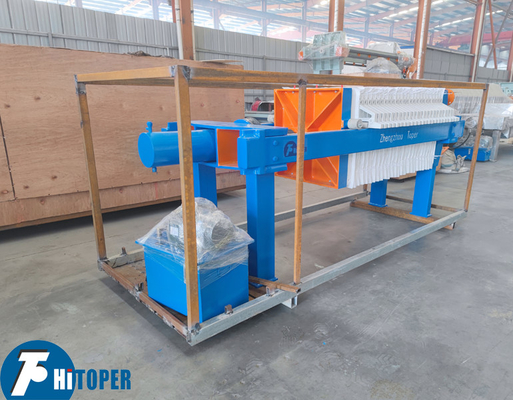

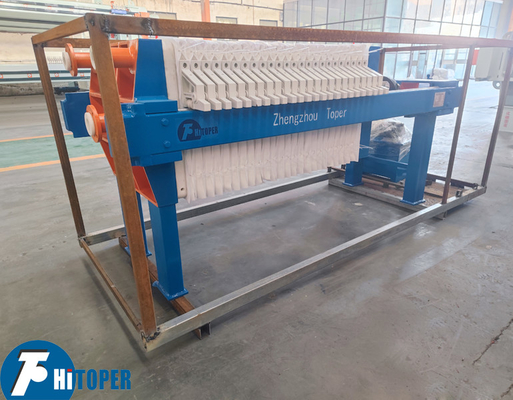

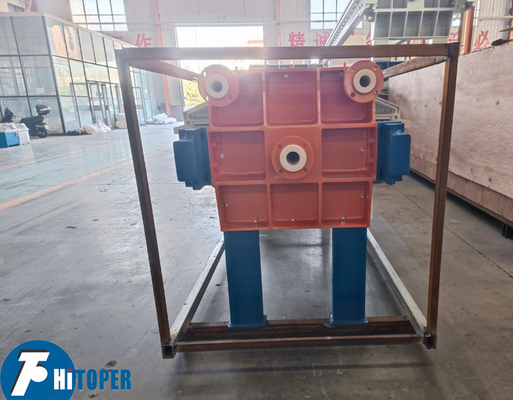

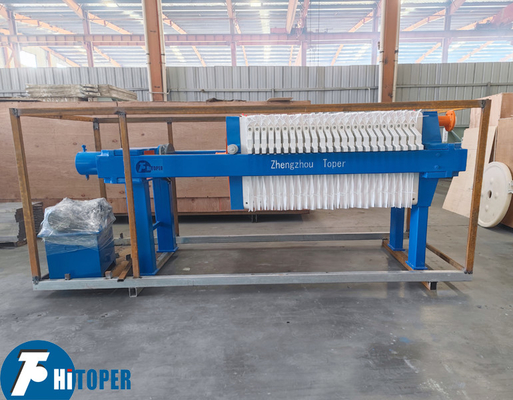

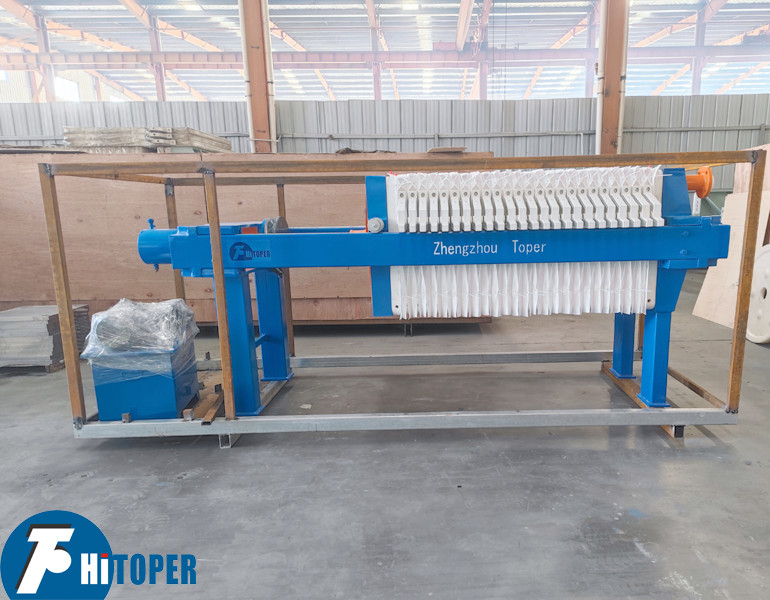

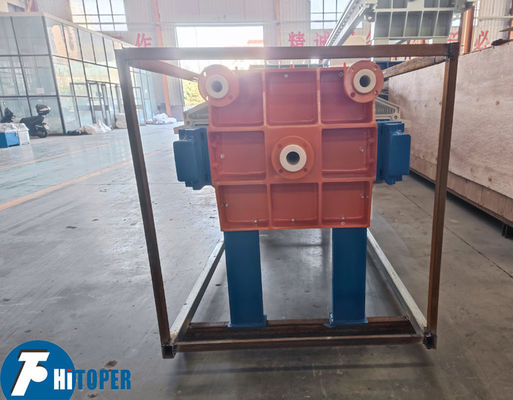

Chemical Filter Press Magnesium Sulphate Filtration For Fertilizer Plant Separation
Features:
Adopting the patent techniques, Moulding processthe reinforced polypropylene into chamber plate featuring high intensity, light weight, anti-corrosion, acid and alkaline resistant, poison-less and smell-less;
Auto. plate separate system. It is controlled by electric system orPLC control system;
The supporter is of welded steel structure with high strength for stress caused by cake weight and high pressure;
Adopting auto. hydraulic system(auto. open and closed)with auto. maintaining pressure, and the max. pressure is 25Mpa to ensure the excellent sealing performance during filter;
Press the button on the electrical control board equipped with safe device to ensure safety to operators.
Application:
Solid-liquid separation of suspensions of all kinds, prevent fruitful in a wide spectrum of industries such as coal, petrochemical, metallurgy, pharmaceutical, light industry, food processing and textile, as well as environmental protection
Technical parameter:
| Type |
Filter area (m2) |
Filter plate size(mm) |
Filter cake thickness (mm) |
Filter chamber volume (L) |
Filter plate number (PCS) |
Filtrating pressure (MPa) |
Motor power (KW) |
Weight (Kg) |
Dimension (mm) (L×W×H) |
| XY4/450-30U | 4 | 450×450 | 30 | 60 | 9 | 0.6 | 2.2 | 860 | 1950×700×900 |
| XY6/450-30U | 6 | 91 | 14 | 910 | 2200×700×900 | ||||
| XY8/450-30U | 8 | 121 | 19 | 960 | 2450×700×900 | ||||
| XY10/450-30U | 10 | 151 | 24 | 1010 | 2700×700×900 | ||||
| XY12/450-30U | 12 | 182 | 29 | 1060 | 2950×700×900 | ||||
| XY15/450-30U | 15 | 225 | 36 | 1130 | 3300×700×900 | ||||
| XY16/450-30U | 16 | 243 | 39 | 1160 | 3450×700×900 | ||||
| XY15/630-30U | 15 | 630×630 | 226 | 18 | 1725 | 2640×900×1100 | |||
| XY20/630-30U | 20 | 297 | 24 | 1993 | 3940×900×1100 | ||||
| XY30/630-30U | 30 | 452 | 37 | 2360 | 3590×900×1100 | ||||
| XY40/630-30U | 40 | 595 | 49 | 2788 | 4300×900×1100 | ||||
| XY30/800-30U | 30 | 800×800 | 460 | 23 | 2170 | 3700×1400×1300 | |||
| XY40/800-30U | 40 | 595 | 30 | 2450 | 4300×1400×1300 | ||||
| XY50/800-30U | 50 | 748 | 38 | 2700 | 4840×1400×1300 | ||||
| XY60/800-30U | 60 | 902 | 46 | 2980 | 5440×1400×1300 | ||||
| XY70/800-30U | 70 | 1056 | 54 | 3250 | 6040×1400×1300 | ||||
| XY30/870-30U | 30 | 870×870 | 460 | 23 | 2580 | 3180×1200×1300 | |||
| XY40/870-30U | 40 | 595 | 30 | 2925 | 3570×1200×1300 | ||||
| XY50/870-30U | 50 | 748 | 38 | 3318 | 4110×1200×1300 | ||||
| XY60/870-30U | 60 | 902 | 46 | 3712 | 4550×1200×1300 | ||||
| XY70/870-30U | 70 | 1056 | 54 | 4106 | 4990×1200×1300 | ||||
| XY80/870-30U | 80 | 1210 | 62 | 4561 | 5430×1200×1300 |
