| Place of Origin: | China |
| Brand Name: | TOPER |
| Certification: | CE |
| Model Number: | DZCR300-10 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD1950/SET |

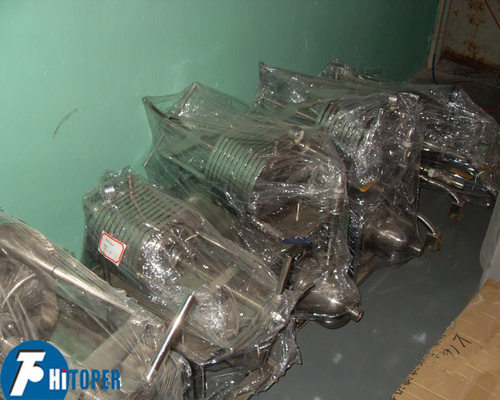

| Packaging Details: | Export standard wooden package. |
| Delivery Time: | 15 days after receive your payment |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union |
| Supply Ability: | 200 sets per month. |
| Filtration Area: | 0.7m2 | Filter Plate Size: | 300mm |
|---|---|---|---|
| Filter Plate And Number Number: | 10pcs | Filtrating Pressure: | 0.15Mpa |
| Motor Power: | 0.75kw | Construction Material: | SS304, SS316L. |
| Flow Rate: | 4t/h | Voltage: | Customized As You Need |
| Dimension: | 700*500*800mm |

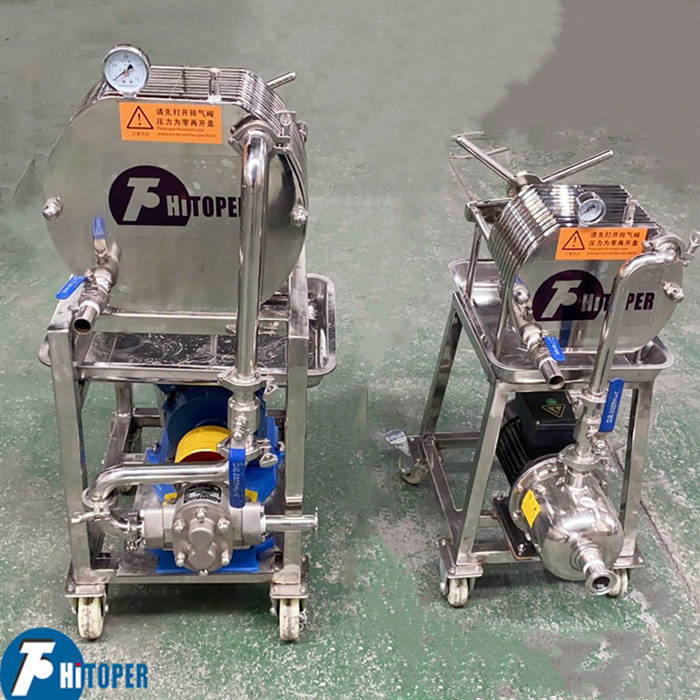

Working principle :
The suspended solution is pumped into filter chamber, under the feeding pressure, the filtrate passs through the filter media and then discharged from the outlet. The solid will becomes to filter cakes. Thus realize solid liquid separation.
Notes:
If needlarge flow capacity filter, it can be customized manufactured
Pressure pump is to be explosion-proof motor and Grundfos pumps up the difference.
Technical data:
|
Model |
Layer |
Filter area ( m2) |
The size of filter material (mm) |
Filter precision (μm) |
Filtration pressure (MPa) |
Water flow (t/h) |
Motor power (KW) |
Overall dimension (mm) (L×W×H) |
| DZCR-100 | 10 | 0.078 | Ф100 | 0.8 | 0.15 | 0.8 | 0.55 | 600×300×600 |
| DZCR-150 | 10 | 0.17 | Ф150 | 0.8 | 0.15 | 1.5 | 0.75 | 650×380×650 |
| DZCR-200 | 10 | 0.34 | Ф200 | 0.8 | 0.15 | 2 | 1.1 | 650×400×700 |
| DZCR-300 | 10 | 0.7 | Ф300 | 0.8 | 0.15 | 4 | 1.1 | 700×500×800 |
| DZCR-400 | 10 | 1.25 | Ф400 | 0.8 | 0.15 | 6 | 1.1 | 900×600×1000 |
| DZCR-400 | 16 | 2 | Ф400 | 0.8 | 0.15 | 9 | 1.5 | 1000×600×1000 |
| DZCR-400 | 20 | 2.5 | Ф400 | 0.8 | 0.2 | 10 | 1.5 | 1100×600×1000 |
| DZCR-400 | 32 | 4 | Ф400 | 0.8 | 0.3 | 13 | 2.2 | 1320×600×1000 |
| DZF-200 | 10 | 0.4 | 200X200 | 0.8 | 0.15 | 3 | 1.1 | 650×380×650 |
| DZF-300 | 10 | 0.9 | 300X300 | 0.8 | 0.15 | 6 | 1.1 | 700×500×800 |
| DZF-400 | 10 | 2 | 400x400 | 0.8 | 0.15 | 10 | 1.5 | 900×600×1000 |
| DZF-400 | 20 | 3 | 400x400 | 0.8 | 0.15 | 12 | 1.2 | 1100×600×1000 |
| DZF-400 | 26 | 4 | 400x400 | 0.8 | 0.2 | 15 | 2.2 | 1150×600×1000 |
| DZF-400 | 32 | 5 | 400x400 | 0.8 | 0.2 | 18 | 2.2 | 1200×600×1000 |
| DZF-400 | 38 | 6 | 400x400 | 0.8 | 0.3 | 21 | 2.2 | 1300×600×1000 |
| DZF-400 | 44 | 7 | 400x400 | 0.8 | 0.3 | 23 | 3 | 1350×600×1000 |
