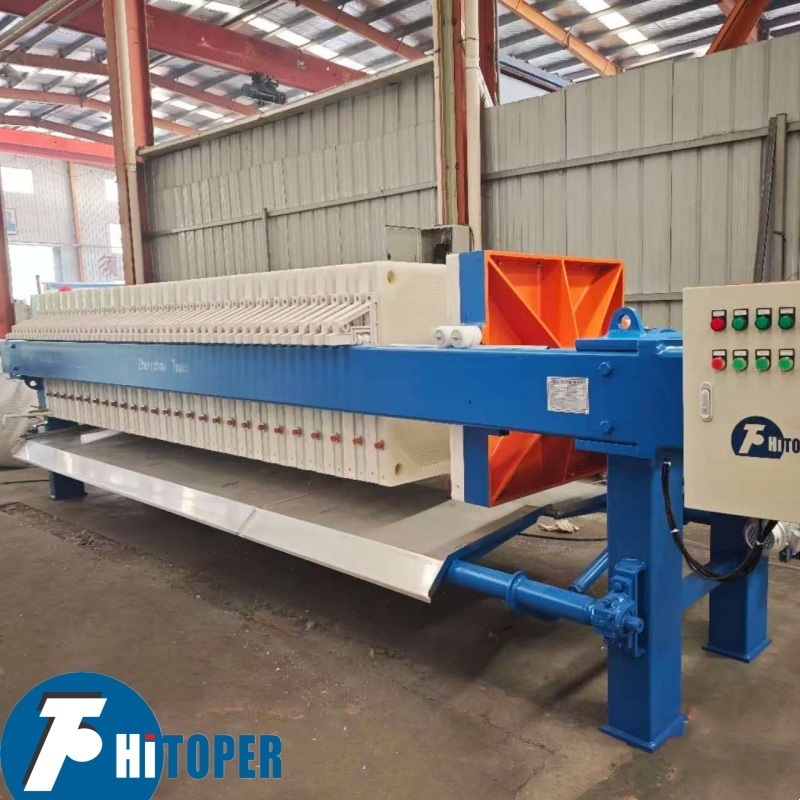

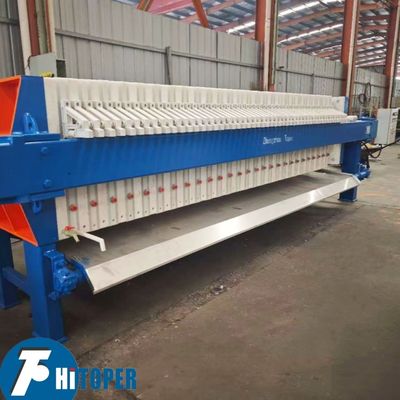

High Efficiency Mining Stone Sludge Dewatering Machine Membrane Filter Press Equipment

High Efficiency Mining Stone Sludge Dewatering Machine Membrane Filter Press Equipment

    • High Efficiency Mining Stone Sludge Dewatering Machine Membrane Filter Press Equipment
    • High Efficiency Mining Stone Sludge Dewatering Machine Membrane Filter Press Equipment
    • High Efficiency Mining Stone Sludge Dewatering Machine Membrane Filter Press Equipment
  • High Efficiency Mining Stone Sludge Dewatering Machine Membrane Filter Press Equipment

    Product Details:

    Place of Origin: China
    Brand Name: TOPER
    Certification: CE
    Model Number: XG10/870-30U

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Best factory price
    Packaging Details: Export standard wooden package.
    Delivery Time: 20-30 working days after receive your payment
    Payment Terms: L/C, T/T, D/A, D/P, Western Union
    Supply Ability: 500 sets per month for this membrane filter press
    Contact Now
    Detailed Product Description
    Filter Area: 10m2 Filter Plate Size: 870*870mm
    Filter Chamber Volume: 150L Filter Number: 9pcs
    Filtrating Pressure: 0.6Mpa Motor Power: 4.0kw
    Nice Function: Second Squeeze Function To Give A Lower Cake Moisture. Color: As You Need.
    Filter Plate Material: TPE+PP Filter Medium: Filter Cloth
    Compress Type: Hydraulic Compress Feeding Type: Center Feeding
    Filter Cake Discharge Type: Manual Discharge Condtion: New

    High Efficiency Mining Stone Sludge Dewatering Machine Membrane Filter Press Equipment





    Filter press equipment is one kind Intermittent work separation equipment .The function of the filter press is to get solid -liquid separation , low moisture content ,dry filter cake .The filter press consist of chamber filter plate and diaphragm filter plate , hydraulic power pack , filter cloth .According to customers need , we can also supply closing and opening the filter plate automatically,belt conveyors,automatic washing system , filtrate collecting system, filter cloth shaking system etc. It is high efficiency in separation filed ,easy and simple to operate .The filter press can be controlled by the button on electric control cabinet. Save labor and improve efficiency .





    Working principle of filter press


    1. Closing the filter plate under the hydraulic pressure , make the filter plate formed filter chamber
    2. Feeding slurry into the filter chamber
    3. The liquid through filter cloth , flow out ,the solid left in the filter chamber
    4. Stop feeding slurry when then filter chamber is full with solid , the solid formed filter cake
    5. Filling water or air into membrane filter plate to squeeze the filter cake and make second squeezing . Lower the moisture content of filter cake
    6. Release the pressure , opening the filter plate ,Discharge the filter cake , one cycle is finished



    This membrane filter press consists of membrane plate and filter chamber made of ordered filter plates. The slurry materials are sent to filter chamber by the pressure of feeding pump and then go into filtrating media(filter cloth) to separate solid and liquid in slurry material.When solid in slurry material becomes cake shape, air is sent to membrane to fully squeeze the solid to reduce moisture content. If users have high requirement about filtration of sticky material and moisture content ratio, this machine has its own special characteristics to meet the need.





    Application of this membrane fitler press,



    Urban sewage treatment

    Commodity and Specialty Chemicals

    Pharmaceutical Raw Materials and Intermediates

    Food Products and Ingredients

    Clay and Ceramic Powders

    Dyes and Pigment

    Industrial Waste Dewatering and Recycling

    Oil industry.





    All technical data of our membrane filter press:

    Also we can supply smaller model, like 10m2 model XG10/870-30U, 15m2 model XG15/870-30U and 20m2 model XG20/870-30U.





    Type

    Filter area(m2) Filter plate size(mm) Filter cake thickness(mm) Filter chamber volume(L)

    Filter plate number

    (pcs)

    Filtrating pressure

    (Mpa)

    Motor power

    (kw)

    Weight

    (kg)

    Dimension

    (L×W×H)(mm)

    XG30/870-30U 30 870×870 30 427 23 0.6 4.0 2680 3490×1250×1300
    XG40/870-30U 40 534 29 3050 3880×1250×1300
    XG50/870-30U 50 676 37 3465 4400×1250×1300
    XG60/870-30U 60 818 45 4003 4920×1250×1300
    XG70/870-30U 70 960 53 4584 5240×1250×1300
    XG80/870-30U 80 1103 61 5082 5760×1250×1300
    XG50/1000-30U 50 1000×1000 665 27 0.6 4.0 4352 4270×1500×1400
    XG60/1000-30U 60 808 33 4480 4770×1500×1400
    XG70/1000-30U 70 950 39 5263 5130×1500×1400
    XG80/1000-30U 80 1093 45 5719 5560×1500×1400
    XG100/1000-30U 100 1378 57 6555 6410×1500×1400
    XG120/1000-30U 120 1663 69 7466 7260×1500×1400



    Type

    Filter area

    (m2)

    Filter plate size(mm)

    Filter cake thickness

    (mm)

    Filter chamber volume

    (L)

    Filter plate number

    (pcs)

    Filtrating pressure

    (Mpa)

    Motor power

    (kw)

    Weight

    (kg)

    Dimension

    (L×W×H)

    (mm)

    XGZY80/1250-35U 80 1250×1250 35 1364 29 0.6 4.0 10900 4830×1800×1600
    XGZY100/1250-35U 100 1680 37 11750 5440×1800×1600
    XGZY120/1250-35U 120 2092 45 12600 6060×1800×1600
    XGZY150/1250-35U 150 2547 55 13620 6820×1800×1600
    XGZY160/1250-35U 160 2729 59 14470 7130×1800×1600
    XGZY200/1250-35U 200 3457 73 15320 8200×1800×1600
    XGZY240/1250-35U 240 4093 89 16170 9420×1800×1600
    XGZY250/1250-35U 250 4276 91 17020 9570×1800×1600
    XGZY200/1500-35U 200 1500×1500 3922 49 7.5 26120 7140×2200×2000
    XGZY250/1500-35U 250 4463 61 26930 7730×2200×2000
    XGZY300/1500-35U 300 5274 73 28160 8720×2000×1820
    XGZY350/1500-35U 350 6221 85 29600 10110×2000×1820
    XGZY400/1500-35U 400 7032 99 31500 11260×2000×1820
    XGZY450/1500-35U 450 7844 111 33400 12250×2000×1820
    XGZY500/1500-35U 500 8791 123 33380 13240×2000×1820
    XGZY600/2000-40U 600 2000×2000 40 12000 85 54164 13030×3520×2500
    XGZY700/2000-40U 700 14000 99 58300 14390×3000×2500
    XGZY800/2000-40U 800 16000 107 624460 15770×3000×2500
    XGZY900/2000-40U 900 18000 127 66620 17150×3000×2500
    XGZY1000/2000-40U 1000 20000 141 70780 18530×3000×2500





    Why choose us:



    1. Manufacture experience,

    Since 1997, we have done a lot of innovation and improvement in the field of filter and separation equipment. We are specialized in design of the filter press according to clients’ requirments, the delivery time of a filter press can be 7 days(if no stock).

    2. Technology capacity,

    We join and make the standard of filter press industry in China, All of our products have CE certificate, also they will be tested before delivery.

    3. Our superiority,

    We are in the first class in the field of filter press of China, more than 250,000 m2 land area and continue developing. Filter areas of filter press widely ranges from 1 m2 to 500 m2, you can always choose a right type.

    4. Best after-sales,

    Supply professional operation training, Timely trouble shooting in 24 hours, we will try our best to solve your problems on the basis of no influence of your equipment working.





    High Efficiency Mining Stone Sludge Dewatering Machine Membrane Filter Press Equipment
