450mm plate & Stainless Steel 304 Filter Press for Solid-Liquid Filtration in Beverage Industry

450mm plate & Stainless Steel 304 Filter Press for Solid-Liquid Filtration in Beverage Industry

    • 450mm plate & Stainless Steel 304 Filter Press for Solid-Liquid Filtration in Beverage Industry
    • 450mm plate & Stainless Steel 304 Filter Press for Solid-Liquid Filtration in Beverage Industry
  • 450mm plate & Stainless Steel 304 Filter Press for Solid-Liquid Filtration in Beverage Industry

    Product Details:

    Place of Origin: China
    Brand Name: TOPER
    Certification: CE
    Model Number: BAY5/450-25

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: Negotiable
    Packaging Details: Export standard wooden package.
    Delivery Time: 30 days after receive your payment
    Payment Terms: L/C, T/T, D/A, D/P, Western Union
    Supply Ability: 50 sets per month for this stainless steel filter press
    Contact Now
    Detailed Product Description
    Filter Area: 6m2 Filter Plate Size: 450*450mm
    Filter Chamber Volume: 75L Filter Plate And Number Number: 14pcs
    Number Of Frame: 15pcs Filtrating Pressure: 0.8Mpa
    Material: SS304, SS316L. Cake Thickness: 25mm
    Weight: 1070kg

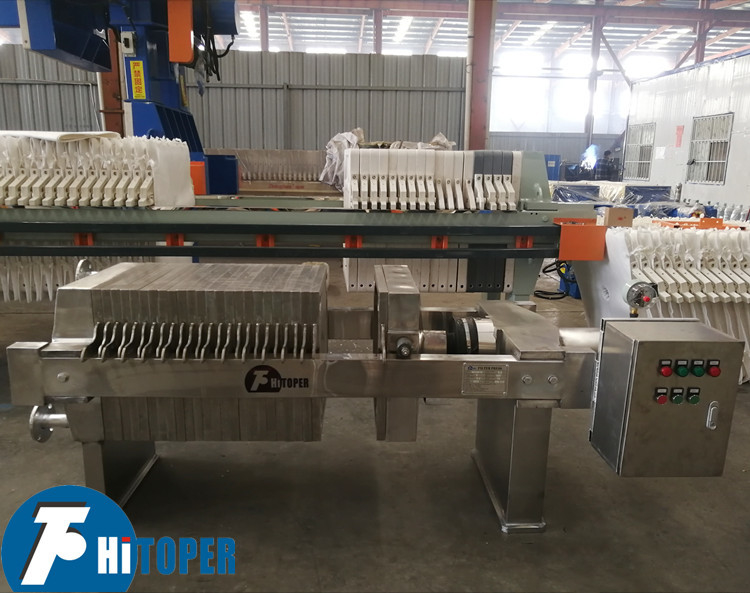

    Stainless steel Plate and Frame SS304 filter press for grape wine,beer solid-liquid filtration refinery





    It is suitable for various industries: liquid medicine, liquor, beverage, juice, syrup, vinegar, oils, fine chemicals, electroplating etc.





    Operation principle

    Suspension is pumped into each closed filter chamber of the filter press by feed pump. Due to pressure, the filtrate is discharged out of machine from outlet through the filter layer and filter cloth, and the residue is kept in the filter box to achieve the solid-liquid separation purpose.





    Specificeation of this stainless steel filter press:

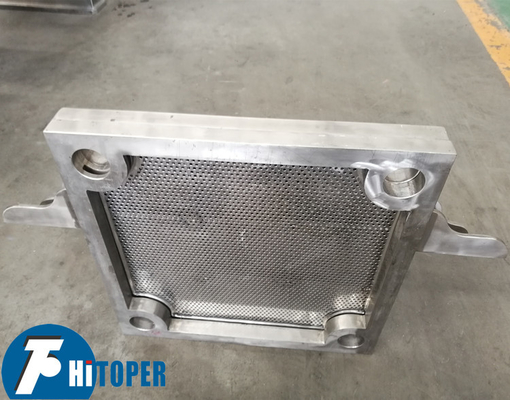

    1. Material: structure-SS304, plate-SS304, SS316L or PP.

    2. Seal material: white silicone rubber, pressure, <0.4Mpa, temperature<120 celsius.

    3. Main dimension: plate thickness, 13mm, individual chamber volume, 4.8L.

    4. Pressing method: Screw/manual hydraulic, others like manual jack, automatic hudraulic system, etc.

    5. Filter media: various filter cloth, filter paper, filter mamebrane, etc.

    6. Filter precision: from 200mesh to 0.22um.





    Our Services


    1). We have professional person on line to advise you the most suitable type of machie according to your requirement.
    2). Provide you comprehensive.easy-understanding and detail information and technical data about the machie you interested;solve your confusions or questions about the machine
    3). Arrange the schedule if you pay a visit to our factory
    4). Send our technical engineer to your area guid the installation,debugging ,training workers and solve the problems if rquired.



    Company Information


    1. Manufacture experience,
    Since 1997, we have done a lot of innovation and improvement in the field of filter and separation equipment. We are specialized in design of the filter press according to clients’ requirments, the delivery time of a filter press can be 10 days(if no stock).
    2. Technology capacity,
    We join and make the standard of filter press industry in China, All of our products have CE certificate, also they will be tested before delivery.
    3. Our superiority,
    We are in the first class in the field of filter press of China, more than 250,000 m2 land area and continue developing. Filter areas of filter press widely ranges from 1 m2 to 500 m2, you can always choose a right type.





    Best after-sales,


    Supply professional operation training, Timely trouble shooting in 24 hours, we will try our best to solve your problems on the basis of no influence of your equipment working.

    Technical data of this stainless steel filter press,



    450mm plate & Stainless Steel 304 Filter Press for Solid-Liquid Filtration in Beverage Industry





    450mm plate & Stainless Steel 304 Filter Press for Solid-Liquid Filtration in Beverage Industry




    FILTER PRESS SERIES:


    Filter presses can be divided into plate and frame type and are used for solidliquid separation of various suspending liquid in intermittent pressure filtration. Filter plates are pressed by pressing devices and suspending liquid is pumped into the filter chamber. Solid particles and separated through filter cloth. The products are simple in structure but good in separating effects, convenient in use, and widely applicable to mining, metallurgy, petroleum, chemical, medicine, textile, printing and dyeing, paper making, foodstuff, alcohol, inorganic salt, coal washing, dyestuff and sewage treatment industries.




    How to order filter press:


    1. Select the model,plate and fram material,pressing mode and filtering form by considering the filter press introduction and parameters.
    2. According to your products,select open flow and close flow ,washable or non-washable,and specify the conditions in the contract.
    3. The unit is provided without pump.To order the unit complete pumps,state it in the contract.
    4. Our company can supply non-standard model to meet your special demands.





    All of our products:

    1. Program-controlled automatic filter press
    2. Membrane filter press
    3. Hydraulic compress filter press
    4. Mechanical compress filter press
    5. Jack filter press
    6. Cast iron plate and frame/chamber filter press
    7. Stainless steel plate and frame filter press
    8. Round plate filter press
    9. Cotton cake filter press
    10. Cardboard filter press
    11. DY belt filter press
    12. DYX high pressure belt filter press
    13. DNY rotary drum thickning/dehydrating belt filter press
    14. Triple-belt thickning and dehydrating filter press
    15. SS type three-foot upper discharge centrifuge
    16. SD type three-foot and filter bag hoist discharge centrifuge
    17. PD type filter bag hoist discharge centrifuge
    18. Centrifuge of up discharge, three foot, clean series SSB, SB
    19. SX type manual top discharge centrifuge
    20. PS type manual top discharge centrifuge
    21. SGZ type automatic scraper bottom discharge centrifuge
    22. PGZ type scarper bottom discharge centrifuge
    23. LW series decanter centrifuge
    24. Tubular centrifuge
    25. Multi-layer stainless steel frame filter
    26. Bag filter
    27. Diatomite filter
    28. Filter plate
    29. Filter cloth
    30. Vacuum disc filter
