| Place of Origin: | China |
| Brand Name: | TOPER |
| Certification: | CE |
| Model Number: | DHC500 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export standard wooden package. |
| Delivery Time: | 40 working days after receive your payment |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union |
| Supply Ability: | 30 sets per month for this disc centrifuge |
| Feeding Way: | By Pump Automatically | Discharge Way: | Discharege Solid Residues Automatically |
|---|---|---|---|
| Rotating Speed: | 6600rpm | Centrifuge Dimension: | 1780x1500x1900mm |
| Centrifuge Weight: | 1720kg | Centrifuge Function: | Purification, Separation |
| Processing Capacity: | 0-8000L/h | Motor Power: | 15Kw |
| Control Way: | Frequency Conversion Control Cabinet |

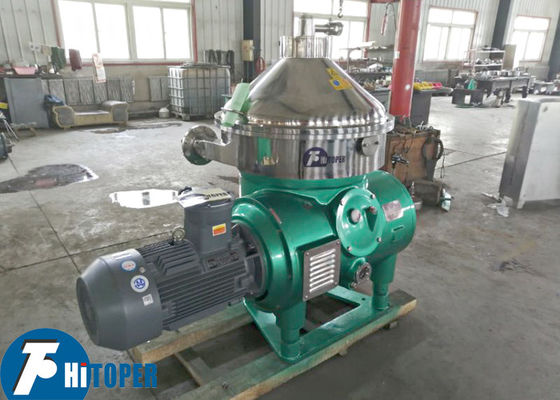

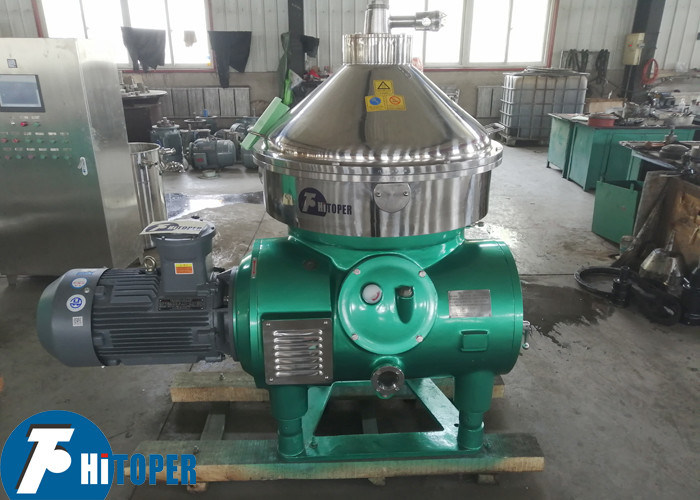

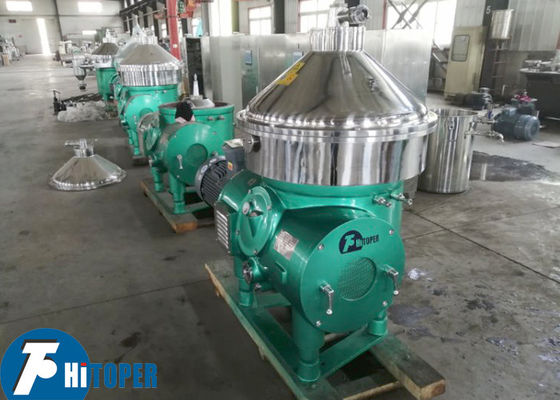

High speed stainless steel bowl disc centrifuge used in avocado oil purification line
Disc centrifuge is one kind high efficiency ,automatic separation equipment ,it can discharge material automatically , is one kind fine separation equipment ,suitable for material with less solid ,in usually, it is suitable for the solid content less than 3%.The solid size smaller than 0.5mm
The working principle of high speed stainless steel bowl disc centrifuge used for avocado oil purification
Separation takes place inside a rotating bowl. The feed is introduced to the rotating centrifuge bowl from the top via a
stationary inlet pipe (1),and is accelerated in the distributor(2),which was specially designed to ensure smooth acceleration of the feed liquid(4). Leaving the distributor, the feed enters the disc stack(3). The separation into liquid-liquid-solid takes place between the discs, with the oil phase moving through the disc stack to the centre. When it reaches the centre, it is discharged through hole (5) and ejected into the collecting frame. The water and heavy solid separated from the oil move to the
periphery, and the water flows via channels in the top disc(6) to the paring chamber, where it is pumped out of the rotor by means of a built-in paring disc(7).During purification, hot water is fed into the inlet of the bowl before the process liquid is
introduced. The water forms a seal around the outer edge of the top disc. The solid collect in the periphery where they are
discharged intermittently via the centrifuge cyclone. The solid are discharged by means of a hydraulic system, which forces the sliding bowl bottom(8)to drop down at preset suitable intervals, thus opening the solid ports at the bowl periphery
Disc centrifuge is the core equipment is purification and extraction.Water and solid will be removed by disc centrifuge , get the pure oil and ingredients .The disc centrifuge are widely used in food ,oil,mineral,medicine,milk etc purification and extraction.
This disc centrifuge technical parameters.
| Item | DHC300 | DHC400 | DHC500 | DHC550 | DHC730 |
|
Drum inner diameter |
300 | 400 | 500 | 550 | 730 |
| Drum speed (r/min) | 7300 | 7056 | 6600 | 6200 | 4500 |
| Settlement area (cm²) | 17.2×10^7 | 28.5×10^7 | 35×10^7 | 67×10^7 | 90×10^7 |
|
Input capacity for water(t/h) |
2 | 5 | 10 | 15 | 35 |
| Motor power (kw) | 4.0 | 7.5 | 11 | 18.5 |
55 |
