| Place of Origin: | China |
| Brand Name: | TOPER |
| Certification: | CE |
| Model Number: | TBSJL400-9.5 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export standard wooden package. |
| Delivery Time: | 30-40 working days after receive your payment |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union |
| Supply Ability: | 20 sets per month for this stainless steel filter press |
| Filter Area: | 9.5m2 | Filter Plate Size: | 450*450mm |
|---|---|---|---|
| Filter Plate And Number Number: | 71pcs | Filtrating Pressure: | 0.3Mpa |
| Motor Power: | 2.2kw | Material: | SS304, SS316L. |
| Material: | Stainless Steel | Function: | Solid-liquid Separation |
| Application: | Food,beverage,chemcial,mineral,pharmacy,biological Etc. | Conditon: | New |
| High Light: | filter press machine,filter press equipment |
||

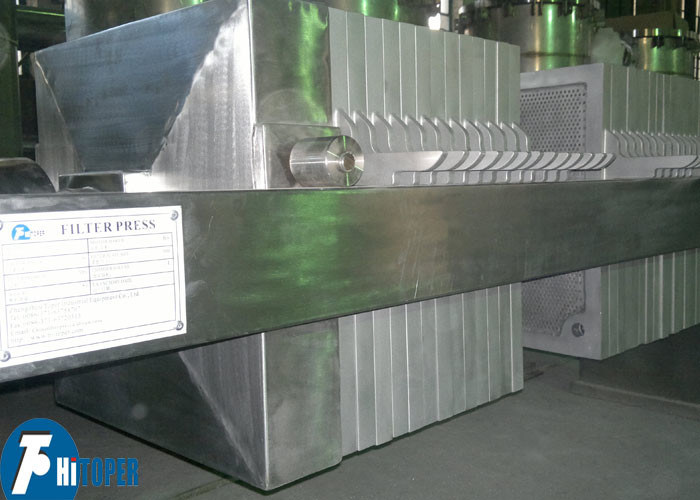

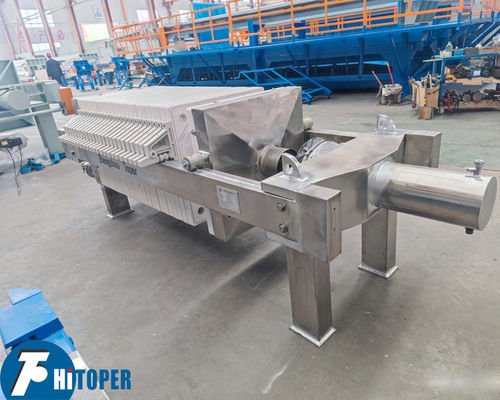

Stainless Steel Manual Hydraulic Filter Press Machine For Honey Separation
It is suitable for various industries: liquid medicine, liquor, beverage, juice, syrup, vinegar, oils, fine chemicals, electroplating etc.
How to order filter press:
1. Select the model,plate and fram material,pressing mode and filtering form by considering the filter press introduction and parameters.2. According to your products,select open flow and close flow ,washable or non-washable,and specify the conditions in the contract.3. The unit is provided without pump.To order the unit complete pumps,state it in the contract.4. Our company can supply non-standard model to meet your special demands.
Specificeation of this stainless steel filter press:
1. Material: structure-SS304, plate-SS304, SS316L or PP.2. Seal material: white silicone rubber, pressure, <0.4Mpa, temperature<120 celsius.3. Main dimension: plate thickness, 13mm, individual chamber volume, 4.8L.4. Pressing method: Screw/manual hydraulic, others like manual jack, automatic hudraulic system, etc.5. Filter media: various filter cloth, filter paper, filter mamebrane, etc.6. Filter precision: from 200mesh to 0.22um.
Technical data of this stainless steel filter press,
| Model |
Filter area (m2) |
No. of plate (pcs) |
Reference flow (T/h) |
Plate size (mm) |
Dimension (mm) |
| TBSJL400-2 | 2 | 15 | 1-2 | 400X400 | 1250X660X1300 |
| TBSJL400-3 | 3 | 21 | 1-3 | 400X400 | 1350X660X1300 |
| TBSJL400-4 | 4 | 31 | 3-4 | 400X400 | 1550X660X1300 |
| TBSJL400-6 | 6 | 45 | 4-6 | 400X400 | 1750X660X1300 |
| TBSJL400-8.5 | 8.5 | 61 | 6-8 | 400X400 | 2100X660X1300 |
| TBSJL400-9.5 | 9.5 | 71 | 8-10 | 400X400 | 2300X660X1300 |
| TBSJL600-14 | 14 | 41 | 10-13 | 600X600 | 1750X870X1350 |
| TBSJL600-21 | 21 | 61 | 15-20 | 600X600 | 2100X870X1350 |
| TBSJL600-24 | 24 | 71 | 20-25 | 600X600 | 2250X870X1350 |
| TBSJL600-35 | 35 | 101 | 25-30 | 600X600 | 2800X870X1350 |
Packaging & Shipping
Reliable and fast package and variety kinds of transportation way to insure you get the goods in time and safely.
Our Services
1). We have professional person on line to advise you the most suitable type of machie according to your requirement.2). Provide you comprehensive.easy-understanding and detail information and technical data about the machie you interested;solve your confusions or questions about the machine.3). Arrange the schedule if you pay a visit to our factory.4). Send our technical engineer to your area guid the installation,debugging ,training workers and solve the problems if rquired.
Company Information
1. Manufacture experience,Since 1997, we have done a lot of innovation and improvement in the field of filter and separation equipment. We are specialized in design of the filter press according to clients’ requirments, the delivery time of a filter press can be 10 days(if no stock).2. Technology capacity,We join and make the standard of filter press industry in China, All of our products have CE certificate, also they will be tested before delivery.3. Our superiority,We are in the first class in the field of filter press of China, more than 250,000 m2 land area and continue developing. Filter areas of filter press widely ranges from 1 m2 to 500 m2, you can always choose a right type.4.Best after-sales,Supply professional operation training, Timely trouble shooting in 24 hours, we will try our best to solve your problems on the basis of no influence of your equipment working.
FILTER PRESS SERIES:
Filter presses can be divided into plate and frame type and are used for solidliquid separation of various suspending liquid in intermittent pressure filtration. Filter plates are pressed by pressing devices and suspending liquid is pumped into the filter chamber. Solid particles and separated through filter cloth. The products are simple in structure but good in separating effects, convenient in use, and widely applicable to mining, metallurgy, petroleum, chemical, medicine, textile, printing and dyeing, paper making, foodstuff, alcohol, inorganic salt, coal washing, dyestuff and sewage treatment industries.
