| Place of Origin: | China |
| Brand Name: | TOPER |
| Certification: | CE |
| Model Number: | DNY500 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard container |
| Delivery Time: | about 30 working days after receive your payment |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union |
| Supply Ability: | 10 sets per month for this belt filter press |
| Filter Belt Width: | 500mm | Capacity: | 3-5.2m3/h |
|---|---|---|---|
| Dry Volume: | 45-78kg/h | Moisture Content: | 63-84.5% |
| Motor Power: | 0.75kw | Reference Dimension: | 2600*1050*2175mm |
| Weight: | 830kg | Application: | Pinting And Dyeing, Urban Waste Water, Chemical |
| Conditining Mixer Power: | 0.37kw | Drum Thickener Power: | 0.37kw |
| Function: | Dehydration,thickening And Concentration | Operation Type: | Continuous Automatic Working |
| Conditon: | New | Voltage: | 380V/220V /400-450V/Customized |
| Highlight: | industrial filter press,filter press unit |
||

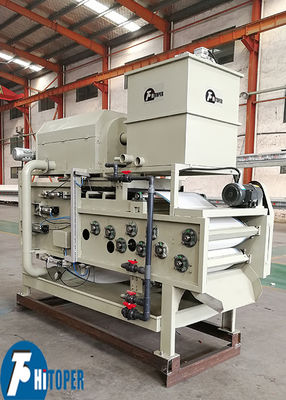

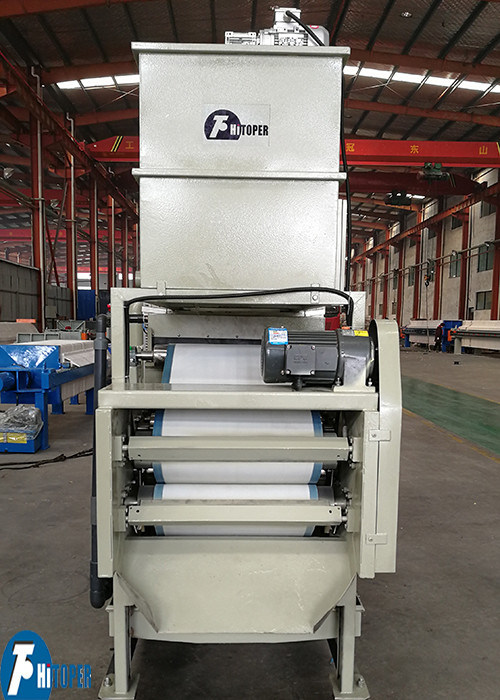

500mm Filter Belt Width Belt Filter Press For Metallurgy Sludge Dewatering Of High Automation Level
Belt filter press introduction
The belt filter is an industrial machine whose dehydration is a mechanical process designed to separate liquid from solid waste (especially sludge). It is mainly used for sludge dehydration in the chemical industry, mining industry and water treatment. The machine operates continuously, has a high degree of automation, is energy-saving, efficient, easy to use and maintain, and is an ideal equipment for sludge treatment.
Based on the introduced advanced technology, DNY belt filter press is developed and designed based on DY belt filter press. DNY belt filter press is one ideal sludge-dewatering equipment which is widely used in chemical, coal, paper making, food staff, urban sewage and other industries. It also can be used as a liquid-solid separating machine. It features in high efficiency, good dewatering effects and low consumption. Using this kind of DNY belt filter press, no need of concentrating pond, thus saving the investment and floor area.
How folding works
After the concentrated sludge and a certain concentration of flocculant are fully mixed in a static and dynamic mixer, the small solid particles in the sludge are aggregated into a large flocculent mass, and free water is separated at the same time. The sludge is transported to the concentrated gravity dewatering filter belt, and free water is separated under the action of gravity to form sludge in a non-flowing state, and then it is clamped between the upper and lower mesh belts and passes through the wedge-shaped pre-pressure zone and low pressure. The zone and high-pressure zone are gradually squeezed under the action of small to large squeezing and shearing forces to achieve the maximum degree of mud and water separation, and finally a filter cake is discharged.
Advantages of DNY belt filter press:
1.It is a integration equipment, automatic control, continuous operation;
2.Low power consumption, long service life;
3.High concentration dehydration efficiency and high solid content of mud cake;
4.Easy to use and maintain;
5.Low noise, economic and reliable, with wide range of application.
Application
Municipal WWTP Sludge
Pulp and Paper Sludge
Water Plant Sludge
Aggregate Fines
Septage
Meat Processing Sludge
Canning Sludge
Animal Manure
Ink Sludge
Mineral Slurries
Grease Trap Waste
Food Products
Belt filter press technical parameters:
|
Type |
DNY750 | DNY1000 | DNY1500 | DNY2000 | DNY2500 | DNY3000 | ||
| Filter width(mm) | 750 | 1000 | 1500 | 2000 | 2500 | 3000 | ||
|
Capacity Into concentration (s.s.1.5~2.5%) |
6～9 | 8～12 | 12～18 | 16～24 | 20～30 | 28～38 | ||
| Dry volume(kg/hr) | 110～225 | 150～300 | 225～450 | 300～600 | 375～750 | 420～950 | ||
| Moisture content(%) | 63～84.5 | 63～84.5 | 63～84.5 | 63～84.5 | 63～84.5 | 63～84.5 | ||
| Motor power(HP) | 1.5 | 1.5 | 1.5 | 2.2 | 2.2 | 2.2 | ||
|
Reference Dimensions (mm) |
L | 4250 | 4250 | 4250 | 4250 | 4250 | 4250 | |
| W | 1630 | 1880 | 2380 | 2920 | 3420 | 3920 | ||
| H | 2100 | 2100 | 2100 | 2100 | 2100 | 2100 | ||
| Weight(kgs) | 2570 | 2920 | 3590 | 4490 | 5520 | 6220 | ||
Belt filter press typical slurry usage:
