|Place of Origin:||China|
|Minimum Order Quantity:||Negotiable|
|Packaging Details:||Export standard wooden package.|
|Delivery Time:||40 working days after receive your payment|
|Payment Terms:||L/C, T/T, D/A, D/P, Western Union|
|Supply Ability:||30 sets per month for this disc centrifuge|
|Settlement Area:||35×10^7cm2||Input Capacity For Water:||10t/h|
|Motor Power:||11kw||Control Method:||PLC+Frequency Converter|
|Feeding Method:||Pump Feeding Or Manual Or Other||Operation Principle:||Centrifugal Force|
disc stack separator,
industrial centrifuge machine

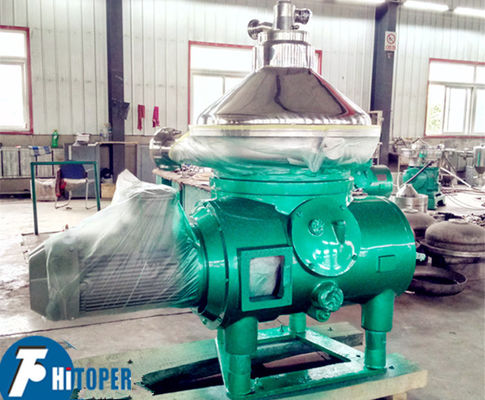

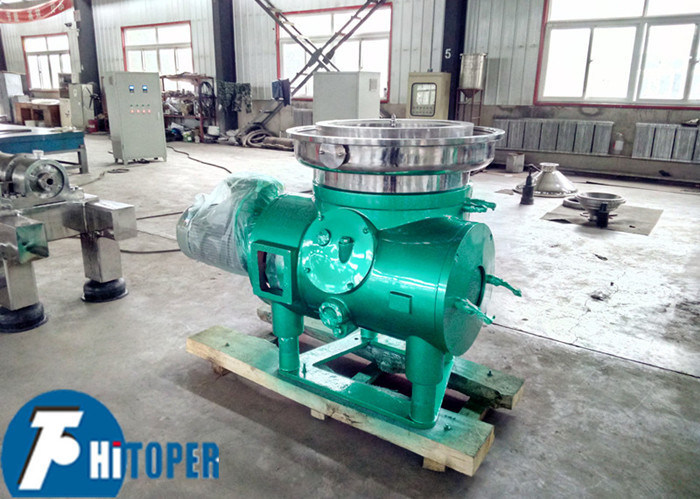

Automatic dischargeing type coconut oil separation disc centrifuge
The disc centrifuge is a high efficiency, large output, advanced automation equipment.suitable for low solid content slurry, a smaller proportion of poor separation of immiscible liquids, pharmaceutical, food, chemical, biological products, beverage products and other necessary equipment industries.
According to the separation mode can be divided into three-phase separator (liquid - liquid - solid) disc separatoand two-phase separation (liquid - solid) disc separa.
While the disc type automatic slag separator in different ways based on, can be divided into manual type automatic slagging disc separator and fully PLC controlled automatic slagging disc separator
According to the disc separation inside the slag film in different ways, disc separator can be divided into piston slag disc separator with nozzle slag separator, and can be selected according to the characteristics of slag material way.
Features of the disc centrifuge separator :
This disc centrifuge separation factor is high, strong separation ability, the model can realize manual slagging or PLC program control time automatic slag, reducing labor intensity, improve work efficiency, hydraulic coupling to replace the traditional friction plate clutch , On-site non-dust clean white health.
Depending on the need to use automatic or manual operation. Can also achieve long-range self-control operation. Machine structure is simple, easy maintenance.
Function of the disc centrifuge separator ---Separation function
Fluid flow inside the drum:
The mixed liquid is separated from the liquid inlet through the inlet pipe into the cloth tray and is reallocated into the disc group, and the solid particles and the water move along the conical surface of the disc toward the drum wall. Separation process, the separation of the heavy liquid through the lid and the disc between the cover through the flow through the ring into the heavy liquid concentric pump chamber by the heavy liquid heart pump through the heavy liquid export machine, the light along the disc to the center of the drum movement, and then through the liquid level ring into the pump chamber light from the light liquid heart pump through the light liquid outlet from the machine outside
Water sealing of the separation treatment process :
In order to prevent the mixed liquid from flowing through the disc edge through the heavy liquid passage, or to generate static electricity at the time of starting up, it is necessary to add sufficient water to the drum before feeding the mixed liquid to the drum. Water seal is completed, to add to the drum mixture, due to the hydraulic pressure balance,between the heavy and light liquid interface formation. The position of the interface can be adjusted by changing the gravity ring diameter.
The specific gravity ring determines the position of the light and heavy liquid interface in the drum. When separating, the specific gravity ring is selected according to the density of the mixture.
This disc centrifuge technical parameters.
Drum inner diameter
|Drum speed (r/min)||7300||7056||6600||6200||4500|
|Settlement area (cm²)||17.2×10^7||28.5×10^7||35×10^7||67×10^7||90×10^7|
Input capacity for water
|Motor power (kw)||4.0||7.5||11||18.5||
Packing and delivery :
We provide you reliable and fast package and variety kinds of transportation way to insure you get the goods in time and safely.
More informaiton about our corporation---Toper
1. Manufacture experience,
Since 1997, we have done a lot of innovation and improvement in the field of filter and separation equipment. We are specialized in design of the filter press according to clients’ requirments, the delivery time of a filter press can be 5 days(if no stock).
2. Technology capacity,
We join and make the standard of filter press industry in China, All of our products have ISO 9001:2008, CE certificate, also they will be tested before delivery.
3. Our superiority,
We are one of the Top 3 in the field of filter press of China, more than 250,000 m2 land area and continue developing. Filter areas of filter press widely ranges from 1 m2 to 500 m2, you can always choose a right type.
4. Best service :
Supply professional operation training, Timely trouble shooting in 24 hours, we will try our best to solve your problems on the basis of no influence of your equipment working.
We have professional person on line to advise you the most suitable type of machie according to your requirement;Provide you comprehensive.easy-understanding and detail information and technical data about the machie you interested;solve your confusions or questions about the machine ;Arrange the schedule if you pay a visit to our factory;Our technical engineer can also to your country guid for the installation,operation test ,solve problems and so on.
