| Place of Origin: | China |
| Brand Name: | TOPER |
| Certification: | CE |
| Model Number: | XZ70/800-30 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export standard wooden package. |
| Delivery Time: | 30-40 working days after receive your payment |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union |
| Supply Ability: | 20 sets per month for this cast iron filter press |
| Filter Area: | 70m2 | Filter Plate Size: | 800*800mm |
|---|---|---|---|
| Filter Chamber Volume: | 1036L | Filter Plate And Number Number: | 54pcs |
| Filtrating Pressure: | 0.6Mpa | Motor Power: | 2.2kw |
| Main Feature: | To Bear High Temperature To Be 300C. | Construction: | Cast Iron. |
| Weight: | About 12000kg | Dimension: | 4960*1300*1300mm |
| Material: | Cast Iron | Application: | Petrochemical,metallurgy,oil,ceramics Industry |
| Function: | Solid-liquid Separation | Voltage: | 380V/220V /400-450V/Customized |
| Conditon: | New | ||
| Highlight: | filter press for sewage treatment plant,filter press for sludge dewatering |
||

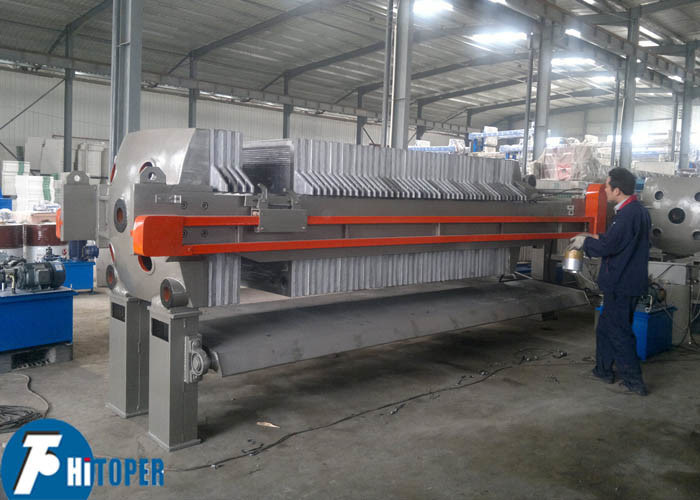

Waste Oil Recycling Chamber Filter Press , Cast Iron Industrial Filter Press Machine
Our Zhengzhou Toper company produces various models of recessed filter press and plate-frame mechanical filter press, hydraulic filter press, membrane filter press and full-automatic filter press and filter press spare parts. With high quality and best sale-service, having received a good reputation.

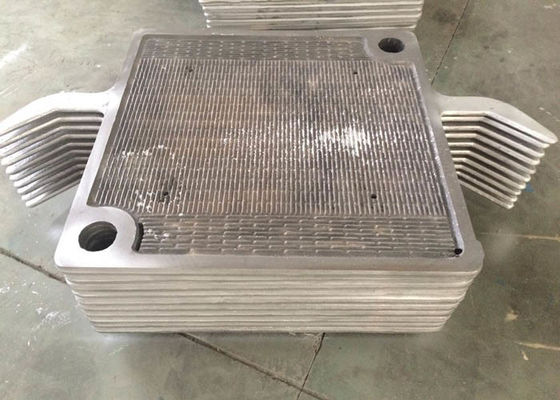

Cast iron filter press is made by high quality cast iron or ductile iron precision casting, with characteristics of high strength to withstand large filtration pressure, high temperature, filtration speed, low cake moisture, unloading, and long service life.
Applied to chemical industry, like gypsum, thiamine, Glauber's salt, ferric sulfate, copper sulfate, nickel sulfate, potassium sulfide, acetic acid, borax, rubber additives, oils, various resins, etc..
Features of this cast iron filter press,
1. Widely be used for dewatering high temperature materials.
2. Plate and frame of filter press, the heart of filter press
3. Material of plate and frame: cast iron
4. Max temperature: up to 300 degree celsius
5. Resistance to high temperature and high pressure.
6. Long use life.
Technical data of this cast iron filter press,
|
Type |
Filter area (m2) |
Filter plate size (mm) | Cake thickness (mm) | Chamber volume (L) | Plate number (pcs) | Frame number (pcs) | Filtrating pressure (Mpa) | Weight (kg) |
Dimensions(mm) L×W×H |
| BQ1/320-25 | 1 | 320 x 320 | 25 | 13 | 4 | 5 | 1.0 | 380 | 1150×760×650 |
| BQ2/320-25 | 2 | 25 | 9 | 10 | 500 | 1390×760×650 | |||
| BQ3/320-25 | 3 | 38 | 14 | 15 | 620 | 1750×760×650 | |||
| BQ4/450-25 | 4 | 450 x 450 | 25 | 51 | 9 | 10 | 0.8 | 1060 | 1780×760×650 |
| BQ6/450-25 | 6 | 76 | 14 | 15 | 1160 | 2055×870×880 | |||
| BQ8/450-25 | 8 | 102 | 19 | 20 | 1360 | 235×870×880 | |||
| BQ12/450-25 | 12 | 152 | 29 | 30 | 1530 | 2785×870×880 | |||
| BQ16/450-25 | 16 | 203 | 39 | 40 | 1760 | 3305×870×880 | |||
| XQ4/450-25 | 4 | 450 x 450 | 25 | 51 | 9 | 1.0 | 960 | 1900×870×880 | |
| XQ6/450-25 | 6 | 76 | 14 | 1140 | 2030×870×880 | ||||
| XQ8/450-25 | 8 | 102 | 19 | 1460 | 2280×870×880 | ||||
| XQ12/450-25 | 12 | 152 | 29 | 1960 | 2780×870×880 | ||||
| XQ16/450-25 | 16 | 203 | 39 | 2460 | 3280×870×880 | ||||
| BQ20/630-25 | 20 | 630 x630 | 25 | 298 | 24 | 25 | 0.6 | 3300 | 2750×1150×1100 |
| BQ30/630-25 | 30 | 452 | 37 | 38 | 4500 | 3220×1150×1100 | |||
| BQ40/630-25 | 40 | 295 | 49 | 50 | 5600 | 3870×1150×1100 | |||
| BY20/630-25 | 20 | 298 | 24 | 25 | 3700 | 2960×1150×1100 | |||
| BY30/630-25 | 30 | 452 | 37 | 38 | 5000 | 3610×1150×1100 | |||
| BY40/630-25 | 40 | 595 | 49 | 50 | 6100 | 4210×1150×1100 | |||
| XQ20/630-25 | 20 | 25 | 248 | 24 | 0.8 | 3400 | 2600×1100×1100 | ||
| XQ30/630-25 | 30 | 377 | 37 | 4700 | 3250×1100×1100 | ||||
| XQ40/630-25 | 40 | 496 | 49 | 5900 | 3900×1100×1100 | ||||
| XY20/630-25 | 20 | 248 | 24 | 3800 | 2950×1100×1100 | ||||
| XY30/630-25 | 30 | 377 | 37 | 5200 | 3580×1100×1100 | ||||
| XY40/630-25 | 40 | 496 | 49 | 6400 | 4180×1100×1100 |
Working principle:
Using filter cloth on both sides of the pressure difference, force the product through the filter cloth in the vast majority of the water, flowing outside the body, and the material is blocked in the filter cake is formed interior to filtration is achieved. Since the filter cloth on both sides of the process there is a relatively large pressure difference and improve the filtration rate reduces the moisture content of the filter cake, and using a special filter cloth, such pure clear filtrate, filtering effect is much better than vacuum filtration confidential.
Our Services
1). We have professional person on line to advise you the most suitable type of machie according to your requirement.
2). Provide you comprehensive.easy-understanding and detail information and technical data about the machie you interested;solve your confusions or questions about the machine
3). Arrange the schedule if you pay a visit to our factory
4). Send our technical engineer to your area guid the installation,debugging ,training workers and solve the problems if rquired.
Customer satisfaction is our utmost priority thus, customer service team is always on the brink to help our customers with their queries at any time.
We believe in working as a unit with an attitude of complete trust and understanding and are determined to provide safe, reliable and competitively priced products to our customers.
