|Place of Origin:||China|
|Minimum Order Quantity:||1 set|
|Packaging Details:||Export standard wooden package.|
|Delivery Time:||30-40 working days after receive your payment|
|Payment Terms:||L/C, T/T, D/A, D/P, Western Union|
|Supply Ability:||20 sets per month for this cast iron filter press|
|Filter Area:||60m2||Filter Plate Size:||800*800mm|
|Filter Chamber Volume:||902L||Filter Plate And Number Number:||46pcs|
|Filtrating Pressure:||0.8Mpa||Motor Power:||2.2kw|
|Main Feature:||To Bear High Temperature To Be 300C.||Construction:||Cast Iron.|
|Material:||Cast Iron||Voltage:||380V/220V /400-450V/Customized|
filter press for sewage treatment plant,
filter press unit

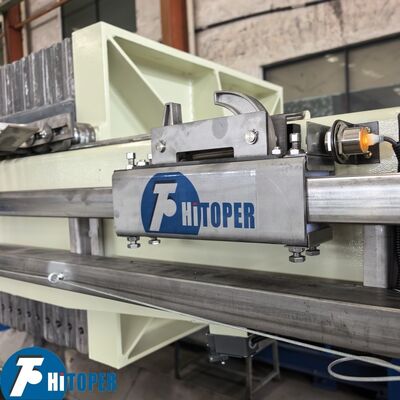

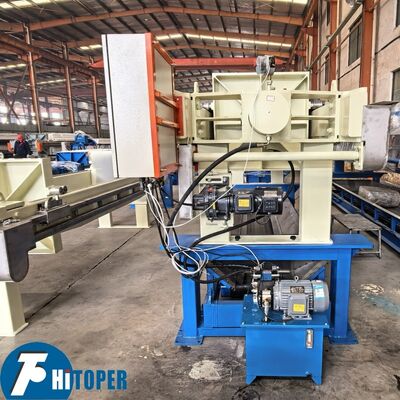

Automatic Hydraulic Cast Iron Filter Press Equipment For Sewage Dewatering Treatment
Cast iron filter with high-quality cast iron or ductile iron precision casting, filter plates having a high strength to withstand filtration pressure, high temperature, filtering speed, low cake moisture, discharge, long life and other characteristics. Suitable viscosity, high temperature, low moisture requirements of the ceramic industry, petrochemical, oil, machine oil and other products decolorization filter.
Our Zhengzhou Toper company produces various models of recessed filter press and plate-frame mechanical filter press, hydraulic filter press, membrane filter press and full-automatic filter press and filter press spare parts. With high quality and best sale-service, having received a good reputation.
Cast iron filter press is made by high quality cast iron or ductile iron precision casting, with characteristics of high strength to withstand large filtration pressure, high temperature, filtration speed, low cake moisture, unloading, and long service life.
Applied to chemical industry, like gypsum, thiamine, Glauber's salt, ferric sulfate, copper sulfate, nickel sulfate, potassium sulfide, acetic acid, borax, rubber additives, oils, various resins, etc..
Features of this cast iron filter press,
1. Widely be used for dewatering high temperature materials.
2. Plate and frame of filter press, the heart of filter press
3. Material of plate and frame: cast iron
4. Max temperature: up to 300 degree celsius
5. Resistance to high temperature and high pressure.
6. Long use life.
Technical data of this cast iron filter press,
Filter area (m2)
|Filter plate size (mm)||Cake thickness (mm)||Chamber volume (L)||Plate number (pcs)||Frame number (pcs)||Filtrating pressure (Mpa)||Weight (kg)||
|BQ1/320-25||1||320 x 320||25||13||4||5||1.0||380||1150×760×650|
|BQ4/450-25||4||450 x 450||25||51||9||10||0.8||1060||1780×760×650|
|XQ4/450-25||4||450 x 450||25||51||9||1.0||960||1900×870×880|
1). We have professional person on line to advise you the most suitable type of machie according to your requirement.
2). Provide you comprehensive.easy-understanding and detail information and technical data about the machie you interested;solve your confusions or questions about the machine
3). Arrange the schedule if you pay a visit to our factory
4). Send our technical engineer to your area guid the installation,debugging ,training workers and solve the problems if rquired.
Customer satisfaction is our utmost priority thus, customer service team is always on the brink to help our customers with their queries at any time.
We believe in working as a unit with an attitude of complete trust and understanding and are determined to provide safe, reliable and competitively priced products to our customers.
FILTER PRESS SERIES:
Filter presses can be divided into plate and frame type and are used for solidliquid separation of various suspending liquid in intermittent pressure filtration. Filter plates are pressed by pressing devices and suspending liquid is pumped into the filter chamber. Solid particles and separated through filter cloth. The products are simple in structure but good in separating effects, convenient in use, and widely applicable to mining, metallurgy, petroleum, chemical, medicine, textile, printing and dyeing, paper making, foodstuff, alcohol, inorganic salt, coal washing, dyestuff and sewage treatment industries.
How to order filter press:
1. Select the model,plate and fram material,pressing mode and filtering form by considering the filter press introduction and parameters.
2. According to your products,select open flow and close flow ,washable or non-washable,and specify the conditions in the contract.
3. The unit is provided without pump.To order the unit complete pumps,state it in the contract.
4. Our company can supply non-standard model to meet your special demands.
All of our products:
1. Program-controlled automatic filter press
2. Membrane filter press
3. Hydraulic compress filter press
4. Mechanical compress filter press
5. Jack filter press
6. Cast iron plate and frame/chamber filter press
7. Stainless steel plate and frame filter press
8. Round plate filter press
9. Cotton cake filter press
10. Cardboard filter press
11. DY belt filter press
12. DYX high pressure belt filter press
13. DNY rotary drum thickning/dehydrating belt filter press
14. Triple-belt thickning and dehydrating filter press
15. SS type three-foot upper discharge centrifuge
16. SD type three-foot and filter bag hoist discharge centrifuge
17. PD type filter bag hoist discharge centrifuge
18. Centrifuge of up discharge, three foot, clean series SSB, SB
19. SX type manual top discharge centrifuge
20. PS type manual top discharge centrifuge
21. SGZ type automatic scraper bottom discharge centrifuge
22. PGZ type scarper bottom discharge centrifuge
23. LW series decanter centrifuge
24. Tubular centrifuge
25. Multi-layer stainless steel frame filter
26. Bag filter
27. Diatomite filter
28. Filter plate
29. Filter cloth
30. Vacuum disc filter
