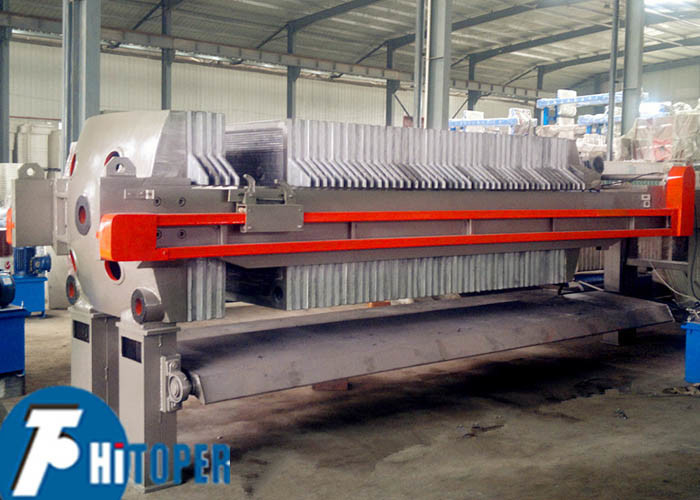

Automatic Hydraulic Cast Iron Filter Press for Petrochemical Products

Automatic Hydraulic Cast Iron Filter Press for Petrochemical Products

    • Automatic Hydraulic Cast Iron Filter Press for Petrochemical Products
    • Automatic Hydraulic Cast Iron Filter Press for Petrochemical Products
  • Automatic Hydraulic Cast Iron Filter Press for Petrochemical Products

    Product Details:

    Place of Origin: China
    Brand Name: TOPER
    Certification: CE
    Model Number: XY60/800-25

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Export standard wooden package.
    Delivery Time: 30-40 working days after receive your payment
    Payment Terms: L/C, T/T, D/A, D/P, Western Union
    Supply Ability: 20 sets per month for this cast iron filter press
    Contact Now
    Detailed Product Description
    Filter Area: 60m2 Filter Plate Size: 800*800mm
    Filter Chamber Volume: 902L Filter Plate And Number Number: 46pcs
    Filtrating Pressure: 0.8Mpa Motor Power: 2.2kw
    Main Feature: To Bear High Temperature To Be 300C. Construction: Cast Iron.
    Weight: About 9400kg Dimension: 3950*1380*1300mm
    Material: Cast Iron Voltage: 380V/220V /400-450V/Customized
    Conditon: New Application: Petrochemical,metallurgy,oil,ceramics Industry
    High Light:

    filter press for sewage treatment plant


    filter press unit

    Automatic Hydraulic Cast Iron Filter Press Equipment For Sewage Dewatering Treatment


    Cast iron filter with high-quality cast iron or ductile iron precision casting, filter plates having a high strength to withstand filtration pressure, high temperature, filtering speed, low cake moisture, discharge, long life and other characteristics. Suitable viscosity, high temperature, low moisture requirements of the ceramic industry, petrochemical, oil, machine oil and other products decolorization filter.


    Our Zhengzhou Toper company produces various models of recessed filter press and plate-frame mechanical filter press, hydraulic filter press, membrane filter press and full-automatic filter press and filter press spare parts. With high quality and best sale-service, having received a good reputation.


    Cast iron filter press is made by high quality cast iron or ductile iron precision casting, with characteristics of high strength to withstand large filtration pressure, high temperature, filtration speed, low cake moisture, unloading, and long service life.


    Applied to chemical industry, like gypsum, thiamine, Glauber's salt, ferric sulfate, copper sulfate, nickel sulfate, potassium sulfide, acetic acid, borax, rubber additives, oils, various resins, etc..



    Features of this cast iron filter press,


    1. Widely be used for dewatering high temperature materials.

    2. Plate and frame of filter press, the heart of filter press

    3. Material of plate and frame: cast iron

    4. Max temperature: up to 300 degree celsius

    5. Resistance to high temperature and high pressure.

    6. Long use life.



    Technical data of this cast iron filter press,



    Filter area (m2)

    Filter plate size (mm) Cake thickness (mm) Chamber volume (L) Plate number (pcs) Frame number (pcs) Filtrating pressure (Mpa) Weight (kg)



    BQ1/320-25 1 320 x 320 25 13 4 5 1.0 380 1150×760×650
    BQ2/320-25 2 25 9 10 500 1390×760×650
    BQ3/320-25 3 38 14 15 620 1750×760×650
    BQ4/450-25 4 450 x 450 25 51 9 10 0.8 1060 1780×760×650
    BQ6/450-25 6 76 14 15 1160 2055×870×880
    BQ8/450-25 8 102 19 20 1360 235×870×880
    BQ12/450-25 12 152 29 30 1530 2785×870×880
    BQ16/450-25 16 203 39 40 1760 3305×870×880
    XQ4/450-25 4 450 x 450 25 51 9   1.0 960 1900×870×880
    XQ6/450-25 6 76 14 1140 2030×870×880
    XQ8/450-25 8 102 19 1460 2280×870×880
    XQ12/450-25 12 152 29 1960 2780×870×880
    XQ16/450-25 16 203 39 2460 3280×870×880
    BQ20/630-25 20 630 x630 25 298 24 25 0.6 3300 2750×1150×1100
    BQ30/630-25 30 452 37 38 4500 3220×1150×1100
    BQ40/630-25 40 295 49 50 5600 3870×1150×1100
    BY20/630-25 20 298 24 25 3700 2960×1150×1100
    BY30/630-25 30 452 37 38 5000 3610×1150×1100
    BY40/630-25 40 595 49 50 6100 4210×1150×1100
    XQ20/630-25 20 25 248 24   0.8 3400 2600×1100×1100
    XQ30/630-25 30 377 37 4700 3250×1100×1100
    XQ40/630-25 40 496 49 5900 3900×1100×1100
    XY20/630-25 20 248 24   3800 2950×1100×1100
    XY30/630-25 30 377 37 5200 3580×1100×1100
    XY40/630-25 40 496 49 6400 4180×1100×1100




    Our Services

    1). We have professional person on line to advise you the most suitable type of machie according to your requirement.
    2). Provide you comprehensive.easy-understanding and detail information and technical data about the machie you interested;solve your confusions or questions about the machine
    3). Arrange the schedule if you pay a visit to our factory
    4). Send our technical engineer to your area guid the installation,debugging ,training workers and solve the problems if rquired.

    Customer satisfaction is our utmost priority thus, customer service team is always on the brink to help our customers with their queries at any time.
    We believe in working as a unit with an attitude of complete trust and understanding and are determined to provide safe, reliable and competitively priced products to our customers.


    Filter presses can be divided into plate and frame type and are used for solidliquid separation of various suspending liquid in intermittent pressure filtration. Filter plates are pressed by pressing devices and suspending liquid is pumped into the filter chamber. Solid particles and separated through filter cloth. The products are simple in structure but good in separating effects, convenient in use, and widely applicable to mining, metallurgy, petroleum, chemical, medicine, textile, printing and dyeing, paper making, foodstuff, alcohol, inorganic salt, coal washing, dyestuff and sewage treatment industries.


    How to order filter press:

    1. Select the model,plate and fram material,pressing mode and filtering form by considering the filter press introduction and parameters.
    2. According to your products,select open flow and close flow ,washable or non-washable,and specify the conditions in the contract.
    3. The unit is provided without pump.To order the unit complete pumps,state it in the contract.
    4. Our company can supply non-standard model to meet your special demands.
