Home ProductsCotton Cake Filter Press

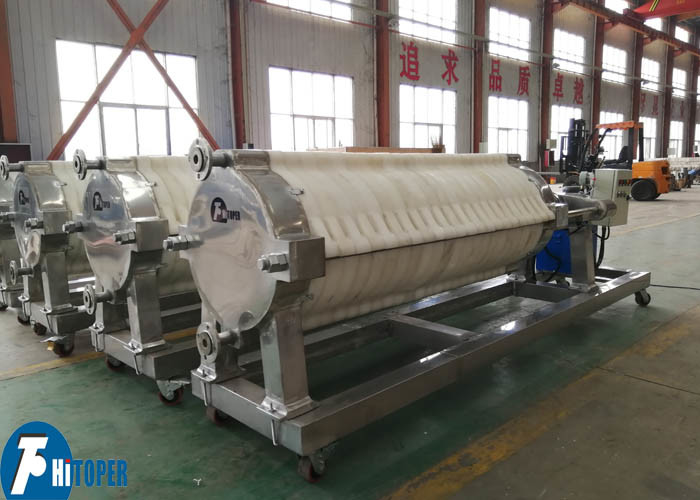

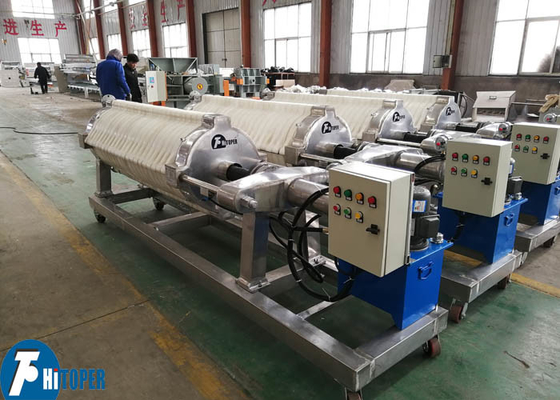

Large Filter Area Round Cotton Cake Filter Press For Convenient Operation And Maintenance

Large Filter Area Round Cotton Cake Filter Press For Convenient Operation And Maintenance

    • Large Filter Area Round Cotton Cake Filter Press For Convenient Operation And Maintenance
    • Large Filter Area Round Cotton Cake Filter Press For Convenient Operation And Maintenance
  • Large Filter Area Round Cotton Cake Filter Press For Convenient Operation And Maintenance

    Product Details:

    Place of Origin: China
    Brand Name: TOPER
    Certification: CE
    Model Number: 5m2

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: Negotiable
    Packaging Details: Export standard wooden package.
    Delivery Time: about 45 working days after receive your payment
    Payment Terms: L/C, T/T, D/A, D/P, Western Union
    Supply Ability: 60 sets per month for this cotton cake filtre press
    Contact Now
    Detailed Product Description
    Filter Plate Size: Diamter Of 400mm Filter Chamber Volume: 138L
    Filter Plate Number: 22pcs Filtrating Pressure: Less Than 2Mpa
    Motor Power: 1.1kw Max. Pressure Inner Frame: 3kg/cm2
    Flow Rate: 55L/min Oil Steady Pressure: 12Mpa
    Dimension: 2630*1050*670mm Motor Speed: 1460r/min
    Steady Pressure: 12MPa Function: Separation,concentration,extract,refine,clarify Etc.
    Application: Fermentation,enzymes,RNA Gelatin,food And Beverage Voltage: 380V/220V /400-450V/Customized
    Conditon: New
    Highlight:

    industrial filter press

    ,

    filter press machine

    Efficient White Color PP Material Round Cotton Cake Filter Press For Removing Oil Impurities





    Cotton filter press can be repeated using recycled fiber material as filter media to remove traces of oil in the liquid material, mechanical impurities, suspended complexes and other impurities, so that filtered liquid clear and transparent.

    1. Round plate, 500mm, or 400mm

    2. Feeding type, corner one.

    3. Liquid flow type, close one.

    4. Material type, aluminum alloy or reinforced polypropylene.

    5. WIth wheels, canbe movable.



    Cotton cake filter press our company manufactured belongs to plate and frame type filter press.It is suitable for filtering and purifying liquid .It is widely used in chemical industry,metallurgy,pharmaceutical ,food and other industries.This filter press has such features of large filter area ,convenient operation and maintenance.Filter plate and frame adopts round structure.It is better than square structure.The material is of aluminum alloy and reinforced polypropylene.And the quantity of frame can be increased or reduced ,the machine can be applied to different liquid filtration.

    It is used in fermentation ,enzymes,RNA gelatin,food and beverage ,and other high precision requirement industries.





    Technical data,



    Filter area

    (m2)

    Plate size

    (mm)

    Frame thickness

    (mm)

    Filter pressure

    (Mpa)

    Plate quantity

    (pcs)

    Max. pressure

    Inner frame

    (kg/cm2)

    Volume inside

    frame

    (L)

    Dimension

    L×W×H

    Flow(

    L/min)

    Motor power

    (kw)

    Motor speed

    (r/min)

    Steady

    pressure

    (Mpa)

    Max.

    displacement

    (mm)

    8 Ф500 50 ≤2 22 3 216

    2630×1150

    ×770

    87 1.1 1460 12

    350



    5 Ф400 50 ≤2 22 3 138

    2630×1050

    ×670

    55 1.1 1460 12 350





    Large Filter Area Round Cotton Cake Filter Press For Convenient Operation And Maintenance





    Why choose us:



    1. Manufacture experience,

    Since 1997, we have done a lot of innovation and improvement in the field of filter and separation equipment. We are specialized in design of the filter press according to clients’ requirments, the delivery time of a filter press can be 7 days(if no stock).

    2. Technology capacity,

    We join and make the standard of filter press industry in China, All of our products have CE certificate, also they will be tested before delivery.

    3. Our superiority,

    We are in the first class in the field of filter press of China, more than 250,000 m2 land area and continue developing. Filter areas of filter press widely ranges from 1 m2 to 500 m2, you can always choose a right type.

    4. Best after-sales,

    Supply professional operation training, Timely trouble shooting in 24 hours, we will try our best to solve your problems on the basis of no influence of your equipment working.





    Zhengzhou Toper isspecialized in design,manufacture and sales of various filtration equipment,as well as comprehensive filtration solutions and projects. Zhengzhou Toper is the leading supplier of industrial eqipment in China,and also the professional export and service provider of fitler and separation equipment.Our manufacturing base of filter equipment mainly produce full automatic or semi-automatic membrane filter press, plate centrifuge,disc centrifuge,decanter centrifuge and tubular centrifuge etc.
    Since 2006,Our equipment has been exported to many countries all over the world such as India, Pakistan, Sri Lanka, Bangladesh, Indonesia, Philippines, Malaysia, Vietnam, Singapore, Turkey, Israel, Burma, Jordan, Yemen, Iran, Iraq, Afghanistan, Syria, Kuwait, Kazakhstan, Qatar, Korea, Azerbaijan, The UAE, Bhutan, Thailand, Lebanon, Bahrain, Egypt, Libya, Ethiopia, Kenya, Somalia, Tanzania, Liberia, Ivory Coast, Ghana, Nigeria, Cameroon, Chad, Guinea, Zambia, Zimbabwe, Malawi, Congo, Gabon, Angola, Mozambique, Botswana, Namibia, South Africa, Argentina, Bahamas, Bolivia, Brazil, Canada, Columbia, Chile, Cuba, Venezuela, Ecuador, Guatemala, Guyana, Honduras, Haiti, Mexico, Peru, Uruguay, Paraguay, Surinam, Australia, Russia etc.. And I hope to establish a long-term relationship with you.
    Customer satisfaction is our utmost priority thus, customer service team is always on the brink to help our customers with their queries at any time.
    We believe in working as a unit with an attitude of complete trust and understanding and are determined to provide safe, reliable and competitively priced products to our customers.
