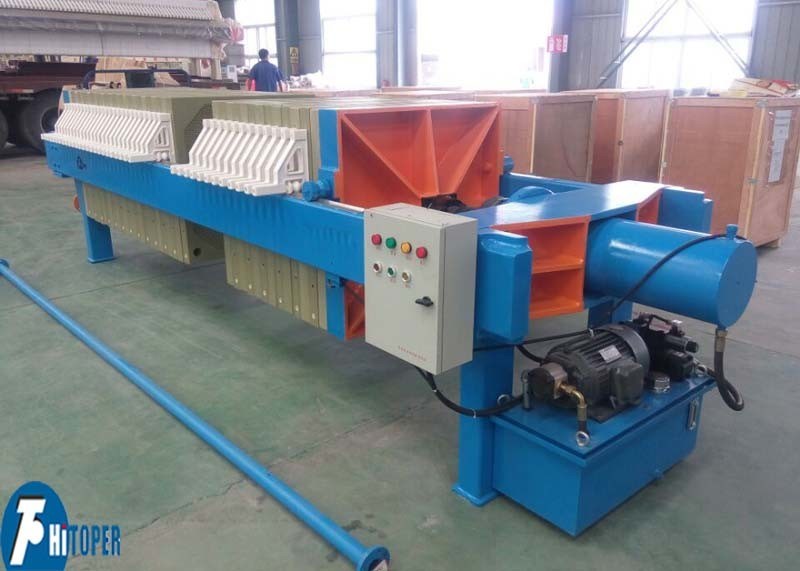

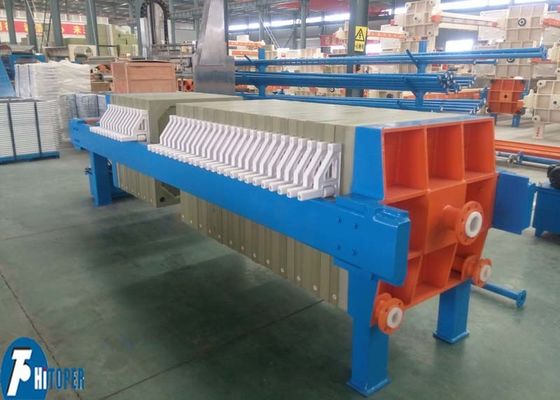

1.2Mpa High Pressure Mineral Sludge Dewatering Membrane Filter Press CE Certificated

1.2Mpa High Pressure Mineral Sludge Dewatering Membrane Filter Press CE Certificated



We manufacture membrane filter press matching international standards and quality. The membrane squeeze plate is offered to suit up to 10 bar squeezing pressure. Due to additional liquid extraction during the squeeze cycle, solid percentages increases. Filtration cycle time are reduced compared to the conventional recess chamber plate(Plate and frame) filter press, resulting in benefits of membrane plates v/s chamber plates. Conventional type filter presses are limited to using feed pump discharge pressure to produce dry solids, resulting in longer cycle times.



The membrane squeeze plate reduced the long packing cycle by introducing a squeeze medium in to the center of the membrane squeeze plate. This allows the membranes to flex against the cake, compressing and packing it. Filtration cycle are shorter, dry solids are increased, and waste volume is reduced. This membrane are designed to dewater the most difficult sludge and protect the plates against potential cake less chambers. The high pressure membranes were developed for difficult filtration processes. Extreme squeeze pressure are possible due to the combination of the special feed inlet design and selected special materials





Widely application:



Effluent treatment plants:

Textile

Paper

Leather

Jute

Sewages

Industrial and municipal waste water



Ceramics:

Clay

Porcelain

Fine earth

Marble and Granite



Metallurgy:

Electroplating and Electro Polishing

Steel Mill Waste

Nickel

Copper

Zinc Lead

Silver



Pharma Industries:

Antibiotic

Syrup

Intermediates and Bulk Drugs



Chemical Industries:

Basic Chemicals

Organic and Inorganic

Resins

Starch

Enzymes

Pesticides

Activated Clay

Phosphoric compounds

Marine Chemicals



Dye Stuffs:

Pigments

Dyes

Intermediates



Food Industries:

Vegetable Oils

Cane Juice

Food Colors Soups

Distilleries

Dairies and Hotels





Working principle:



1. Slurry is fed into the filter press. Feeding pressure forces the slurry through the filter cloth and the solid is held up by the filter cloth and forms filter cake.

2. As filtration carry on, the feeding pressure is continuously ascending and the chamber volume is slowly descending. Filter chambers are completely filled with filter cakes, feeding pressure reaches its max and maintain for a long time when the feeding speed slows down.

3.The main purpose of core blowing from the pressing plate is to increase the filter cake's solid content and prevent the pipe from being blocked.

4. Feeding valve is shut off. All membrane plates are injected compressed air or high-pressured water, which squeeze the membrane plate to dewater.

5. Filter cakes are discharged.



Basic technical data of our membrane filter press:



Type	Filter area( m2)	Filter plate size (mm)	Filter cake thicknes s(mm)	Filter chamber volume (L)	Filter plate number (pcs)	Filtrating pressure (Mpa)	Motor power (kw)	Weight (kg)	Dimension (L×W×H)(mm)
XG30/870-30U	30	870×870	30	427	23	0.6	4.0	2680	3490×1250×1300
XG40/870-30U	40			534	29			3050	3880×1250×1300
XG50/870-30U	50			676	37			3465	4400×1250×1300
XG60/870-30U	60			818	45			4003	4920×1250×1300
XG70/870-30U	70			960	53			4584	5240×1250×1300
XG80/870-30U	80			1103	61			5082	5760×1250×1300
XG50/1000-30U	50	1000×1000		665	27	0.6	4.0	4352	4270×1500×1400
XG60/1000-30U	60			808	33			4480	4770×1500×1400
XG70/1000-30U	70			950	39			5263	5130×1500×1400
XG80/1000-30U	80			1093	45			5719	5560×1500×1400
XG100/1000-30U	100			1378	57			6555	6410×1500×1400
XG120/1000-30U	120			1663	69			7466	7260×1500×1400



Type	Filter area (m2)	Filter plate size(mm)	Filter cake thickness (mm)	Filter chamber volume (L)	Filter plate number (pcs)	Filtrating pressure (Mpa)	Motor power (kw)	Weight (kg)	Dimension (L×W×H) (mm)
XGZY80/1250-35U	80	1250×1250	35	1364	29	0.6	4.0	10900	4830×1800×1600
XGZY100/1250-35U	100			1680	37			11750	5440×1800×1600
XGZY120/1250-35U	120			2092	45			12600	6060×1800×1600
XGZY150/1250-35U	150			2547	55			13620	6820×1800×1600
XGZY160/1250-35U	160			2729	59			14470	7130×1800×1600
XGZY200/1250-35U	200			3457	73			15320	8200×1800×1600
XGZY240/1250-35U	240			4093	89			16170	9420×1800×1600
XGZY250/1250-35U	250			4276	91			17020	9570×1800×1600
XGZY200/1500-35U	200	1500×1500		3922	49		7.5	26120	7140×2200×2000
XGZY250/1500-35U	250			4463	61			26930	7730×2200×2000
XGZY300/1500-35U	300			5274	73			28160	8720×2000×1820
XGZY350/1500-35U	350			6221	85			29600	10110×2000×1820
XGZY400/1500-35U	400			7032	99			31500	11260×2000×1820
XGZY450/1500-35U	450			7844	111			33400	12250×2000×1820
XGZY500/1500-35U	500			8791	123			33380	13240×2000×1820
XGZY600/2000-40U	600	2000×2000	40	12000	85			54164	13030×3520×2500
XGZY700/2000-40U	700			14000	99			58300	14390×3000×2500
XGZY800/2000-40U	800			16000	107			624460	15770×3000×2500
XGZY900/2000-40U	900			18000	127			66620	17150×3000×2500
XGZY1000/2000-40U	1000			20000	141			70780	18530×3000×2500





Since 2006,Our equipment has been exported to many countries all over the world such as India, Pakistan, Sri Lanka, Bangladesh, Indonesia, Philippines, Malaysia, Vietnam, Singapore, Turkey, Israel, Burma, Jordan, Yemen, Iran, Iraq, Afghanistan, Syria, Kuwait, Kazakhstan, Qatar, Korea, Azerbaijan, The UAE, Bhutan, Thailand, Lebanon, Bahrain, Egypt, Libya, Ethiopia, Kenya, Somalia, Tanzania, Liberia, Ivory Coast, Ghana, Nigeria, Cameroon, Chad, Guinea, Zambia, Zimbabwe, Malawi, Congo, Gabon, Angola, Mozambique, Botswana, Namibia, South Africa, Argentina, Bahamas, Bolivia, Brazil, Canada, Columbia, Chile, Cuba, Venezuela, Ecuador, Guatemala, Guyana, Honduras, Haiti, Mexico, Peru, Uruguay, Paraguay, Surinam, Australia, Russia etc.





Why choose us:



1. Manufacture experience,

Since 1997, we have done a lot of innovation and improvement in the field of filter and separation equipment. We are specialized in design of the filter press according to clients’ requirments, the delivery time of a filter press can be 7 days(if no stock).

2. Technology capacity,

We join and make the standard of filter press industry in China, All of our products have CE certificate, also they will be tested before delivery.

3. Our superiority,

We are in the first class in the field of filter press of China, more than 250,000 m2 land area and continue developing. Filter areas of filter press widely ranges from 1 m2 to 500 m2, you can always choose a right type.

4. Best after-sales,

Supply professional operation training, Timely trouble shooting in 24 hours, we will try our best to solve your problems on the basis of no influence of your equipment working.
