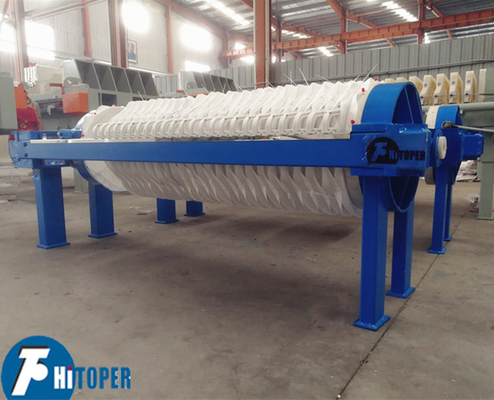

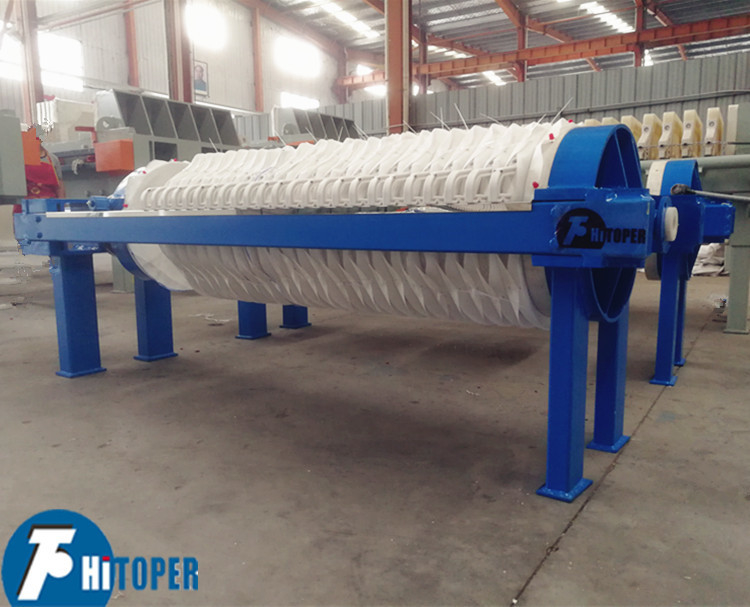

High Pressure Round Plate Filter Press Equipment for Kaolin / Ceramic Industry

High Pressure Round Plate Filter Press Equipment for Kaolin / Ceramic Industry

    • High Pressure Round Plate Filter Press Equipment for Kaolin / Ceramic Industry
    • High Pressure Round Plate Filter Press Equipment for Kaolin / Ceramic Industry
  • High Pressure Round Plate Filter Press Equipment for Kaolin / Ceramic Industry

    Product Details:

    Place of Origin: China
    Brand Name: TOPER
    Certification: CE
    Model Number: XM20/800-25

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: Negotiable
    Packaging Details: Export standard wooden package.
    Delivery Time: 15-20 working days after receive your payment
    Payment Terms: L/C, T/T, D/A, D/P, Western Union
    Supply Ability: 300 sets per month for this round plate filter press
    Contact Now
    Detailed Product Description
    Filter Area: 20m2 Filter Plate Size: 800*800mm
    Filter Chamber Volume: 255L Filter Plate Number: 20pcs
    Filtrating Pressure: 1.0-2.0Mpa Motor Power: 2.2kw
    Plate Materail: PP Plate Type: Round Plate
    Condition: New Solid Discharge Type: Manual
    Voltage: 220V380V400V/Customized
    Highlight:

    filter press system

    ,

    filter press equipment

    Kaolin / Ceramic Industry Round Plate Filter Press Machine Factory with CE Approval





    Zhengzhou Toper Industrial Equipment Co., Ltd manufactuer round plate filter press is a kind of solids-liquid separation of various slurry, filter plates are pressed by pressing device and slurry is pumped into the filter chambers, solid particle and liquid are separated through filter cloths. With its higher pressure of about 2.0Mpa, the cake moisture of this high pressure filter press can give you is about 18%.





    Detailed infos of this Kaolin / Ceramic Industry Round Plate Filter Press Machine CE Approval:



    This round plate filter press includes frame, filter plate, pressing system and control cabinet.

    1. Frame: High quality carbon steel Q345, automatic submerged arc welding process with weld smooth and beautiful. still processed with sand blasting to remove rust and oxide skin, then painted by epoxy primer to get higher intensity and corrosion resistance, together with last protection of acrylic polyester anti-corrosion paint spraying.

    2. Filter plate: Material of Reinforced Polypropylene with acid & alkali resistance, anti-corrosion, innocuity, tasteless, light weight and high strength, producing by using 5000 tons high-pressure compressor, every plates before delivery is tested under high pressure 27MPa.

    3. Pressing system: Hydraulic unit, carbon steel bending welding and sealing. Hydraulic cylinder, welded using material 27SiMn seamless steel pipe, pressing pressure is 18-20MPa.

    4. Control cabinet: The cover is carbon steel with spray with button operation, Chinese famous brand inverter and electronic components. Also as you need we can provide you with PLC control, Also you can choose Delta inverter and Schneider electronic components with your actual situation.





    Hot sale application of this round plate filter press:



    It is used for solid-liquid separation of stone wastewater, ceramic, kaolin, building materials and other industries, high filtration pressure, low moisture content.





    All models of this Kaolin / Ceramic Industry Round Plate Filter Press Machine CE Approval



    Model

    Filter area

    (m2)

    plate size

    (mm)

    Cake thickness

    (mm)

    Number plate

    (pcs)



    Filter chamber volume

    (L)



    Pressure

    (Mpa)

    Maximum displacement Rated pressure

    Dimensions

    L x W x H(mm)

    Weight

    (kg)

    L W H
    XAM20/φ800-25 20 Ф800 25 20 255 1.0-2.0 500 22 3300 1100 1060 3346
    XAM30/φ800-25 30 30 377 3780 3590
    XAM40/φ800-25 40 40 499 4300 4554
    XAM50/φ800-25 50 50 621 600 4820 5150
    XAM60/φ800-25 60 60 753 5340 9710
    XAM70/φ800-25 70 70 875 5860 5760
    XAM80/φ800-30 80 30 80 1200             6860







    Why choose us:



    1. Manufacture experience,

    Since 1997, we have done a lot of innovation and improvement in the field of filter and separation equipment. We are specialized in design of the filter press according to clients’ requirments, the delivery time of a filter press can be 7 days(if no stock).

    2. Technology capacity,

    We join and make the standard of filter press industry in China, All of our products have CE certificate, also they will be tested before delivery.

    3. Our superiority,

    We are in the first class in the field of filter press of China, more than 250,000 m2 land area and continue developing. Filter areas of filter press widely ranges from 1 m2 to 500 m2, you can always choose a right type.

    4. Best after-sales,

    Supply professional operation training, Timely trouble shooting in 24 hours, we will try our best to solve your problems on the basis of no influence of your equipment working.



    Zhengzhou Toper isspecialized in design,manufacture and sales of various filtration equipment,as well as comprehensive filtration solutions and projects. Zhengzhou Toper is the leading supplier of industrial eqipment in China,and also the professional export and service provider of fitler and separation equipment.Our manufacturing base of filter equipment mainly produce full automatic or semi-automatic membrane filter press, plate centrifuge,disc centrifuge,decanter centrifuge and tubular centrifuge etc.
    Since 2006,Our equipment has been exported to many countries all over the world such as India, Pakistan, Sri Lanka, Bangladesh, Indonesia, Philippines, Malaysia, Vietnam, Singapore, Turkey, Israel, Burma, Jordan, Yemen, Iran, Iraq, Afghanistan, Syria, Kuwait, Kazakhstan, Qatar, Korea, Azerbaijan, The UAE, Bhutan, Thailand, Lebanon, Bahrain, Egypt, Libya, Ethiopia, Kenya, Somalia, Tanzania, Liberia, Ivory Coast, Ghana, Nigeria, Cameroon, Chad, Guinea, Zambia, Zimbabwe, Malawi, Congo, Gabon, Angola, Mozambique, Botswana, Namibia, South Africa, Argentina, Bahamas, Bolivia, Brazil, Canada, Columbia, Chile, Cuba, Venezuela, Ecuador, Guatemala, Guyana, Honduras, Haiti, Mexico, Peru, Uruguay, Paraguay, Surinam, Australia, Russia etc.. And I hope to establish a long-term relationship with you.
    Customer satisfaction is our utmost priority thus, customer service team is always on the brink to help our customers with their queries at any time.
    We believe in working as a unit with an attitude of complete trust and understanding and are determined to provide safe, reliable and competitively priced products to our customers.
