|Place of Origin:||China|
|Minimum Order Quantity:||Negotiable|
|Packaging Details:||Export standard wooden package.|
|Delivery Time:||15-20 working days after receive your payment|
|Payment Terms:||L/C, T/T, D/A, D/P, Western Union|
|Supply Ability:||300 sets per month for this round plate filter press|
|Filter Area:||20m2||Filter Plate Size:||800*800mm|
|Filter Chamber Volume:||255L||Filter Plate Number:||30pcs|
|Filtrating Pressure:||1.0-2.0Mpa||Motor Power:||2.2kw|
|Rated Pressure:||22MPa||Maximum Displacement:||600mm|
|Plate Materail:||Polypropylene||Plate Shape:||Round Shape|
|Function:||Wastewater Treatment And Sludge Dehydrate||Solid Cake Discharge Type:||Manual Discharge|
plate filter press,
filter press equipment

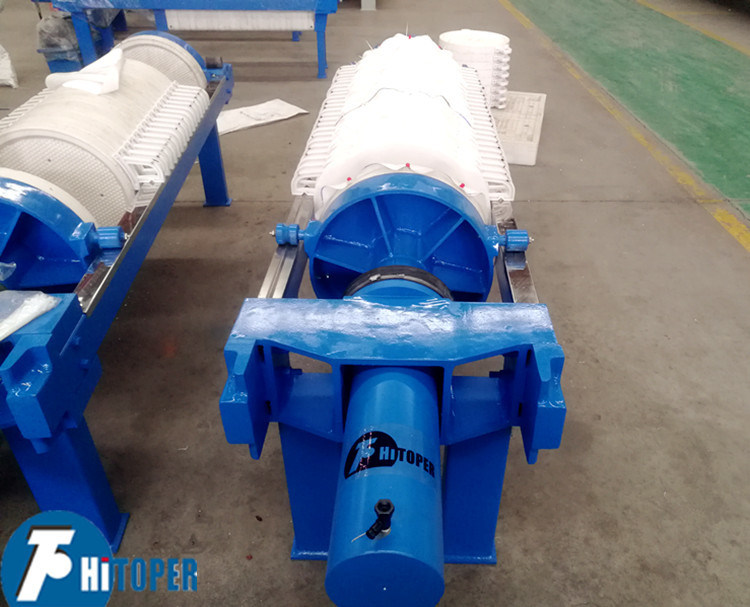

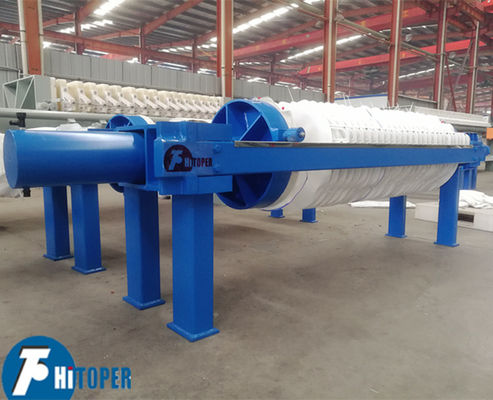

Ceramic Wastewater Treatment Filter Press System 20m2 With Sludge Pumps
Zhengzhou Toper Industrial Equipment Co., Ltd manufactuer round plate filter press is a kind of solids-liquid separation of various slurry, filter plates are pressed by pressing device and slurry is pumped into the filter chambers, solid particle and liquid are separated through filter cloths. With its higher pressure of about 2.0Mpa, the cake moisture of this high pressure filter press can give you is about 18%.
Detailed infos of this Ceramic Wastewater Treatment Round Plate Filter Press System:
This round plate filter press includes frame, filter plate, pressing system and control cabinet.
1. Frame: High quality carbon steel Q345, automatic submerged arc welding process with weld smooth and beautiful. still processed with sand blasting to remove rust and oxide skin, then painted by epoxy primer to get higher intensity and corrosion resistance, together with last protection of acrylic polyester anti-corrosion paint spraying.
2. Filter plate: Material of Reinforced Polypropylene with acid & alkali resistance, anti-corrosion, innocuity, tasteless, light weight and high strength, producing by using 5000 tons high-pressure compressor, every plates before delivery is tested under high pressure 27MPa.
3. Pressing system: Hydraulic unit, carbon steel bending welding and sealing. Hydraulic cylinder, welded using material 27SiMn seamless steel pipe, pressing pressure is 18-20MPa.
4. Control cabinet: The cover is carbon steel with spray with button operation, Chinese famous brand inverter and electronic components. Also as you need we can provide you with PLC control, Also you can choose Delta inverter and Schneider electronic components with your actual situation.
Hot sale application of this round plate filter press:
It is used for solid-liquid separation of stone wastewater, ceramic, kaolin, building materials and other industries, high filtration pressure, low moisture content.
All models of this round plate filter press:
Filter chamber volume
|Maximum displacement||Rated pressure||
L x W x H(mm)
Why choose us:
1. Manufacture experience,
Since 1997, we have done a lot of innovation and improvement in the field of filter and separation equipment. We are specialized in design of the filter press according to clients’ requirments, the delivery time of a filter press can be 7 days(if no stock).
2. Technology capacity,
We join and make the standard of filter press industry in China, All of our products have CE certificate, also they will be tested before delivery.
3. Our superiority,
We are in the first class in the field of filter press of China, more than 250,000 m2 land area and continue developing. Filter areas of filter press widely ranges from 1 m2 to 500 m2, you can always choose a right type.
4. Best after-sales,
Supply professional operation training, Timely trouble shooting in 24 hours, we will try our best to solve your problems on the basis of no influence of your equipment working.
Our manufacturing base of filter equipment mainly produce full automatic or semi-automatic membrane filter press, recessed filter press, belt filter press, centrifuge, etc. All these products are widely used in mining, metallurgy, petroleum, chemical, medicine, textile, printing and dyeing, paper making, food, alcohol, inorganic salt, coal washing, and waste water processing industry.
Zhengzhou Toper isspecialized in design,manufacture and sales of various filtration equipment,as well as comprehensive filtration solutions and projects. Zhengzhou Toper is the leading supplier of industrial eqipment in China,and also the professional export and service provider of fitler and separation equipment.Our manufacturing base of filter equipment mainly produce full automatic or semi-automatic membrane filter press, plate centrifuge,disc centrifuge,decanter centrifuge and tubular centrifuge etc.
Since 2006,Our equipment has been exported to many countries all over the world such as India, Pakistan, Sri Lanka, Bangladesh, Indonesia, Philippines, Malaysia, Vietnam, Singapore, Turkey, Israel, Burma, Jordan, Yemen, Iran, Iraq, Afghanistan, Syria, Kuwait, Kazakhstan, Qatar, Korea, Azerbaijan, The UAE, Bhutan, Thailand, Lebanon, Bahrain, Egypt, Libya, Ethiopia, Kenya, Somalia, Tanzania, Liberia, Ivory Coast, Ghana, Nigeria, Cameroon, Chad, Guinea, Zambia, Zimbabwe, Malawi, Congo, Gabon, Angola, Mozambique, Botswana, Namibia, South Africa, Argentina, Bahamas, Bolivia, Brazil, Canada, Columbia, Chile, Cuba, Venezuela, Ecuador, Guatemala, Guyana, Honduras, Haiti, Mexico, Peru, Uruguay, Paraguay, Surinam, Australia, Russia etc.. And I hope to establish a long-term relationship with you.
Customer satisfaction is our utmost priority thus, customer service team is always on the brink to help our customers with their queries at any time.
We believe in working as a unit with an attitude of complete trust and understanding and are determined to provide safe, reliable and competitively priced products to our customers.
