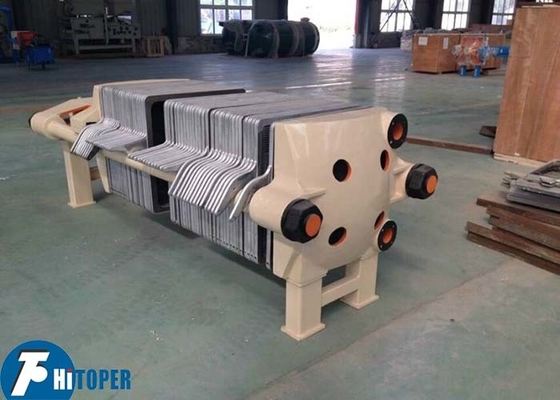

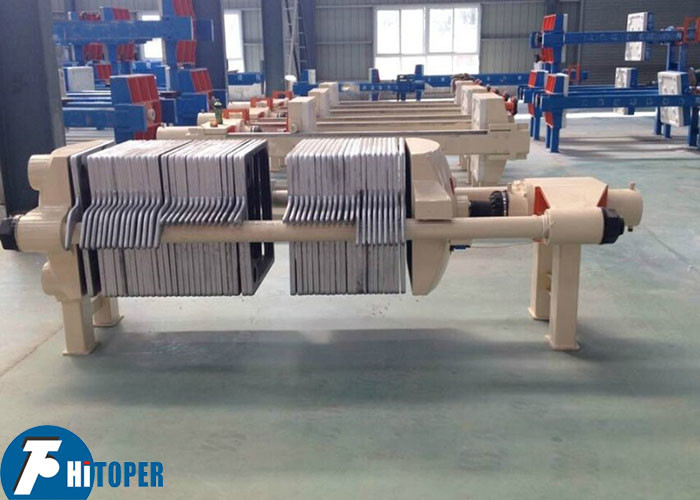

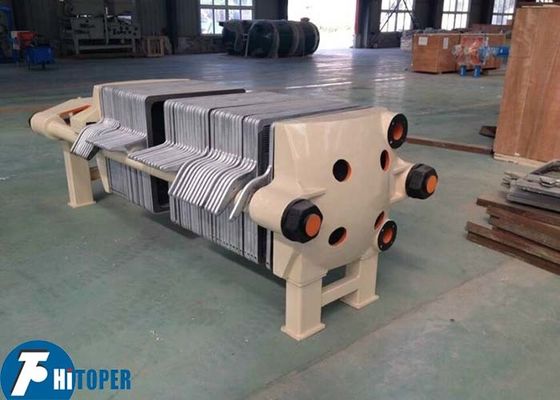

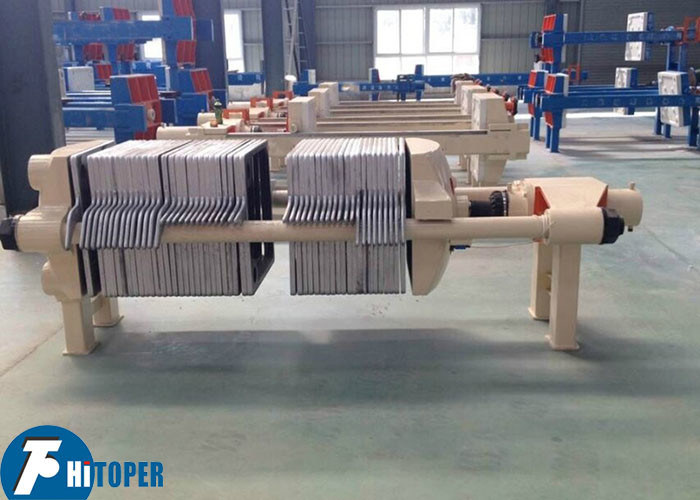

High Temperature Resistance Cast Iron Filter Press for Oil Treatment and Purification

High Temperature Resistance Cast Iron Filter Press for Oil Treatment and Purification

    • High Temperature Resistance Cast Iron Filter Press for Oil Treatment and Purification
    • High Temperature Resistance Cast Iron Filter Press for Oil Treatment and Purification
  • High Temperature Resistance Cast Iron Filter Press for Oil Treatment and Purification

    Product Details:

    Place of Origin: China
    Brand Name: TOPER
    Certification: CE
    Model Number: BY20/630-30U

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: Negotiable
    Packaging Details: Export standard wooden package.
    Delivery Time: 30-40 working days after receive your payment
    Payment Terms: L/C, T/T, D/A, D/P, Western Union
    Supply Ability: 20 sets per month for this cast iron filter press
    Contact Now
    Detailed Product Description
    Filter Area: 20m2 Filter Plate Size: 630*630mm
    Filter Chamber Volume: 298L Filter Plate And Number Number: 49pcs
    Filtrating Pressure: 0.6Mpa Motor Power: 2.2kw
    Main Feature: To Bear High Temperature To Be 300C Construction: Cast Iron
    Function: Solid-liquid Separation Application: Petrochemical,metallurgy,oil,ceramics Industry
    Voltage: 380V/220V /400-450V/Customized Conditon: New
    Highlight:

    filter press for sludge dewatering

    ,

    filter press unit

    Oil Purify Use Cast Iron Filter Press High Temperature Resistance Type





    Our Zhengzhou Toper company produces various models of recessed filter press and plate-frame mechanical filter press, hydraulic filter press, membrane filter press and full-automatic filter press and filter press spare parts. With high quality and best sale-service, having received a good reputation.



    Cast iron filter press is made by high quality cast iron or ductile iron precision casting, with characteristics of high strength to withstand large filtration pressure, high temperature, filtration speed, low cake moisture, unloading, and long service life.



    Applied to chemical industry, like gypsum, thiamine, Glauber's salt, ferric sulfate, copper sulfate, nickel sulfate, potassium sulfide, acetic acid, borax, rubber additives, oils, various resins, etc..





    Features of this cast iron filter press,



    1. Widely be used for dewatering high temperature materials.

    2. Plate and frame of filter press, the heart of filter press

    3. Material of plate and frame: cast iron

    4. Max temperature: up to 300 degree celsius

    5. Resistance to high temperature and high pressure.

    6. Long use life.





    Technical data of this cast iron filter press,



    Type

    Filter area (m2)

    Filter plate size (mm) Cake thickness (mm) Chamber volume (L) Plate number (pcs) Frame number (pcs) Filtrating pressure (Mpa) Weight (kg)

    Dimensions(mm)

    L×W×H

    BQ1/320-25 1 320 x 320 25 13 4 5 1.0 380 1150×760×650
    BQ2/320-25 2 25 9 10 500 1390×760×650
    BQ3/320-25 3 38 14 15 620 1750×760×650
    BQ4/450-25 4 450 x 450 25 51 9 10 0.8 1060 1780×760×650
    BQ6/450-25 6 76 14 15 1160 2055×870×880
    BQ8/450-25 8 102 19 20 1360 235×870×880
    BQ12/450-25 12 152 29 30 1530 2785×870×880
    BQ16/450-25 16 203 39 40 1760 3305×870×880
    XQ4/450-25 4 450 x 450 25 51 9   1.0 960 1900×870×880
    XQ6/450-25 6 76 14 1140 2030×870×880
    XQ8/450-25 8 102 19 1460 2280×870×880
    XQ12/450-25 12 152 29 1960 2780×870×880
    XQ16/450-25 16 203 39 2460 3280×870×880
    BQ20/630-25 20 630 x630 25 298 24 25 0.6 3300 2750×1150×1100
    BQ30/630-25 30 452 37 38 4500 3220×1150×1100
    BQ40/630-25 40 295 49 50 5600 3870×1150×1100
    BY20/630-25 20 298 24 25 3700 2960×1150×1100
    BY30/630-25 30 452 37 38 5000 3610×1150×1100
    BY40/630-25 40 595 49 50 6100 4210×1150×1100
    XQ20/630-25 20 25 248 24   0.8 3400 2600×1100×1100
    XQ30/630-25 30 377 37 4700 3250×1100×1100
    XQ40/630-25 40 496 49 5900 3900×1100×1100
    XY20/630-25 20 248 24   3800 2950×1100×1100
    XY30/630-25 30 377 37 5200 3580×1100×1100
    XY40/630-25 40 496 49 6400 4180×1100×1100





    Why choose us:



    1. Manufacture experience,

    Since 1997, we have done a lot of innovation and improvement in the field of filter and separation equipment. We are specialized in design of the filter press according to clients’ requirments, the delivery time of a filter press can be 7 days(if no stock).

    2. Technology capacity,

    We join and make the standard of filter press industry in China, All of our products have CE certificate, also they will be tested before delivery.

    3. Our superiority,

    We are in the first class in the field of filter press of China, more than 250,000 m2 land area and continue developing. Filter areas of filter press widely ranges from 1 m2 to 500 m2, you can always choose a right type.

    4. Best after-sales,

    Supply professional operation training, Timely trouble shooting in 24 hours, we will try our best to solve your problems on the basis of no influence of your equipment working.
