| Place of Origin: | China |
| Brand Name: | TOPER |
| Certification: | CE |
| Model Number: | XQ30/630-30U |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export standard wooden package. |
| Delivery Time: | 7-10 working days after receive your payment |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union |
| Supply Ability: | 500 sets per month for this chamber filter press |
| Filter Area: | 30m2 | Plate Size: | 630*630mm |
|---|---|---|---|
| Chamber Volume: | 452L | Plate Pieces: | 374pcs |
| Filtrating Pressure: | 0.6Mpa | Compression: | Manual |
| Feeding Method: | Central Feeding | Compress Type: | Jack Screw |
| Filter Cake Discharge Type: | Manual Discharge | Liquid Discharge Type: | Open Flow Or Close Flow |
| Plate Material: | Reinforced Polypropylene | Filter Medium: | Filter Cloth |
| Conditon: | New |

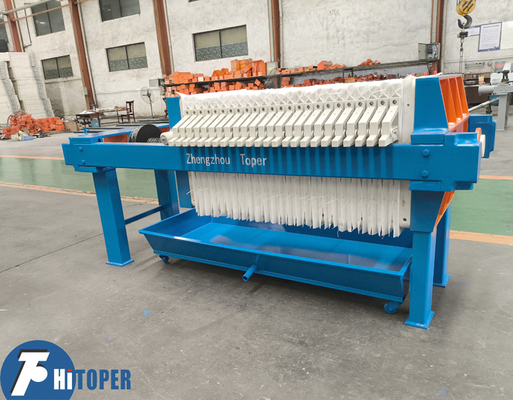

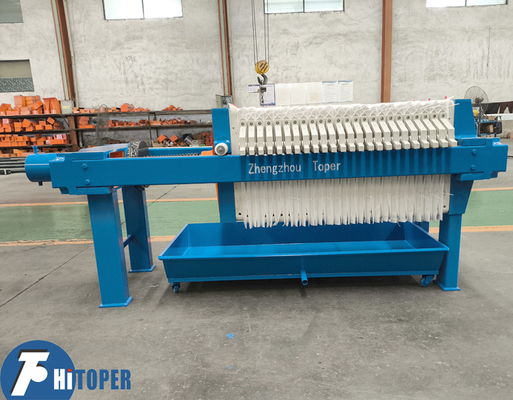

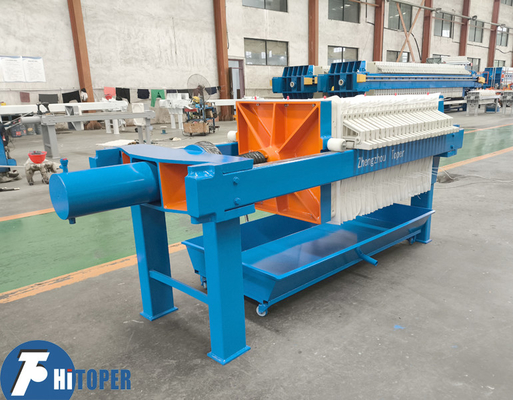

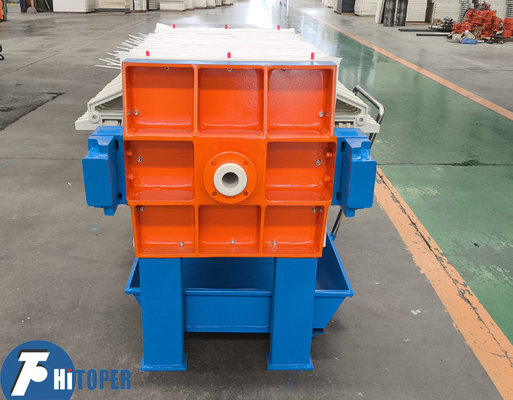

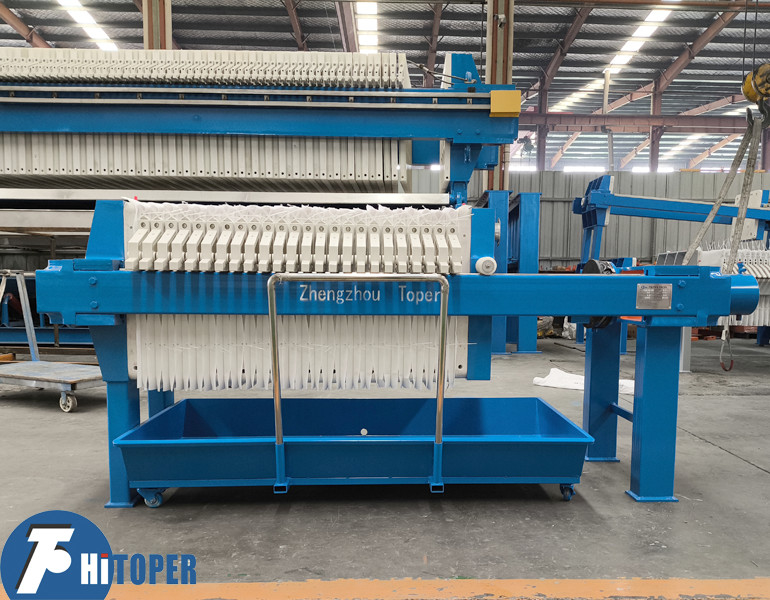

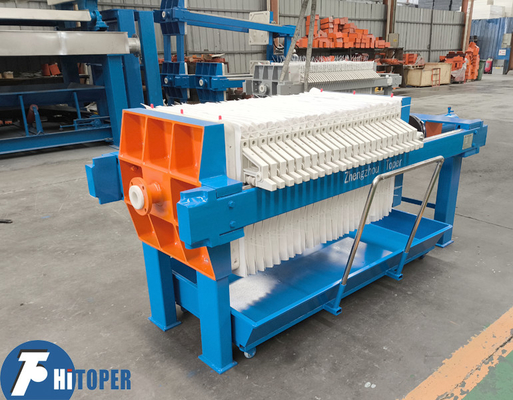

630x630mm Size Recessed Plate Chamber Filter Press,Manual Compress Filter Press Equipment
We manufacture manual operation recessed chamber filter press(jack filter press) with ratchet closing device. The system consists of ratchet mechanism, pinion and gear wheel. By applying a ratchet lever to the pinion shaft the force is transmitted by small pinion to the larger gear-wheel which provides the final lightning on the plate pack.
Characteristics:
The structure is reasonable designed
The capability is steadily and reliable
Easy to control and maintain
It is widely used in areas where solid-liquid separations are needed such as water treatments, sewage processing, etc. It is suitable for small scale filtering areas normally using a low pressure of less than 0.4Mpa.
Basic technical data:
| Type |
Filter area (m2) |
Filter plate size (mm) | Cake thickness (mm) | Chamber volume (L) | Plate number (PCS) |
Filtrating pressure (MPa) |
Weight (kg) |
Dimensions (mm) (L×W×H) |
| XQ1/320-30U | 1 | 320 x 320 | 30 | 15 | 4 | 0.6 | 490 | 1070×570×660 |
| XQ2/320-30U | 2 | 31 | 9 | 528 | 1295×570×660 | |||
| XQ3/320-30U | 3 | 46 | 14 | 550 | 1520×570×660 | |||
| XQ4/450-30U | 4 | 450 x 450 | 60 | 9 | 0.6 | 780 | 1630×800×900 | |
| XQ6/450-30U | 6 | 91 | 14 | 830 | 1880×800×900 | |||
| XQ8/450-30U | 8 | 121 | 19 | 880 | 2130×800×900 | |||
| XQ10/450-30U | 10 | 151 | 24 | 930 | 2380×800×900 | |||
| XQ12/450-30U | 12 | 182 | 29 | 980 | 2630×800×900 | |||
| XQ15/450-30U | 15 | 225 | 36 | 1030 | 2980×800×900 | |||
| XQ16/450-30U | 16 | 243 | 39 | 1050 | 3130×800×900 | |||
| XQ15/630-30U | 15 | 630 x 630 | 226 | 18 | 0.6 | 1257 | 2370×1080×1060 | |
| XQ20/630-30U | 20 | 297 | 24 | 1347 | 2670×1080×1060 | |||
| XQ30/630-30U | 30 | 452 | 37 | 1693 | 3320×1080×1060 | |||
| XQ40/630-30U | 40 | 595 | 49 | 2193 | 4020×1080×1060 |
About our company:
Our Zhengzhou Toper company is the leading supplier of industrial equipment in China, and also the professional exporter and service provider of filter and separation equipment. from the year 2006, we have exported to more than 100 countries, and accuralated lots of practice experience. so we can give you our best products advise and after-sales service.
Our products has passed ISO9001 International Quality Management System Certification and is exported to America, Canada, Chile, Bolivia, Indonesia, Malaysia, Israel, Iran, Egypt, Turkey, Romania, Sweden, Finland, etc. about more than 50 countries and area. We have won good reputation depends on our best qualified products and after-sales service. Warmly welcome new and old friends all over the world to come our company for good cooperation with each other!
Our service:
1. We have professional person on line to advise you the most suitable type of machie according to your requirement.
2. Provide you comprehensive.easy-understanding and detail information and technical data about the machie you interested;solve your confusions or questions about the machine
3. Arrange the schedule if you pay a visit to our factory
4. Send our technical engineer to your area guid the installation,debugging ,training workers and solve the problems if rquired.
Different kinds of of our products as below:
1. Program-controlled automatic filter press
2. Membrane filter press
3. Hydraulic compress filter press
4. Mechanical compress filter press
5. Jack filter press
6. Cast iron plate and frame/chamber filter press
7. Stainless steel plate and frame filter press
8. Round plate filter press
9. Cotton cake filter press
10. Cardboard filter press
11. DY belt filter press
12. DYX high pressure belt filter press
13. DNY rotary drum thickning/dehydrating belt filter press
14. Triple-belt thickning and dehydrating filter press
15. SS type three-foot upper discharge centrifuge
16. SD type three-foot and filter bag hoist discharge centrifuge
17. PD type filter bag hoist discharge centrifuge
18. Centrifuge of up discharge, three foot, clean series SSB, SB
19. SX type manual top discharge centrifuge
20. PS type manual top discharge centrifuge
21. SGZ type automatic scraper bottom discharge centrifuge
22. PGZ type scarper bottom discharge centrifuge
23. LW series decanter centrifuge
24. Tubular centrifuge
25. Multi-layer stainless steel frame filter
26. Bag filter
27. Diatomite filter
28. Filter plate
29. Filter cloth
30. Vacuum disc filter
