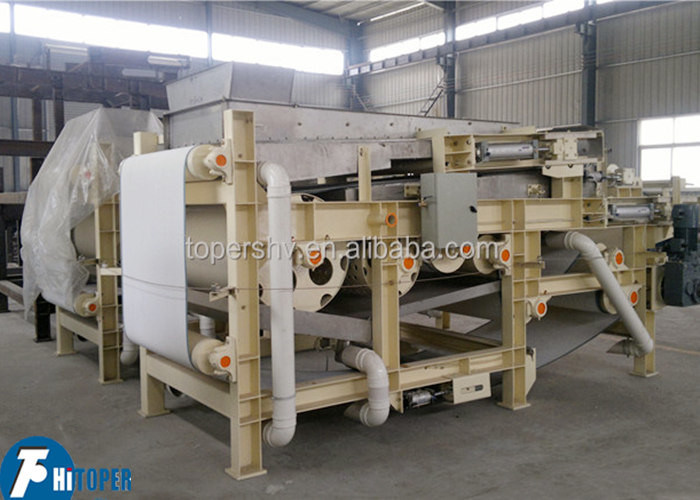

Belt Filter Press with 750mm belt 24 Hours Working Automatic Sludge Dewatering For Coal Washing Industry

Belt Filter Press with 750mm belt 24 Hours Working Automatic Sludge Dewatering For Coal Washing Industry

    • Belt Filter Press with 750mm belt 24 Hours Working Automatic Sludge Dewatering  For Coal Washing Industry
    • Belt Filter Press with 750mm belt 24 Hours Working Automatic Sludge Dewatering  For Coal Washing Industry
  • Belt Filter Press with 750mm belt 24 Hours Working Automatic Sludge Dewatering  For Coal Washing Industry

    Product Details:

    Place of Origin: China
    Brand Name: TOPER
    Certification: CE
    Model Number: DY750

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Standard container
    Delivery Time: about 30 working days after receive your payment
    Payment Terms: L/C, T/T, D/A, D/P, Western Union
    Supply Ability: 10 sets per month for this belt filter press
    Contact Now
    Detailed Product Description
    Filter Belt Width: 750mm Capacity: 6-9m3/h
    Dry Volume: 110-225kg/h Moisture Content: 63-84.5%
    Motor Power: 1.5kw Reference Dimension: 4250*1630*2100mm
    Weight: 2570kg Application: Leather,paper, Printing And Dyeing
    Conditon: New Operation Type: Continuous Automatic Working
    Cake Discharge Type: Automatic Liquid Discharge Type: Automatic
    Voltage: 380V/220V /400-450V/Customized

    Belt Filter Press with 750mm belt 24 Hours Working Automatic Sludge Dewatering For Coal Washing Industry



    Working Principle:



    The material passes through the conveyor, transported to the hopper of the dewatering machine, and evenly laid on the filter belt through the auger. The filter belt is leveled by the height of the material layer with the operation of the equipment, so that the thickness of the material is completely uniform. Then, the upper and lower two ring-shaped filter belts are completely clamped, and the material layer is clamped by the driving roller, and the pair of rollers in the dewatering zone are mechanically pressed for several times to press out a large amount of water. According to the characteristics of the material, the extrusion force is automatically adjusted to meet the customer's requirements for material moisture.




    Advantages:

    1.it adopts advanced technology from Austria and has a good appearance

    2.the structure has a large stiffness , a ready operation and low rise .

    3. it is equipped with advanced concentration preprocessing equipment to flocculate slurry preferably and decrease running cost .

    4. Gravity dewatering zone is equipped with advanced distributing device to scatter material uniformly and decrease running cost .
    5. it has a long wedge - shaped dewatering zone and gravity dewatering zone . it can dehydrate material sufficiently and make sure that the material will not overflow .
    6. Dewatering rollers are arrange in a scientific way . Filtrate is respectively discharged from gravity zone , wedge - shaped zone and squeezing zone without disturbing each other . Dewatering rollers has large diameter and better dewatering effect , they endowed belt filter with high treatment capacity , high efficiency and energy saving .



    Compostion of parts:



    1. Frame

    2. Slurry distribution device

    3. Upper tray of liquid receiving

    4. Dehydration roller system

    5. Squeezing roller system

    6. Tensioning device

    7. Middle tray of liquid receiving

    8. Washing device

    9. Upper adjusting roller

    10. Upper filter belt

    11. Upper scraper

    12. Bottom scraper

    13. Driving device

    14. Bottom filter belt

    15. Bottom adjusting roller

    16. Bottom tray of liquid receiving

     Belt Filter Press with 750mm belt 24 Hours Working Automatic Sludge Dewatering  For Coal Washing Industry





    Belt filter press technical parameters:



    Type

    DY750 DY1000 DY1500 DY2000 DY2500 DY3000
    Filter width(mm) 750 1000 1500 2000 2500 3000

    Capacity Into concentration (s.s.1.5~2.5%)

    6~9 8~12 12~18 16~24 20~30 28~38
    Dry volume(kg/hr) 110~225 150~300 225~450 300~600 375~750 420~950
    Moisture content(%) 63~84.5 63~84.5 63~84.5 63~84.5 63~84.5 63~84.5
    Motor power(HP) 1.5 1.5 1.5 2.2 2.2 2.2

    Reference Dimensions

    (mm)

    L 4250 4250 4250 4250 4250 4250
    W 1630 1880 2380 2920 3420 3920
    H 2100 2100 2100 2100 2100 2100
    Weight(kgs) 2570 2920 3590 4490 5520 6220
