| Place of Origin: | China |
| Brand Name: | TOPER |
| Certification: | CE |
| Model Number: | DL1P1S |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export standard wooden package. |
| Delivery Time: | 10-15 working days after receive your payment |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union |
| Supply Ability: | 100 sets per month for this bag filter housing |
| Filter Area: | 0.25m2 | Max. Flow Rate: | 20m3/h |
|---|---|---|---|
| Working Pressure: | 0.5Mpa | Volume: | 8L |
| Inlet And Outlet: | DN50 | Shell Material: | Stainless Steel |
| Sealing Structure: | Upper Closed Platen Seal | Filter Medium: | Filter Bag |
| Feeding Type: | Side Feeding | Liquid Discharge Method: | Flange Bottom Discharge |
| Solid Discharge Method: | Manual Upper Discharge | Function: | Purification,clarification,extraction,sepration |

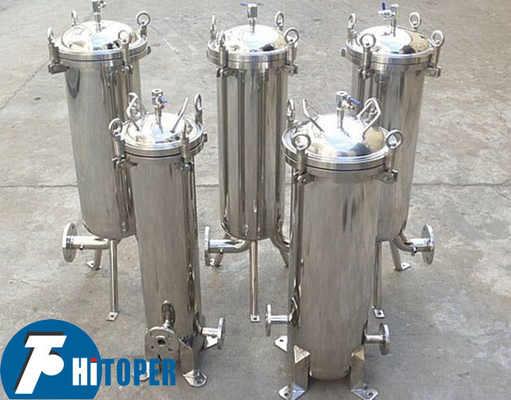

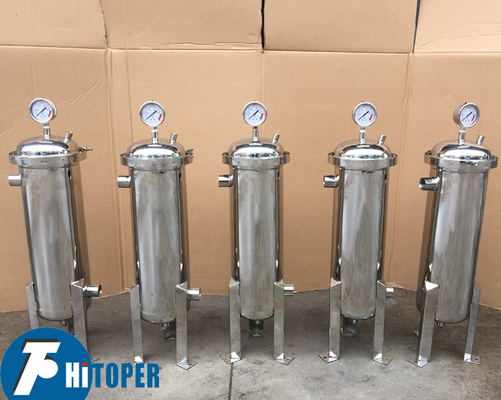

High-efficiency Bag Filter Housing for Solid-liquid Separation
Bag filter housing is a new filtration system, filter bag is supported by the metal basket inside filter, and the liquid flows into the inlet, filtered through the bag out from the outlet , impurities are kept in the bag, replacing the filter bag and then continue to use.

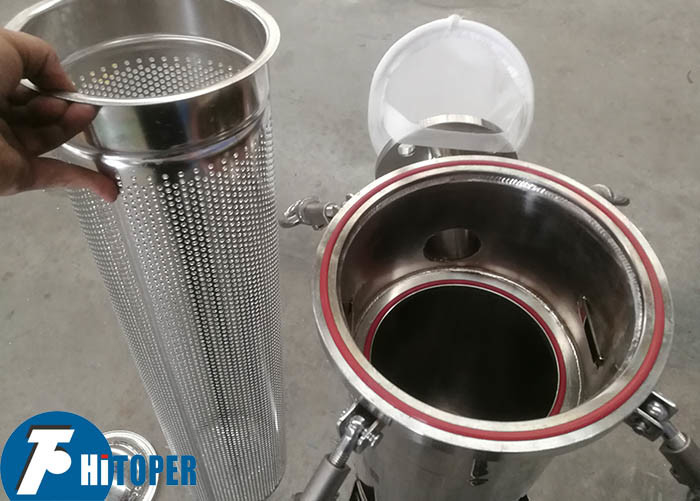

The main parts include the stainless steel shell,metal support basket,PP filter bag.
Bag filter housing features:The Bag filter housing is of large processing capacity, small size, large capacity dirt.
Bag filter system based on the working principle and structure; replacing the filter bag is convenient, and filter is no necessary to clean, saving time and labor.Bag side leakage probability is small, powerfully guarantee filter quality.Filter bag can bear a greater work pressure, small pressure loss, low operation cost, energy saving effect.Filter precision is getting improved , now is reached 0.5μm;Bag filter is widely used , flexible, diverse installation styles.
Structure of the High-efficiency Bag Filter Housing for Solid-liquid Separation
Bag filter housing technical parameters:
|
Model |
Filter area (m2) |
Max. flow rate (m³/h) |
Working pressure (MPa) |
Volume (L) |
Inlet and outlet connection style |
| DL1P1S | 0.25 | 20 | 0.5 | 8.0 | Ф50 |
| DL1P2S | 0.5 | 40 | 0.5 | 17.0 | Ф50 |
| DL1P4S | 0.20 | 18 | 0.5 | 3.8 | Ф20 |
Besides single bag filter housing, also we have multi bag filter housing to satisfy big capacity.
1. Multi bag filter housing is for high flow filter. From 2 to 24 bags,
2. Complete specifications, inlet and outlet flange diameter of 3 to 18’’,
3. The largest single flow is 90-1000m³/h.
4. To provide fast open design, filter bag replacement is very convenient and also applies to occasion of who wants to use long time and then replace the bag .
Packing and delivery :
We provide you reliable and fast package and variety kinds of transportation way to insure you get the goods in time and safely.
The main features and advantages of the single bag water filter:
