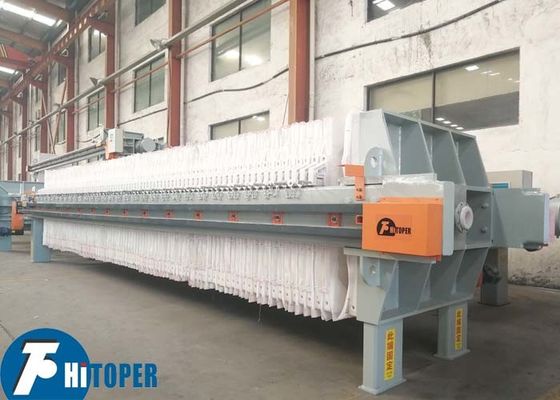

Factory Bottom Price Automatic Closure & Discharge Filter Press Machine

Factory Bottom Price Automatic Closure & Discharge Filter Press Machine

    • Factory Bottom Price Automatic Closure & Discharge Filter Press Machine
    • Factory Bottom Price Automatic Closure & Discharge Filter Press Machine
  • Factory Bottom Price Automatic Closure & Discharge Filter Press Machine

    Product Details:

    Place of Origin: China
    Brand Name: TOPER
    Certification: CE
    Model Number: XZ150/1250-30U

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Best factory price
    Packaging Details: 1*40GP.
    Delivery Time: 20-30 working days after receive your payment
    Payment Terms: L/C, T/T, D/A, D/P, Western Union
    Supply Ability: 30 sets per month for this chamber filter press
    Contact Now
    Detailed Product Description
    Filter Area: 150m2 PP Plate Size: 1250*1250mm
    Filter Chamber Volume: 2200L Filter Number: 55pcs
    Filtrating Pressure: 0.6Mpa Motor Power: 4kw
    Full Weight: 11000kgs Dimension: 6200*1800*1600mm
    Plate Type: Chamber Plate Plate Material: Reinforced Polypropylene
    Plate Color: White Feeding Type: Center Feeding
    Discharge Method: Automatic Filter Function: Solid-liquid Separation
    Pressing Type: Hydraulic Compress Voltage: 380V/220V /400-450V/Customized
    Application: Food,beverage,chemcial,mineral,pharmacy,biological Etc. Conditon: New

    Factory Bottom Price Automatic Closure & Discharge Filter Press Machine



    Our company produces various models of recessed plate and plate-frame mechanical filter press, hydraulic filter press, membrane filter press and full-automatic filter press and filter press spare parts. and it is hot sale for the solid and liquid separation in chemical, medicine, food, metallurgy, refining, non-mining, sewage treatment and so on industries.





    For this automatic chamber filter press, the below available automatic device for your choosing.



    1. Filter cloth auto varicose: with some slurry with high viscosity, and the cake is difficult to automatically fall off, cloth varicose system we design can change angle of the filter cloth into V shape, at the same time the spring connected with cloth vibrates and the cake fall off.

    2. Auto bomb door: during the filtration of the filter press, there are maybe a drip between the filter plates, then the bomb door will collect the leakage, then avoid pollution in the work site, but also avoid the cake moisture increase under the filter press.

    3. Auto cloth washing system: connected with high pressure water pump, when the filter press stops work, or when you need, it will help to wash the cloths and be smooth, so that to recover the filtering speed and extend the usage life.

    4. Belt conveyor: It will placed under the filter press, delivery the filter cake together to one side of the filter press, better for further handle.

    5. Sludge storage bucket. After filtration, the filter cake canbe unloaded down to the matching sludge storage bucket, easy to focus on shipping.





    Features of this automatic chamber filter press.



    1.Close/open filter press automatically.
    2.Fully automatic plate transportation but with safety device.
    3.PP/steel/stainless steel drip tray/bomb door driven by hydraulic cylinder.
    4.Different craftsmanship such as Cake washing,core blow,dry blow,etc. is available.
    5.New and smart PLC control that is real duty-free.
    6.Tailored filter clothes testing only for your project.
    7.Fully automatic filter cloth cleaning.
    8.Drip-tight filter plate packages.
    9.Two-side feed and fast slurry feed can save your cost and time.
    10.Explosion-protection design





    Our filter press technical parameters.

    Type

    Filter area

    (m2)

    Filter plate size (mm)



    Filter cake thickness

    (mm)

    Filter chamber volume

    (L)

    Filter plate number

    (PCS)

    Filtrating pressure

    (MPa)

    Motor power

    (KW)

    Weight

    (Kg)

    Dimension (mm)

    (L×W×H)

    XZ100/1250-30U 100 1250×1250 30 1479 36 0.6 4.0 8307 5020×1800×1600
    XZ120/1250-30U 120 1777 43 9308 5470×1800×1600
    XZ140/1250-30U 140 2094 51 10455 5990×1800×1600
    XZ160/1250-30U 160 2381 58 11492 6450×1800×1600
    XZ180/1250-30U 180 2669 65 12494 6905×1800×1600
    XZ200/1250-30U 200 2965 72 13504 7360×1800×1600
    XZ220/1250-30U 220 3285 80 14652 7880×1800×1600
    XZ250/1250-30U 250 3737 91 16227 8600×1800×1600
    XZ200/1500-30U 200 1500×1500 3025 49 0.6 7.5 20030 6400×2200×1900
    XZ250/1500-30U 250 3739 61 22978 7225×2200×1900
    XZ300/1500-30U 300 4413 74 26026 8130×2200×1900
    XZ350/1500-30U 350 5210 86 29220 8570×2200×1900
    XZ400/1500-30U 400 6007 99 32574 9880×2200×1900
    XZ450/1500-30U 450 6743 111 35586 10820×2200×1900
    XZ500/1500-30U 500 7478 123 38606 11560×2200×1900
    XZ600/2000-30U 600 2000×2000 40 12000 85 0.6 7.5 49000 11100×3000×2500
    XZ700/2000-30U 700 14000 99 53000 12200×3000×2500
    XZ800/2000-30U 800 16000 107 57000 13350×3000×2500
    XZ900/2000-30U 900 18000 127 61000 14500×3000×2500
    XZ1000/2000-30U 1000 20000 141 65000 15600×3000×2500





    Our service:



    1.We have professional person on line to provide you comprehensive.easy-understanding and detail information and technical data about the machine you interested;solve your confusions or questions about the machine

    2.Advise you the most suitable type of machine according to your requirement for your reference

    3.Arrange the schedule if you pay a visit to our factory.

    4.Send our technical engineer to your country for installation ,operation test ,slove questions and so on if required.
