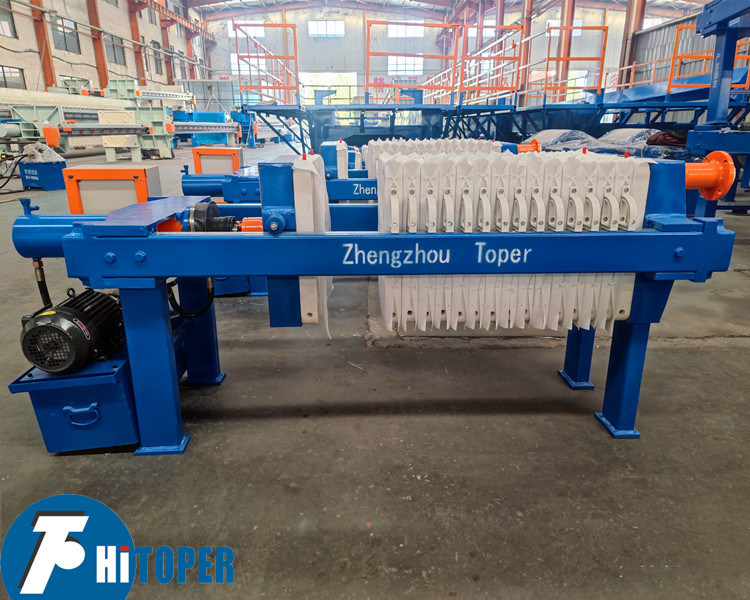

450x450mm Plate Hydraulic Compress Industrial Filter Press Function of Solid-Liquid Separation

450x450mm Plate Hydraulic Compress Industrial Filter Press Function of Solid-Liquid Separation

    • 450x450mm Plate Hydraulic Compress Industrial Filter Press Function of Solid-Liquid Separation
    • 450x450mm Plate Hydraulic Compress Industrial Filter Press Function of Solid-Liquid Separation
  • 450x450mm Plate Hydraulic Compress Industrial Filter Press Function of Solid-Liquid Separation

    Product Details:

    Place of Origin: China
    Brand Name: TOPER
    Certification: CE
    Model Number: XY6/450-30U

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: Best factory price
    Packaging Details: Export standard wooden package.
    Delivery Time: 10-15 working days after receive your payment
    Payment Terms: L/C, T/T, D/A, D/P, Western Union
    Supply Ability: 200 sets per month for this industrial filter press
    Contact Now
    Detailed Product Description
    Filtration Area: 6square Meter Plate Externalr Size: 505*505mm
    Filter Chamber Volume: 91L Filter Plate Number: 14pcs
    Filtrating Pressure: 0.6Mpa Cake Discharge: Two Workers By Hand Operation
    Motor Power: 2200w Compress Type: Hydraulic System
    Voltage: 380V/220V /400-450V/Customized Feeding Method: Central Feeding
    Plate Material: Reinforced Polypropylene Liquid Discharge Type: Open Flow Or Close Flow
    Filter Cake Discharge Type: Manual Discharge Filter Medium: Filter Cloth
    Conditon: New

    High quality water filter press with PP plate used in sludge treatment



    This filter press equipment is used in solid-liquid (solid content is better of 5%-50%) separation of varipis suspension. widely used in mining, chemical. metallurgy, medicine, textile, food, inorhanic salt and other industries.



    Hydraulic station of this filter press equipment: 1. Hydraulic unit, carbon steel bending welding and sealing. A.Air filters external oil pumps of Shanghai Dazhong brand, with a better cooling effect and easy maintenance B.Hydraulic valves of Shanghai Huadao brand. C.High pressure oil pipe (36Mpa, 1.5m) and low pressure oil pipe (22.4Mpa, 2m), China standard soft connection.

    2. Hydraulic cylinder, welded using material 27SiMn seamless steel pipe, Inner diameter and stroke is Φ120X400, pressing pressure is 18-20MPa.

    3. Piston rod, Medium-frequency hardening with 45# steel, the surface hardness can be HRC48-50, and there is a protect cover outside.

    Main Beam of this industrial filter press: Material of high quality carbon steel Q345 ( Length & width & thickness, 120×60×6mm rectangular tube), box welded structural design, automatic submerged arc welding process with weld smooth and beautiful. Still processed with sand blasting to remove rust and oxide skin, then painted by epoxy primer to get higher intensity and corrosion resistance, together with last protection of acrylic polyester anti-corrosion paint spraying.



    How to operate a filter press,


    The liquid solid mixture is pumped into the filter press, which is made up of a number of recessed filter plates forming chambers. The plates are supported in a fabricated steel frame and is held closed by a force exerted from a hydraulic ram mounted in the frame work at the end of the machine.

    Each filter plate is covered by a filter cloth that retains the solid particles, but allowing the liquid to pass through and exit through the ports in the filter plate.

    The particles retained gradually build up on the surface of the filter media and after a period of time eventually form a solid cake.

    As the cake forms the pressure within the filter press the pressure rises as the filtrate has to pass through the already partially formed cake to exit the chamber. It becomes increasingly more difficult to continue pumping as the press is unable to accept more solids. At this point the feed pump is stroking infrequently and the filtrate flow from the filter press has considerably reduced or completely stopped.

    At this point or at a predetermined filtration time or pressure being achieved the cycle is terminated and the fully formed filter cake is discharged.



    Technical parameter of this filter press equipment:



    Filter area


    Filter plate size


    Filter cake thickness


    Filter chamber volume


    Filter plate number


    Filtrating pressure


    Motor power




    Dimension (mm)


    XY4/450-30U 4 450×450 30 60 9 0.6 2.2 860 1950×700×900
    XY6/450-30U 6 91 14 910 2200×700×900
    XY8/450-30U 8 121 19 960 2450×700×900
    XY10/450-30U 10 151 24 1010 2700×700×900
    XY12/450-30U 12 182 29 1060 2950×700×900
    XY15/450-30U 15 225 36 1130 3300×700×900
    XY16/450-30U 16 243 39 1160 3450×700×900
    XY15/630-30U 15 630×630 226 18 1725 2640×900×1100
    XY20/630-30U 20 297 24 1993 3940×900×1100
    XY30/630-30U 30 452 37 2360 3590×900×1100
    XY40/630-30U 40 595 49 2788 4300×900×1100
    XY30/800-30U 30 800×800 460 23 2170 3700×1400×1300
    XY40/800-30U 40 595 30 2450 4300×1400×1300
    XY50/800-30U 50 748 38 2700 4840×1400×1300
    XY60/800-30U 60 902 46 2980 5440×1400×1300
    XY70/800-30U 70 1056 54 3250 6040×1400×1300
    XY30/870-30U 30 870×870 460 23 2580 3180×1200×1300
    XY40/870-30U 40 595 30 2925 3570×1200×1300
    XY50/870-30U 50 748 38 3318 4110×1200×1300
    XY60/870-30U 60 902 46 3712 4550×1200×1300
    XY70/870-30U 70 1056 54 4106 4990×1200×1300
    XY80/870-30U 80 1210 62 4561 5430×1200×1300



    All of our products-filter press machine as below:


    1. Program-controlled automatic filter press

    2. Membrane filter press

    3. Hydraulic compress filter press

    4. Mechanical compress filter press

    5. Jack filter press

    6. Cast iron plate and frame/chamber filter press

    7. Stainless steel plate and frame filter press

    8. Round plate filter press

    9. Cotton cake filter press

    10. Cardboard filter press

    11. DY belt filter press

    12. DYX high pressure belt filter press

    13. DNY rotary drum thickning/dehydrating belt filter press

    14. Triple-belt thickning and dehydrating filter press
