| Place of Origin: | China |
| Brand Name: | TOPER |
| Certification: | CE |
| Model Number: | BY20/630-25 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export standard wooden package. |
| Delivery Time: | 30-40 working days after receive your payment |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union |
| Supply Ability: | 20 sets per month |
| Filtration Area: | 20m2 | Filter Plate Size: | 630*630mm |
|---|---|---|---|
| Filter Chamber Volume: | 298L | Plate Number: | 24pcs |
| Frame Number: | 25 | Motor Power: | 2.2kw |
| Main Feature: | To Bear High Temperature To Be 300C. | Construction: | Cast Iron. |
| Voltage: | 220V/380V/400V/Customized | Usage: | Oil Cleaner |
| Filtrareting Pressu: | 0.6Mpa | Weight: | 3700kg |
| Dimensions: | 2960*1150*1100mm | Filter Plate Material: | Cast Iron Or Ductile Iron |
| Application: | Petrochemical,metallurgy,oil,ceramics Industry | Function: | Dehydration,separaiton And Concentration |
| Structure: | Plate-frame Type | Conditon: | New |

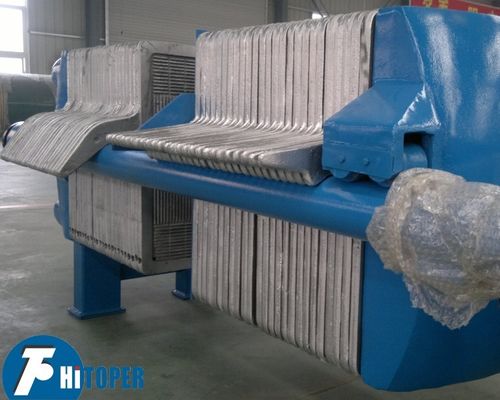

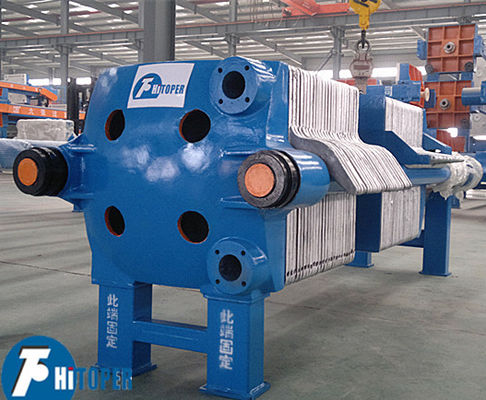

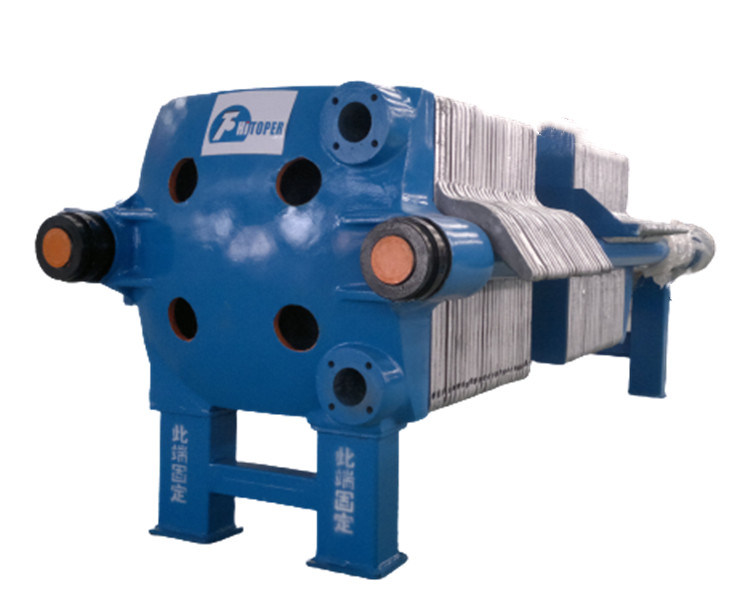

Plate And Frame Filter Press Cast Iron Filter Press With 630x 630mm Cast Iron Filter Plate
This flter press machine is widely used in new condition olive oil,palm oil,cosmetic oil, and various types waste oil, is made of high quality steel and cast iron, which can bear high pressure, high temperature, filtration speed, low cake moisture, unloading fast and so on. Best suitable for Sunflower oil,olive oil, cottonseed oil palm oil,cosmetic oil industry.
Our Zhengzhou Toper company produces various models of recessed filter press and plate-frame mechanical filter press, hydraulic filter press, membrane filter press and full-automatic filter press and filter press spare parts. With high quality and best sale-service, having received a good reputation.
Features of this cast iron filter press,
1. Widely be used for dewatering high temperature materials.
2. Plate and frame of filter press, the heart of filter press
3. Material of plate and frame: cast iron
4. Max temperature: up to 300 degree celsius
5. Resistance to high temperature and high pressure.
6. Long use life.
Technical data of this cast iron filter press,
|
Type |
Filter area (m2) |
Filter plate size (mm) | Cake thickness (mm) | Chamber volume (L) | Plate number (pcs) | Frame number (pcs) | Filtrating pressure (Mpa) | Weight (kg) |
Dimensions(mm) L×W×H |
| BQ1/320-25 | 1 | 320 x 320 | 25 | 13 | 4 | 5 | 1.0 | 380 | 1150×760×650 |
| BQ2/320-25 | 2 | 25 | 9 | 10 | 500 | 1390×760×650 | |||
| BQ3/320-25 | 3 | 38 | 14 | 15 | 620 | 1750×760×650 | |||
| BQ4/450-25 | 4 | 450 x 450 | 25 | 51 | 9 | 10 | 0.8 | 1060 | 1780×760×650 |
| BQ6/450-25 | 6 | 76 | 14 | 15 | 1160 | 2055×870×880 | |||
| BQ8/450-25 | 8 | 102 | 19 | 20 | 1360 | 235×870×880 | |||
| BQ12/450-25 | 12 | 152 | 29 | 30 | 1530 | 2785×870×880 | |||
| BQ16/450-25 | 16 | 203 | 39 | 40 | 1760 | 3305×870×880 | |||
| XQ4/450-25 | 4 | 450 x 450 | 25 | 51 | 9 | 1.0 | 960 | 1900×870×880 | |
| XQ6/450-25 | 6 | 76 | 14 | 1140 | 2030×870×880 | ||||
| XQ8/450-25 | 8 | 102 | 19 | 1460 | 2280×870×880 | ||||
| XQ12/450-25 | 12 | 152 | 29 | 1960 | 2780×870×880 | ||||
| XQ16/450-25 | 16 | 203 | 39 | 2460 | 3280×870×880 | ||||
| BQ20/630-25 | 20 | 630 x630 | 25 | 298 | 24 | 25 | 0.6 | 3300 | 2750×1150×1100 |
| BQ30/630-25 | 30 | 452 | 37 | 38 | 4500 | 3220×1150×1100 | |||
| BQ40/630-25 | 40 | 295 | 49 | 50 | 5600 | 3870×1150×1100 | |||
| BY20/630-25 | 20 | 298 | 24 | 25 | 3700 | 2960×1150×1100 | |||
| BY30/630-25 | 30 | 452 | 37 | 38 | 5000 | 3610×1150×1100 | |||
| BY40/630-25 | 40 | 595 | 49 | 50 | 6100 | 4210×1150×1100 | |||
| XQ20/630-25 | 20 | 25 | 248 | 24 | 0.8 | 3400 | 2600×1100×1100 | ||
| XQ30/630-25 | 30 | 377 | 37 | 4700 | 3250×1100×1100 | ||||
| XQ40/630-25 | 40 | 496 | 49 | 5900 | 3900×1100×1100 | ||||
| XY20/630-25 | 20 | 248 | 24 | 3800 | 2950×1100×1100 | ||||
| XY30/630-25 | 30 | 377 | 37 | 5200 | 3580×1100×1100 | ||||
| XY40/630-25 | 40 | 496 | 49 | 6400 | 4180×1100×1100 |
Why choose us:
1. Manufacture experience,
Since 1997, we have done a lot of innovation and improvement in the field of filter and separation equipment. We are specialized in design of the filter press according to clients’ requirments, the delivery time of a filter press can be 7 days(if no stock).
2. Technology capacity,
We join and make the standard of filter press industry in China, All of our products have CE certificate, also they will be tested before delivery.
3. Our superiority,
We are in the first class in the field of filter press of China, more than 250,000 m2 land area and continue developing. Filter areas of filter press widely ranges from 1 m2 to 500 m2, you can always choose a right type.
4. Best after-sales,
Supply professional operation training, Timely trouble shooting in 24 hours, we will try our best to solve your problems on the basis of no influence of your equipment working.
