Home ProductsPlate and Frame Filter

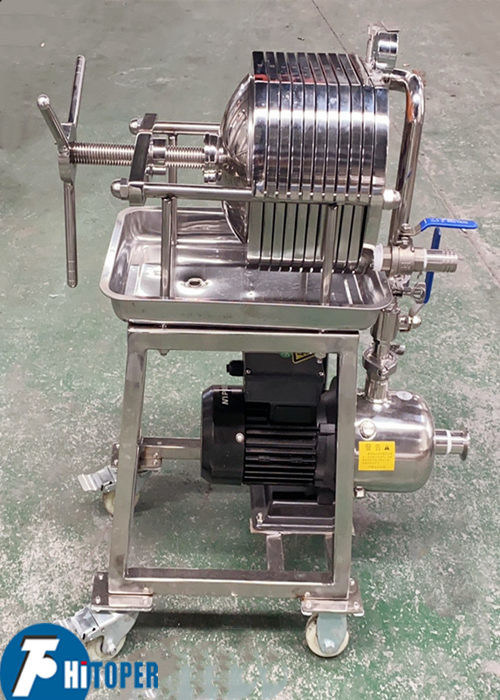

SS304/SS316L Plate and Frame Filter for Brewery Brewing & Beverage Factory Mineral Water

SS304/SS316L Plate and Frame Filter for Brewery Brewing & Beverage Factory Mineral Water

SS304/SS316L Plate and Frame Filter for Brewery Brewing & Beverage Factory Mineral Water

Product Details:

Place of Origin: China
Brand Name: TOPER
Certification: CE
Model Number: DZCR200-10

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD1200/SET
Packaging Details: Export standard wooden package.
Delivery Time: about 15-20working days after receive your payment
Payment Terms: L/C, T/T, D/A, D/P, Western Union
Supply Ability: 200 sets per month for this multi-layer plate and frame filter
Contact Now
Detailed Product Description
Filter Area: 0.34 Filter Plate And Number Number: 10
Filtrating Pressure: 0.15Mpa Motor Power: 0.37kw
Material: Stainless Steel Water Flow: 2t/h
Dimension: 650*400*700mm Function: Purification,clarification,extraction,separation
Application Area: Food,oil,chemical,beverage Etc. Pressing Type: Manual Screw Jack Compress
Feeding Method: Pump Feeding Liquid Discharge Method: Automatic
Filter Medium: Filter Paper,filter Cloth,filter Membrane

DZCR200-10 SS304 / SS316L Stainless Steel Filter Machine For Edible Oil Refinery ​​ ​



Working Principle
The suspended solution is pumped into filter chamber, under the feeding pressure, the filtrate passs through the filter media and then discharged from the outlet. The solid will becomes to filter cakes. Thus realize solid liquid separation.


The stainless steel plate and frame filter machine integrates rough filtration, precision filtration and ultrafiltration into one. According to customer's different demand for output product, different filter medium will be chosen. Different filter medium achieves decarburization, clarification, degerming etc. It can also be used for removing water and getting the debris.
It is widely used in hospital preparations, factory oral liquid production, brewery brewing, beverage factory mineral water filtration, and liquid clarification filtration, solid-liquid suspension of filter residue filtration and gas purifying filtration for departments of light industry, chemical industry, metallurgy, electronics, environmental protection.
It has novel and compact structure, beautiful appearance, easy operation, durable quality and wide application scope.

SS304/SS316L Plate and Frame Filter for Brewery Brewing & Beverage Factory Mineral Water


Technical parameters of the Multi-layer Stainless Steel Plate And Frame Filter ​:






( m2)

The size of filter material (mm)

Filter precision (μm)

Filtration pressure


Water flow


Motor power


Overall dimension (mm)


DZCR-100 10 0.078 Ф100 0.8 0.15 0.8 0.55 600×300×600
DZCR-150 10 0.17 Ф150 0.8 0.15 1.5 0.75 650×380×650
DZCR-200 10 0.34 Ф200 0.8 0.15 2 1.1 650×400×700
DZCR-300 10 0.7 Ф300 0.8 0.15 4 1.1 700×500×800
DZCR-400 10 1.25 Ф400 0.8 0.15 6 1.1 900×600×1000
DZCR-400 16 2 Ф400 0.8 0.15 9 1.5 1000×600×1000
DZCR-400 20 2.5 Ф400 0.8 0.2 10 1.5 1100×600×1000
DZCR-400 32 4 Ф400 0.8 0.3 13 2.2 1320×600×1000


All of our products:


1. Program-controlled automatic filter press

2. Membrane filter press

3. Hydraulic compress filter press

4. Mechanical compress filter press

5. Jack filter press

6. Cast iron plate and frame/chamber filter press

7. Stainless steel plate and frame filter press

8. Round plate filter press

9. Cotton cake filter press

10. Cardboard filter press

11. DY belt filter press

12. DYX high pressure belt filter press

13. DNY rotary drum thickning/dehydrating belt filter press

14. Triple-belt thickning and dehydrating filter press

15. SS type three-foot upper discharge centrifuge

16. SD type three-foot and filter bag hoist discharge centrifuge

17. PD type filter bag hoist discharge centrifuge

18. Centrifuge of up discharge, three foot, clean series SSB, SB

19. SX type manual top discharge centrifuge

20. PS type manual top discharge centrifuge

21. SGZ type automatic scraper bottom discharge centrifuge

22. PGZ type scarper bottom discharge centrifuge

23. LW series decanter centrifuge

24. Tubular centrifuge

25. Multi-layer stainless steel frame filter

26. Bag filter

27. Diatomite filter

28. Filter late

29. Filter cloth

30. Vacuum disc filter
