| Place of Origin: | China |
| Brand Name: | TOPER |
| Certification: | CE |
| Model Number: | DZCR200-10 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD1200/SET |
| Packaging Details: | Export standard wooden package. |
| Delivery Time: | about 20 working days after receive your payment |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union |
| Supply Ability: | 200 sets per month for this multi-layer plate and frame filter |
| Filter Area: | 0.34 | Filter Plate And Number Number: | 10 |
|---|---|---|---|
| Filtrating Pressure: | 0.15Mpa | Motor Power: | 0.37kw |
| Material: | Stainless Steel | Water Flow: | 2t/h |
| Dimension: | 650*400*700mm | Function: | Purification,clarification,extraction,separation |
| Application Area: | Food,oil,chemical,beverage Etc. | Pressing Type: | Manual Screw Jack Compress |
| Feeding Method: | Pump Feeding | Liquid Discharge Method: | Automatic |
| Filter Medium: | Filter Paper,filter Cloth,filter Membrane |

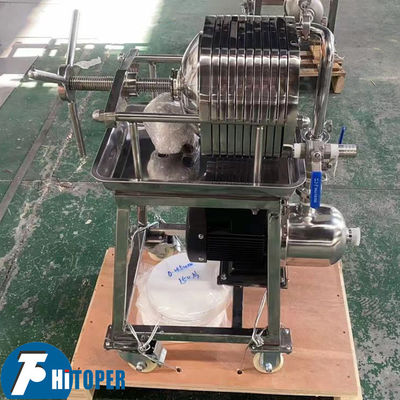

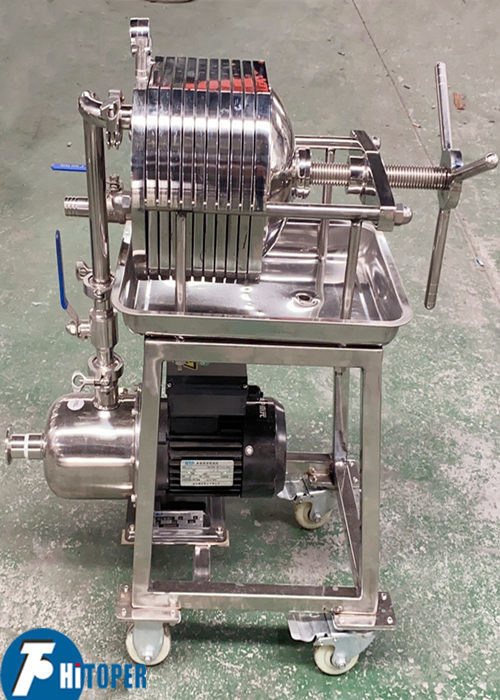

Liquid Honey Filtration Multi-Layer Stainless Steel Filter Machine With Centrifugal Pump
This multi-layer plate and frame filter is used for various suspension of solid-liquid separation with a wide range of applied in medicine, food, chemical, environmental protection, water treatment, electronic, textile, electroplating and other related industries.
Advantages:
1. Plates and frame are S.S.304 material. It meets the food degree.
2. It can ensure high pressure and temperature so that it can be used in more fields, get lowest moisture and most output.
3. Manual Jack closing is practical and cost saving, basically ZERO running cost.
4. Plate and frame structure is designed for easy operation and maintenance.
5. The flatness of the filter plate is lower than 25μm. It can perfectly avoid leakage.
6. Every plate is tested under high closing pressure 21 MPa.
7. All structure is also coated by S.S.304 to make it easy to clean and serves longer.
8. Main beam is made of high quality SS304 with sand blasting processing and it is of high intensity and corrosion resisting.
9. All beams are produced by making use of submerged arc auto welding technology.
10. The filter cloth is pure cotton material so it is non-toxic, odourless.
Technical parameters of the Multi-layer Stainless Steel Plate And Frame Filter :
|
Model |
Layer |
Filter area ( m2) |
The size of filter material (mm) |
Filter precision (μm) |
Filtration pressure (MPa) |
Water flow (t/h) |
Motor power (KW) |
Overall dimension (mm) (L×W×H) |
| DZCR-100 | 10 | 0.078 | Ф100 | 0.8 | 0.15 | 0.8 | 0.37 | 600×300×600 |
| DZCR-150 | 10 | 0.17 | Ф150 | 0.8 | 0.15 | 1.5 | 0.37 | 650×380×650 |
| DZCR-200 | 10 | 0.34 | Ф200 | 0.8 | 0.15 | 2 | 0.37 | 650×400×700 |
| DZCR-300 | 10 | 0.7 | Ф300 | 0.8 | 0.15 | 4 | 0.37 | 700×500×800 |
| DZCR-400 | 10 | 1.25 | Ф400 | 0.8 | 0.15 | 6 | 0.55 | 900×600×1000 |
| DZCR-400 | 16 | 2 | Ф400 | 0.8 | 0.15 | 9 | 0.75 | 1000×600×1000 |
| DZCR-400 | 20 | 2.5 | Ф400 | 0.8 | 0.2 | 10 | 1.1 | 1100×600×1000 |
| DZCR-400 | 32 | 4 | Ф400 | 0.8 | 0.3 | 13 | 1.8 | 1320×600×1000 |
All of our products:
1. Program-controlled automatic filter press
2. Membrane filter press
3. Hydraulic compress filter press
4. Mechanical compress filter press
5. Jack filter press
6. Cast iron plate and frame/chamber filter press
7. Stainless steel plate and frame filter press
8. Round plate filter press
9. Cotton cake filter press
10. Cardboard filter press
11. DY belt filter press
12. DYX high pressure belt filter press
13. DNY rotary drum thickning/dehydrating belt filter press
14. Triple-belt thickning and dehydrating filter press
15. SS type three-foot upper discharge centrifuge
16. SD type three-foot and filter bag hoist discharge centrifuge
17. PD type filter bag hoist discharge centrifuge
18. Centrifuge of up discharge, three foot, clean series SSB, SB
19. SX type manual top discharge centrifuge
20. PS type manual top discharge centrifuge
21. SGZ type automatic scraper bottom discharge centrifuge
22. PGZ type scarper bottom discharge centrifuge
23. LW series decanter centrifuge
24. Tubular centrifuge
25. Multi-layer stainless steel frame filter
26. Bag filter
27. Diatomite filter
28. Filter late
29. Filter cloth
30. Vacuum disc filter
