|Place of Origin:||China|
|Minimum Order Quantity:||Negotiable|
|Packaging Details:||Export standard wooden package.|
|Delivery Time:||about 15-20working days after receive your payment|
|Payment Terms:||L/C, T/T, D/A, D/P, Western Union|
|Supply Ability:||100 sets per month for this multi-layer plate and frame filter|
|Filter Area:||0.34||Filter Plate And Number Number:||10|
|Filtrating Pressure:||0.15Mpa||Motor Power:||0.37kw|
|Material:||Stainless Steel||Water Flow:||2t/h|
|Application Area:||Food,oil,chemical,beverage Etc.||Pressing Type:||Manual Screw Jack Compress|
|Feeding Method:||Pump Feeding||Liquid Discharge Method:||Automatic|
|Filter Medium:||Filter Paper,filter Cloth,filter Membrane|

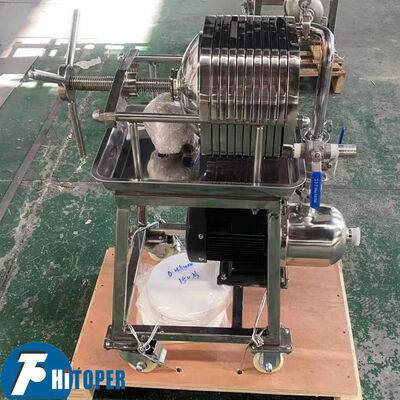

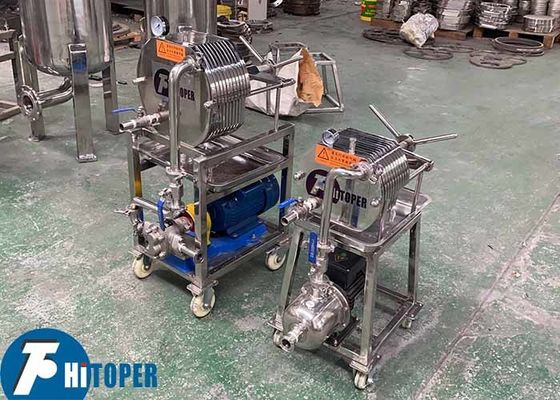

Multilayer Stainless Steel 304 Frame Filter SS304 Filter Plate Juice Filter In food industry
This multi-layer plate and frame filter is used for various suspension of solid-liquid separation with a wide range of applied in medicine, food, chemical, environmental protection, water treatment, electronic, textile, electroplating and other related industries.
The structure is closed, and uses the two-sided trawl doors, can make return washing process, makes the membrane without the residue to separate the thick and thin filtration, according to needs of flow capacity, to increase or reduce layers such characteristics.
The main parts of the plate and frame filter include the high quality stainless steel plate and frame,which formed the chamber and keep the solid phase hold in it.The feeding pump and motor which fixed on the filter machine and function of pumping the treating material into the machine .The filter medium which can be filter cloth,filter membrane ,filter paper .
Suspension goes into the filter room with the help of a pump , due to pressure, the filtrate through the filter layer and the membrane or other filter, is discharged out of fluid discharge outlet, the residues were kept in the room formed by plate and frame, to achieve solid-liquid separation.
Technical parameters of the Multi-layer Stainless Steel Plate And Frame Filter :
The size of filter material (mm)
Filter precision (μm)
Overall dimension (mm)
Why choose us:
1. Manufacture experience,
Since 1997, we have done a lot of innovation and improvement in the field of filter and separation equipment. We are specialized in design of the filter press according to clients’ requirments, the delivery time of a filter press can be 7 days(if no stock).
2. Technology capacity,
We join and make the standard of filter press industry in China, All of our products have CE certificate, also they will be tested before delivery.
3. Our superiority,
We are in the first class in the field of filter press of China, more than 250,000 m2 land area and continue developing. Filter areas of filter press widely ranges from 1 m2 to 500 m2, you can always choose a right type.
4. Best after-sales,
Supply professional operation training, Timely trouble shooting in 24 hours, we will try our best to solve your problems on the basis of no influence of your equipment working.
All of our products:
1. Program-controlled automatic filter press
2. Membrane filter press
3. Hydraulic compress filter press
4. Mechanical compress filter press
5. Jack filter press
6. Cast iron plate and frame/chamber filter press
7. Stainless steel plate and frame filter press
8. Round plate filter press
9. Cotton cake filter press
10. Cardboard filter press
11. DY belt filter press
12. DYX high pressure belt filter press
13. DNY rotary drum thickning/dehydrating belt filter press
14. Triple-belt thickning and dehydrating filter press
15. SS type three-foot upper discharge centrifuge
16. SD type three-foot and filter bag hoist discharge centrifuge
17. PD type filter bag hoist discharge centrifuge
18. Centrifuge of up discharge, three foot, clean series SSB, SB
19. SX type manual top discharge centrifuge
20. PS type manual top discharge centrifuge
21. SGZ type automatic scraper bottom discharge centrifuge
22. PGZ type scarper bottom discharge centrifuge
23. LW series decanter centrifuge
24. Tubular centrifuge
25. Multi-layer stainless steel frame filter
26. Bag filter
27. Diatomite filter
28. Filter late
29. Filter cloth
30. Vacuum disc filter
