|Place of Origin:||China|
|Minimum Order Quantity:||Negotiable|
|Packaging Details:||Export standard wooden package.|
|Delivery Time:||about 15-20working days after receive your payment|
|Payment Terms:||L/C, T/T, D/A, D/P, Western Union|
|Supply Ability:||100 sets per month for this multi-layer plate and frame filter|
|Filter Area:||0.34||Filter Plate And Number Number:||10|
|Filtrating Pressure:||0.15Mpa||Motor Power:||0.37kw|
|Material:||Stainless Steel||Water Flow:||2t/h|
|Application Area:||Food,oil,chemical,beverage Etc.||Pressing Type:||Manual Screw Jack Compress|
|Feeding Method:||Pump Feeding||Liquid Discharge Method:||Automatic|
|Filter Medium:||Filter Paper,filter Cloth,filter Membrane|
New Product Launches Juice Filter, Stainless Steel 304 Plate and Frame Filter With SS304 Material
This multi-layer plate and frame filter is used for various suspension of solid-liquid separation with a wide range of applied in medicine, food, chemical, environmental protection, water treatment, electronic, textile, electroplating and other related industries.
The structure is closed, and uses the two-sided trawl doors, can make return washing process, makes the membrane without the residue to separate the thick and thin filtration, according to needs of flow capacity, to increase or reduce layers such characteristics.

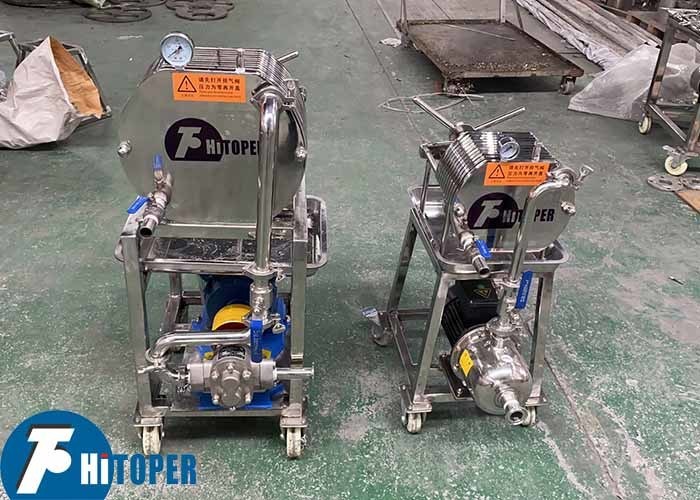

The main parts of the plate and frame filter include the high quality stainless steel plate and frame,which formed the chamber and keep the solid phase hold in it.The feeding pump and motor which fixed on the filter machine and function of pumping the treating material into the machine .The filter medium which can be filter cloth,filter membrane ,filter paper .
Suspension goes into the filter room with the help of a pump , due to pressure, the filtrate through the filter layer and the membrane or other filter, is discharged out of fluid discharge outlet, the residues were kept in the room formed by plate and frame, to achieve solid-liquid separation.
Why choose us:
1. Manufacture experience,
Since 1997, we have done a lot of innovation and improvement in the field of filter and separation equipment. We are specialized in design of the filter press according to clients’ requirments, the delivery time of a filter press can be 7 days(if no stock).
2. Technology capacity,
We join and make the standard of filter press industry in China, All of our products have CE certificate, also they will be tested before delivery.
3. Our superiority,
We are in the first class in the field of filter press of China, more than 250,000 m2 land area and continue developing. Filter areas of filter press widely ranges from 1 m2 to 500 m2, you can always choose a right type.
4. Best after-sales,
Supply professional operation training, Timely trouble shooting in 24 hours, we will try our best to solve your problems on the basis of no influence of your equipment working.
Technical parameters of the Multi-layer Stainless Steel Plate And Frame Filter :
The size of filter material (mm)
Filter precision (μm)
Overall dimension (mm)
